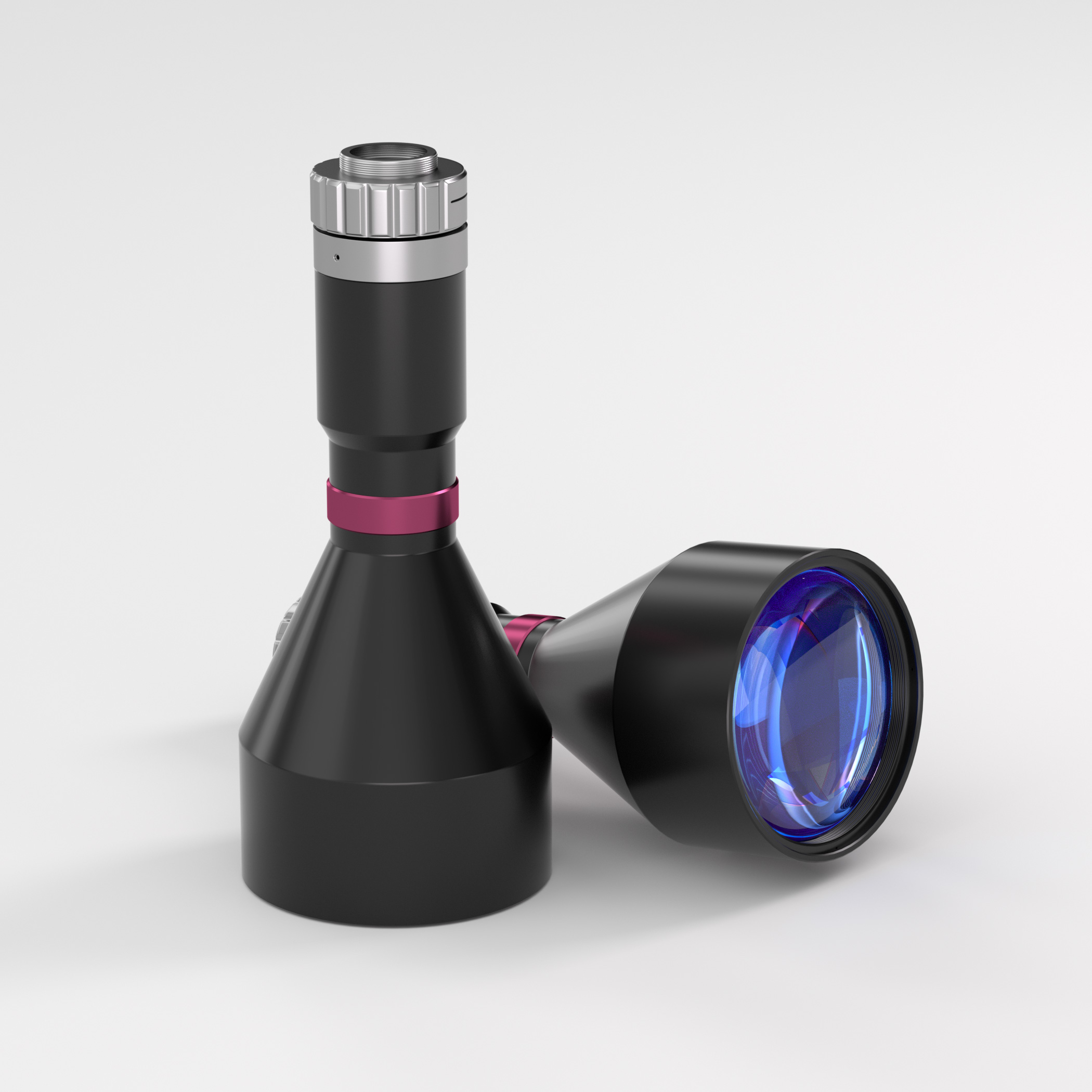

1/2" 0.12X Telecentric Lenses | WWK012-330-120-AL COOLENS®
$1,157.00 USD
-
Return & Refund Policy
-
Fast Delivery
-
One-on-one service
-
Reliable Manufacturer
-
Worldwide shipping
-
Multiple payment methods
| Model NO. | WWK012-330-120-AL | Image Circle Diameter (Φmm) | 8(1/2") | ||||
| Magnification(x) | 0.12 | Working Distance(mm) | 330±2 | ||||
| NA | 0.0086 | Type | Telecentric | ||||
| Mount | C | Best Aperture(f/#) | 7 | ||||
| MTF30 (lp/mm) | >135 | Object Resolution(μm) | 39.1 | ||||
| Depth of Field(mm) | ±19.4@F7 | Distortion Typical(% max) | <0.05 | ||||
| Telecentricity Typical (°max) | <0.1 | Length (mm) | 192.6 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 8 | ||||
| Filter Screw Size | M80x0.75 | ||||||
| Field of View (mm x mm) | |||||||
| 1/2.5" 9P001/31 (5.7x4.28) | 47.5x35.7 | ||||||
| 1/2" 9J003 (6.44x4.62) | 53.7x38.5 | ||||||
