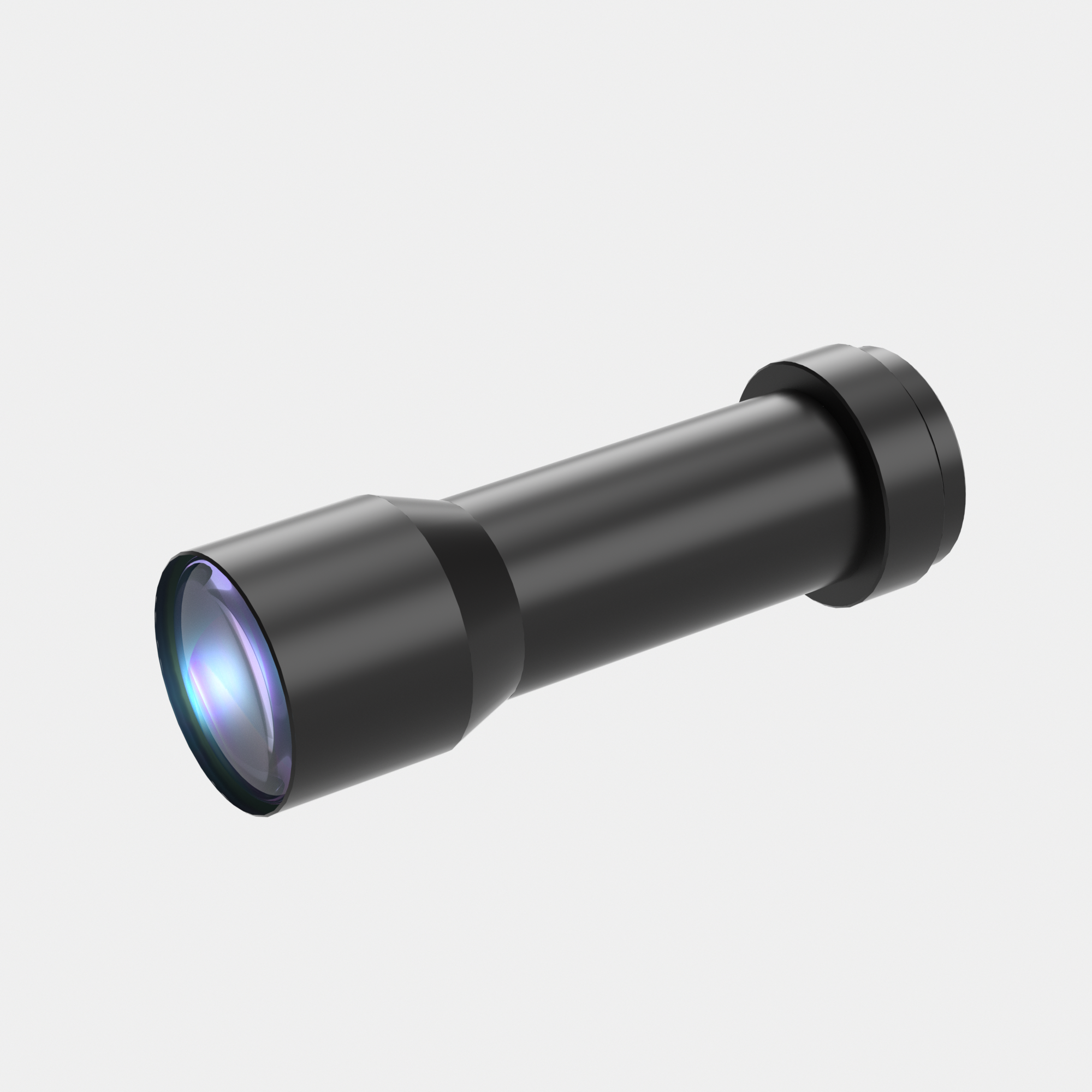

| Model NO. | WH012-455A | Image Circle Diameter (Φmm) | 11(2/3") | ||||
| Magnification(x) | 0.12 | Working Distance(mm) | 455 | ||||
| NA | 0.0047 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 12.9 | ||||
| MTF30 (lp/mm) | 40 | Object Resolution(μm) | 71.8 | ||||
| Depth of Field(mm) | 71.7 | Distortion Typical(% max) | 0.2 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 81.6 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 20 | ||||
| Filter Screw Size | M25x0.5 | ||||||
| Field of View (mm x mm) | |||||||
| 1/2"(6.4x4.8) | 53.3x40.0 | ||||||
| 1/1.8"(7.13x5.37) | 59.4x44.8 | ||||||
| 2/3"(8.8x6.6) | 73.3x55.0 | ||||||
