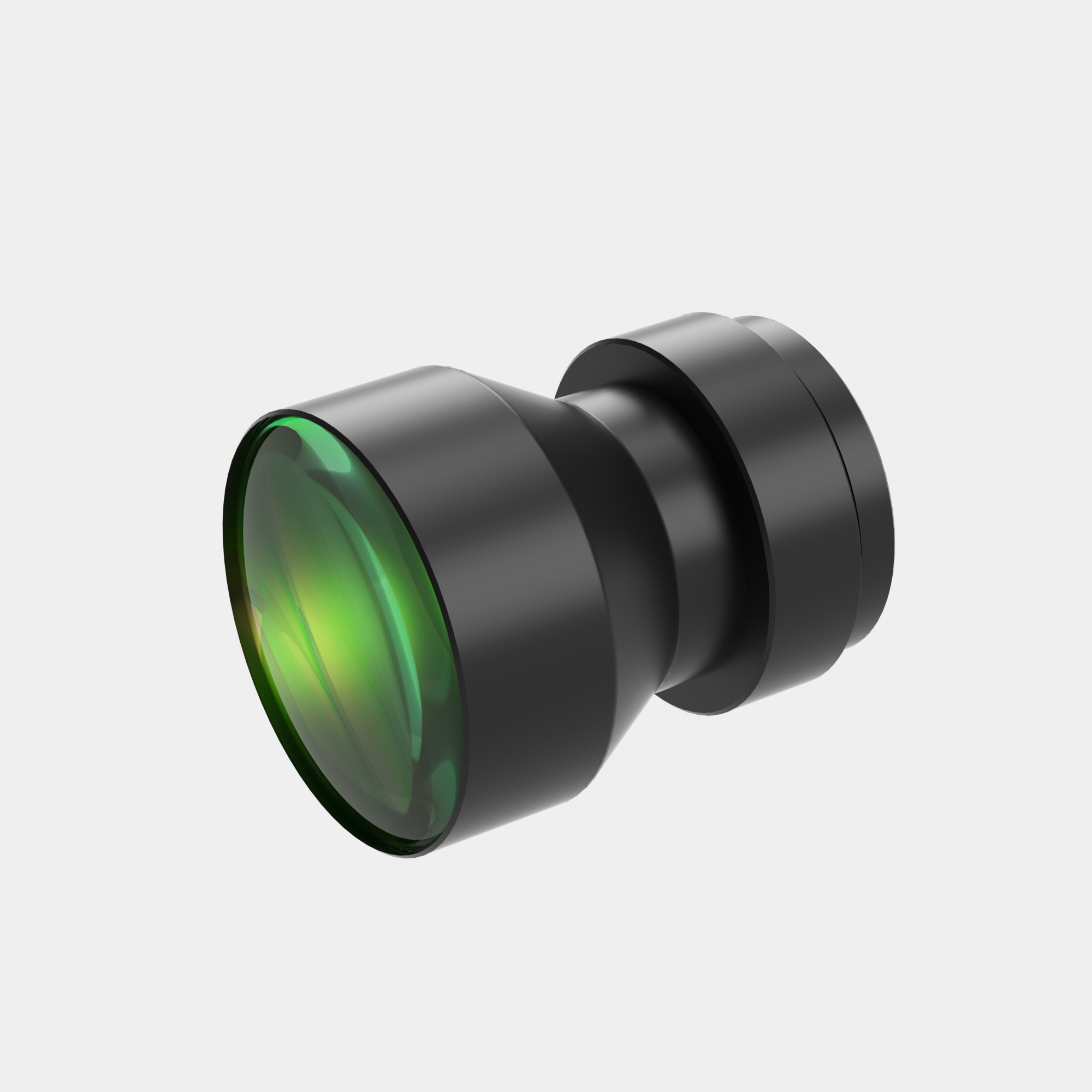

| Model NO. | WH004-740A-230 | Image Circle Diameter (Φmm) | 11(2/3") | ||||
| Magnification(x) | 0.04 | Working Distance(mm) | 740 | ||||
| NA | 0.0017 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 11.6 | ||||
| MTF30 (lp/mm) | 80 | Object Resolution(μm) | 192.8 | ||||
| Depth of Field(mm) | 580 | Distortion Typical(% max) | 0.5 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 34.4 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | / | ||||
| Filter Screw Size | M25x0.5 | ||||||
| Field of View (mm x mm) | |||||||
| 1/2"(6.4x4.8) | 160x120 | ||||||
|
1/1.8"(7.13x5.37)
|
178x134 | ||||||
|
2/3"(8.8x6.6)
|
220x165 | ||||||
