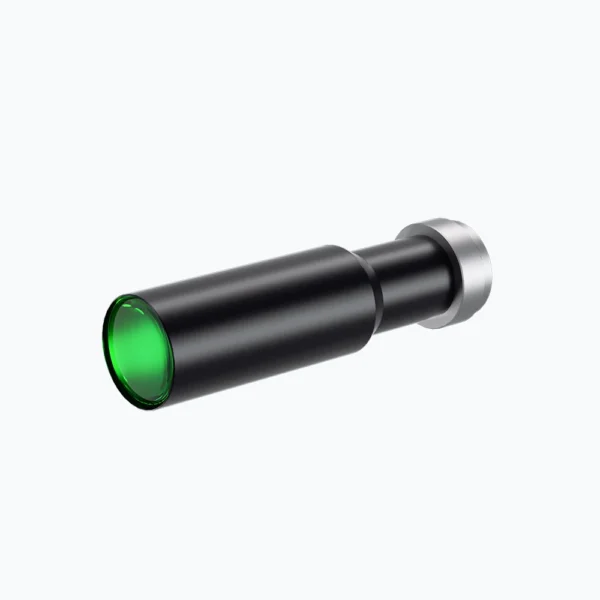

| Model NO. | WWH10-63ATV3 | Magnification(x) | 1.0 | ||||
| Working Distance(mm) | 63±1 | Max Sensor Size(φmm) | 11.0(2/3") | ||||
| Aperture(F/#) | 8 | Telecentricity Typical(max)(deg) | 0.1 | ||||
| Distortion Typical(max)(%) | 0.07 | NA | 0.0625 | ||||
| Resolution(μm) | 5.4 | Depth of Field | 0.6 | ||||
| Mount | C | Length (mm) | 101.3 | ||||
| Coaxial Illumination Port Option | No | Iris Adjustable | No | ||||
| Field of View (mm x mm) | |||||||
| 1/2”（6.4x4.8） | 6.4x4.8 | ||||||
| 1/1.8”（7.13x5.37） | 7.13x5.37 | ||||||
| 2/3”（8.45x7.1） | 8.45x7.1 | ||||||
