These cables can be used in demanding applications.
They are ensure network throughput in harsh industrial environments.
• This is an extension cable for industrial camera power supply I/O trigger and data transmit.

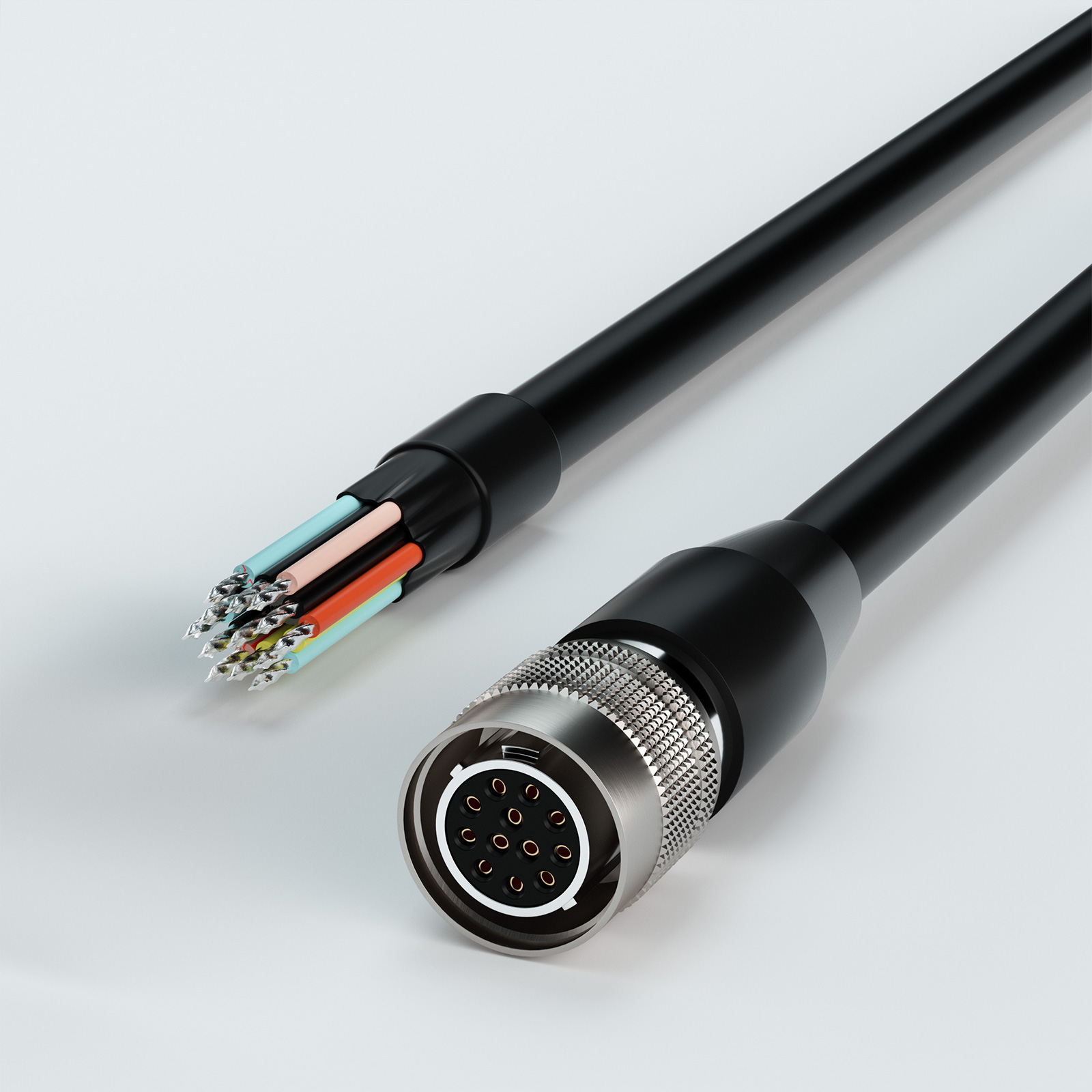

• Hirose 12 pin female connector to open end, make DIY connections according to your needs.
• Features: abrasion-resistant, flame-resistant, torsion- resistant, heat-resistant.
• High flexible, drag chain.

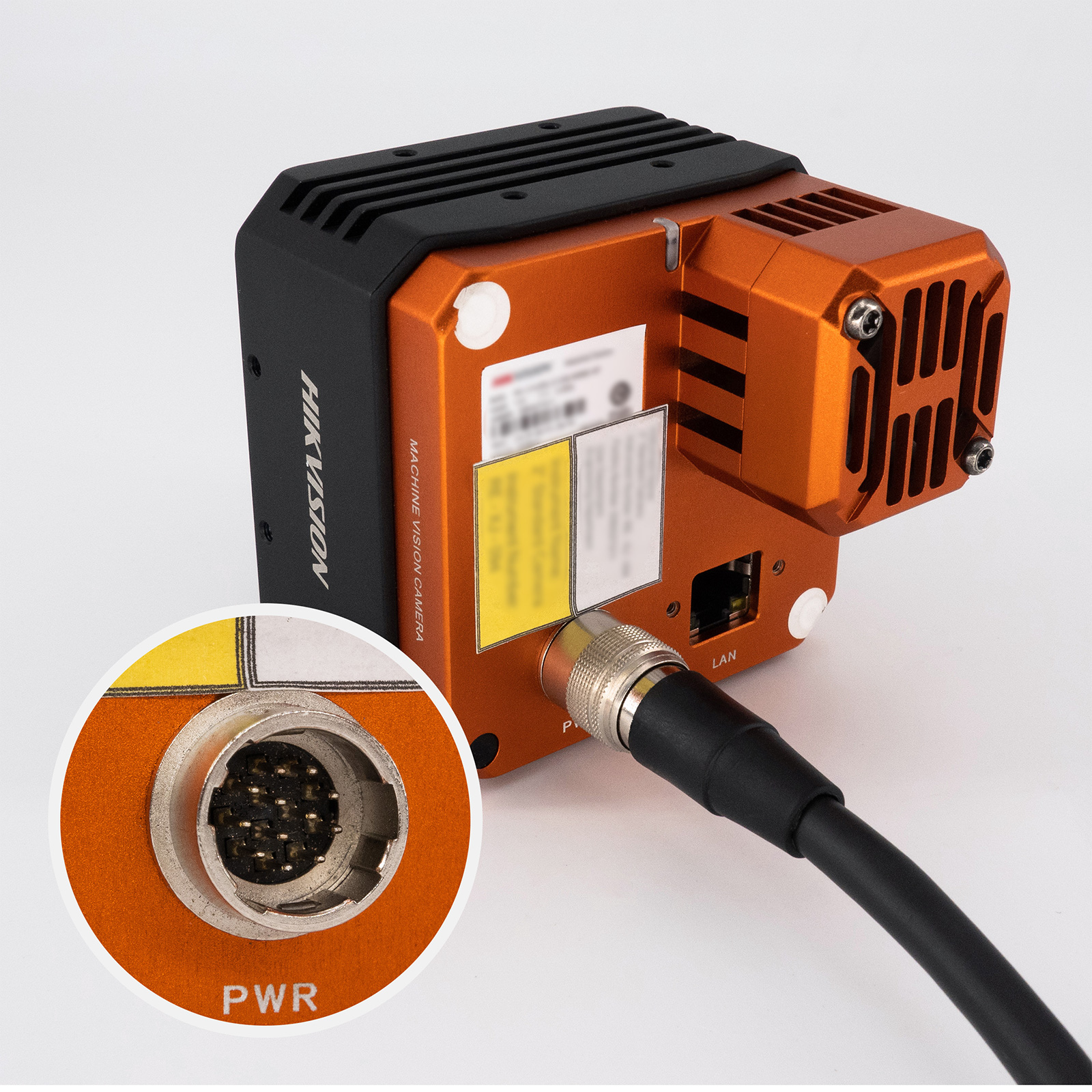

• Basler racer GigE and runner cameras, Sony industrial CCD camera, Allied Vision cameras and more industrial Machine Vision cameras with Hirose 12 pin Male Connector.
| Connector Specification |
 |
| Bill Of Materials | Wiring Diagram | Location of Pins | |||||
| Item | Description | QTY | Specification |  |

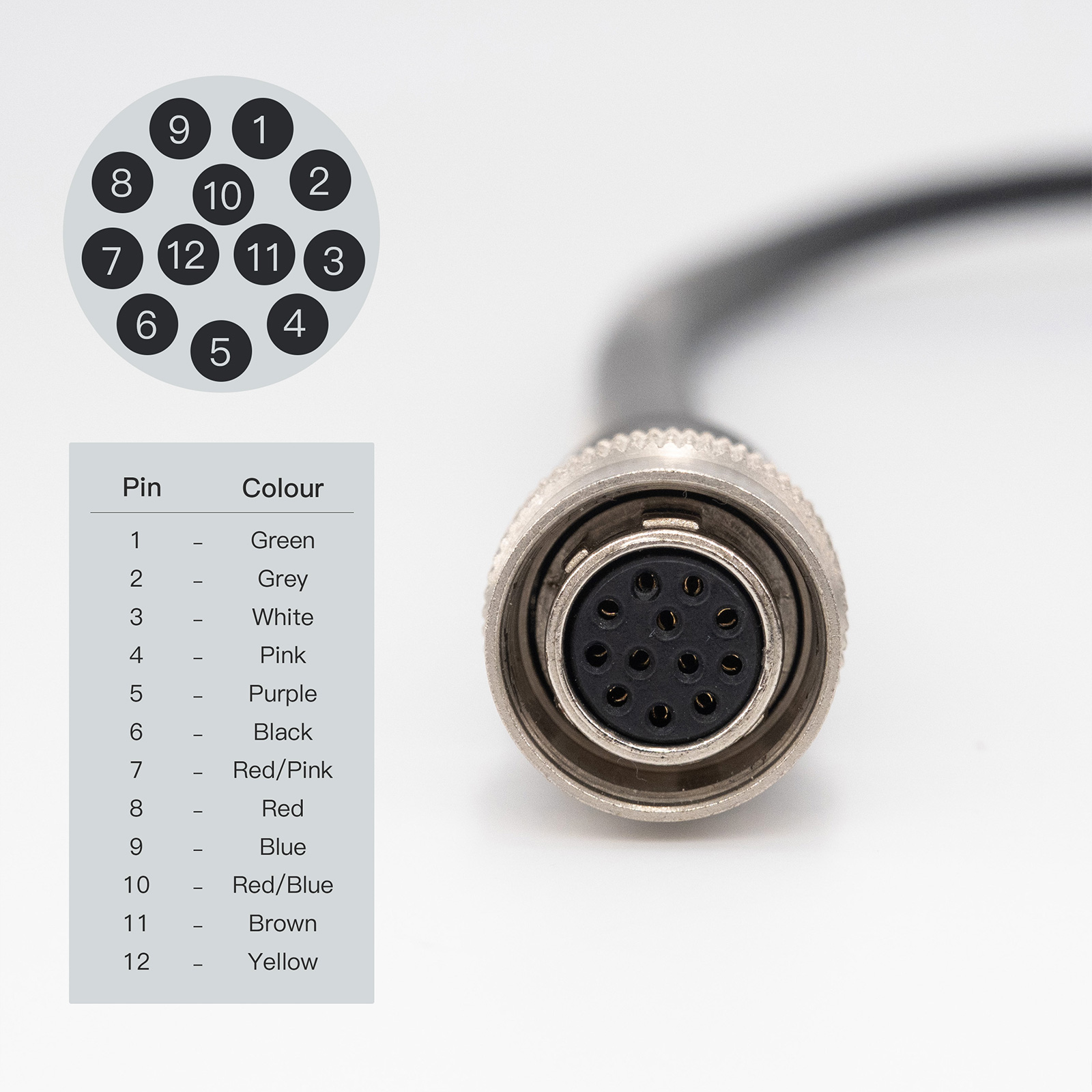

PIC | Pin | Clour |
 |
1 | Green | |||||
| ① | Wire | 1 | 6Px26AWG RoHS LF BLACK | 2 | Grey | ||
| 3 | White | ||||||
| ② | Connector | 1 | HR10A-10P-12S | 4 | Pink | ||
| 5 | Purple | ||||||
| ③ | Shrinkable Tube | 1 | ø8.0 | 6 | Black | ||
| 7 | Red/Pink | ||||||
| ④ | Shrinkable Tube | 1 | ø2.0 | 8 | Red | ||
| 9 | Blue | ||||||
| ⑤ | Label | 1 | Wiring Diagram | 10 | Red/Blue | ||
| 11 | Brown | ||||||
| 12 | Yellow | ||||||
| Drawing | Pair Twist Insulator Colour | |
 |
Pair Twist | Insulator Colour |
| 1 | White | |
| Green | ||
| 2 | Pink | |
| Grey | ||
| 3 | Black | |
| Grey | ||
| 4 | Red | |
| Red/Pink | ||
| 5 | Blue | |
| Red/Blue | ||
| 6 | Brown | |
| Yellow | ||
| * Red/Pink: Red line is injected on the pink insulator and occupys 20-25% of the dimension. The same for others. | ||

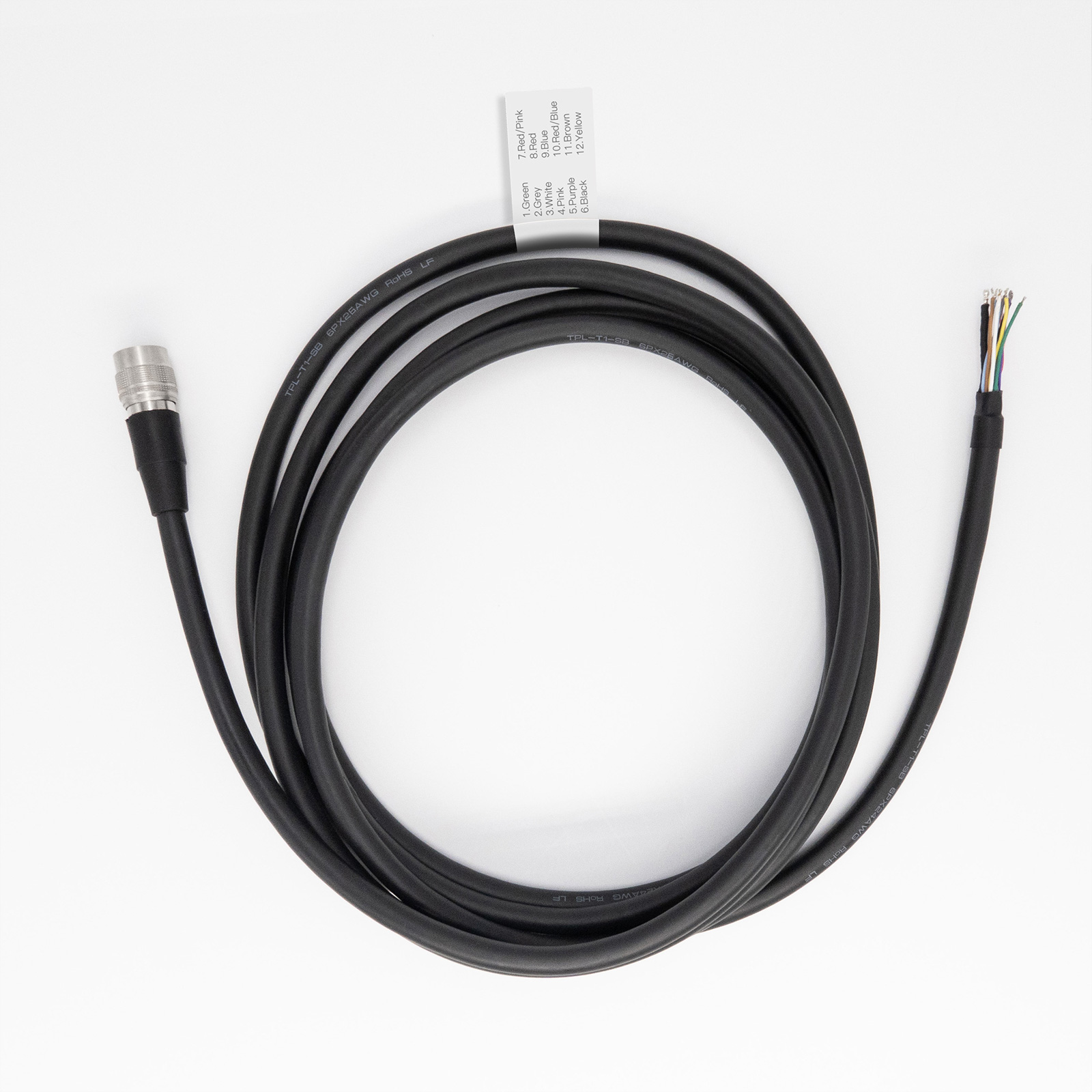

| Model NO. | OLA-ANA-1-X-3M CABLE | Printing | TPL-T1-SB 6Px26AWG RoSH LF | ||
| Style | 6Px26AWG RoHS LF BLACK | Size | 6Px26AWG | ||
| Approbation | UL20276 | Flame Retardant Grade | VW-1 | ||
| Conductor | Size | 6Px26AWG | Pair Twist | Pair Twist | 0.05*20mm |
| Cond. Material | Bare Copper BC | Diameter | 1.9mm | ||

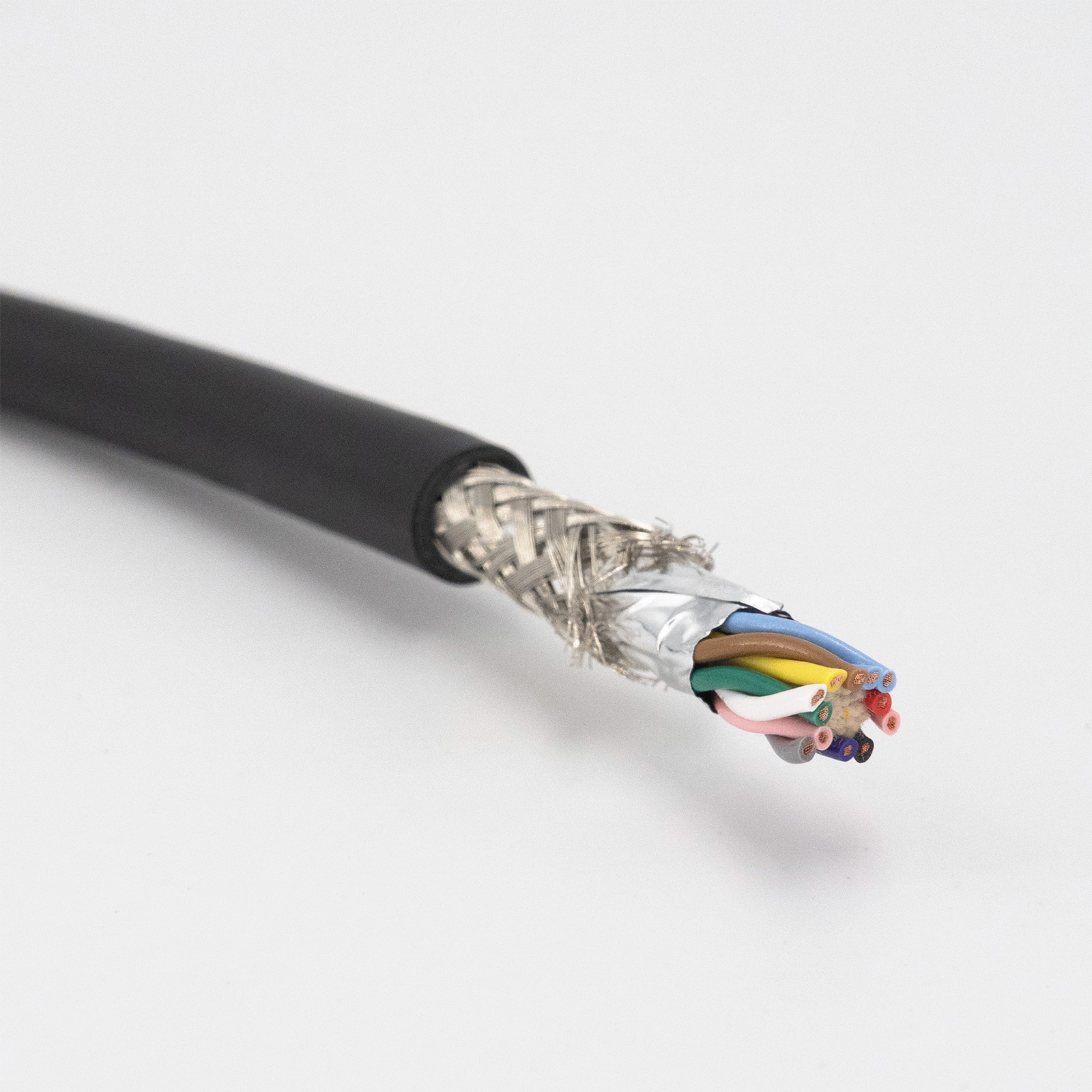

| Construction | 30/0.08 BC | Shielded | Al/Pet | 0.05mm | |
| Diameter | 0.51mm | Braid | 0.1TC | ||
| Tolern | ±0.003mm | Covered | 85% Min | ||
| Insulation | Material | PVC | Jacketed | Material | PVC |
| Diameter | 0.95±0.05mm | Diameter | ø7.2±0.3mm | ||
| Colour | Green, Grey, | Colour | Black (Similar to RAL 9005) | ||
| White, Pink, | Wokring Tempearture | Fixed Installation | -20°C ~ 80°C | ||
| Purple, Black, | Moved Installation | -10°C ~ 50°C | |||
| Red/Pink, Red, | Minimal Bending Radius | Fixed Installation | 4 X Cable-ø | ||
| Blue, Red/Blue, | Moved Installation | 8 X Cable-ø | |||
| Brown, Yellow | Electrical Properties | Conductor Resistance | ≤124 Ω/km 20°C | ||
| Assembly Standed | 8CX28AWG | Test Voltage | 500V/1min | ||
| Quality Certifications |    |
||||
