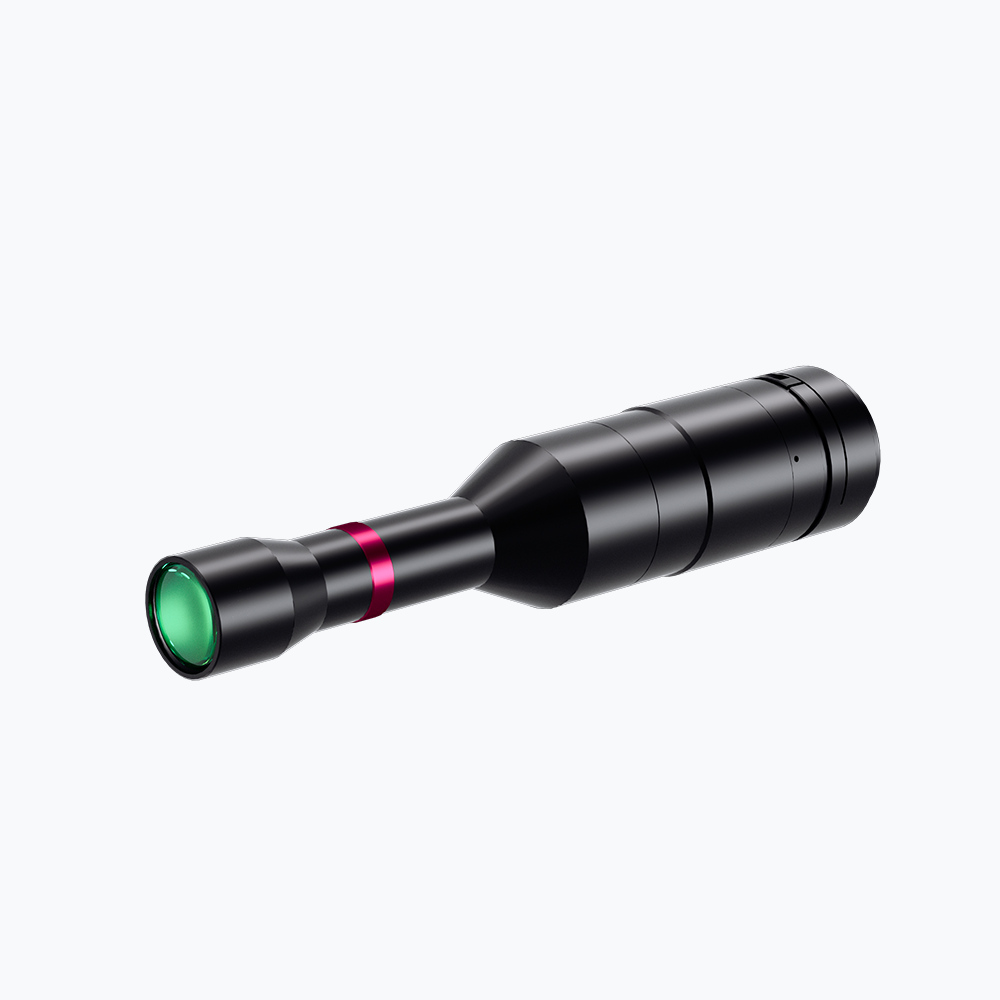

1.75" 1.846X Bi-Telecentric Lenses | DTCA175-15.7-M42-AL COOLENS®
$2,337.00 USD
-
Return & Refund Policy
-
Fast Delivery
-
One-on-one service
-
Reliable Manufacturer
-
Worldwide shipping
-
Multiple payment methods
| Model NO. | DTCA175-15.7-M42-AL | Image Circle Diameter (Φmm) | 29(1.75") | ||||
| Magnification(x) | 1.846 | Working Distance(mm) | 71 | ||||
| NA | 0.0461 | Type | Bi-Telecentric | ||||
| Mount | M42 | Object Field of View(Φmm) | 15.7 | ||||
| Best Aperture(f/#) | 20 | MTF30 (lp/mm) | >45 | ||||
| Object Resolution(μm) | 7.28 | Depth of Field(mm) | 0.5 | ||||
| Distortion Typical(% max) | <0.1 | Telecentricity Typical (°max) | <0.1 | ||||
| Length of I/O(mm) | 400 | Length (mm) | 311.9 | ||||
| Weight(kg) | 1.25 | Iris Adjustable | No | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 0.5 | ||||
| Filter Screw Size | / | ||||||
| Field of View (mm × mm) |
1.75" IMX342 (22.3X16.7) | 12.1x9 | |||||
Dimensions
Naming Rule
