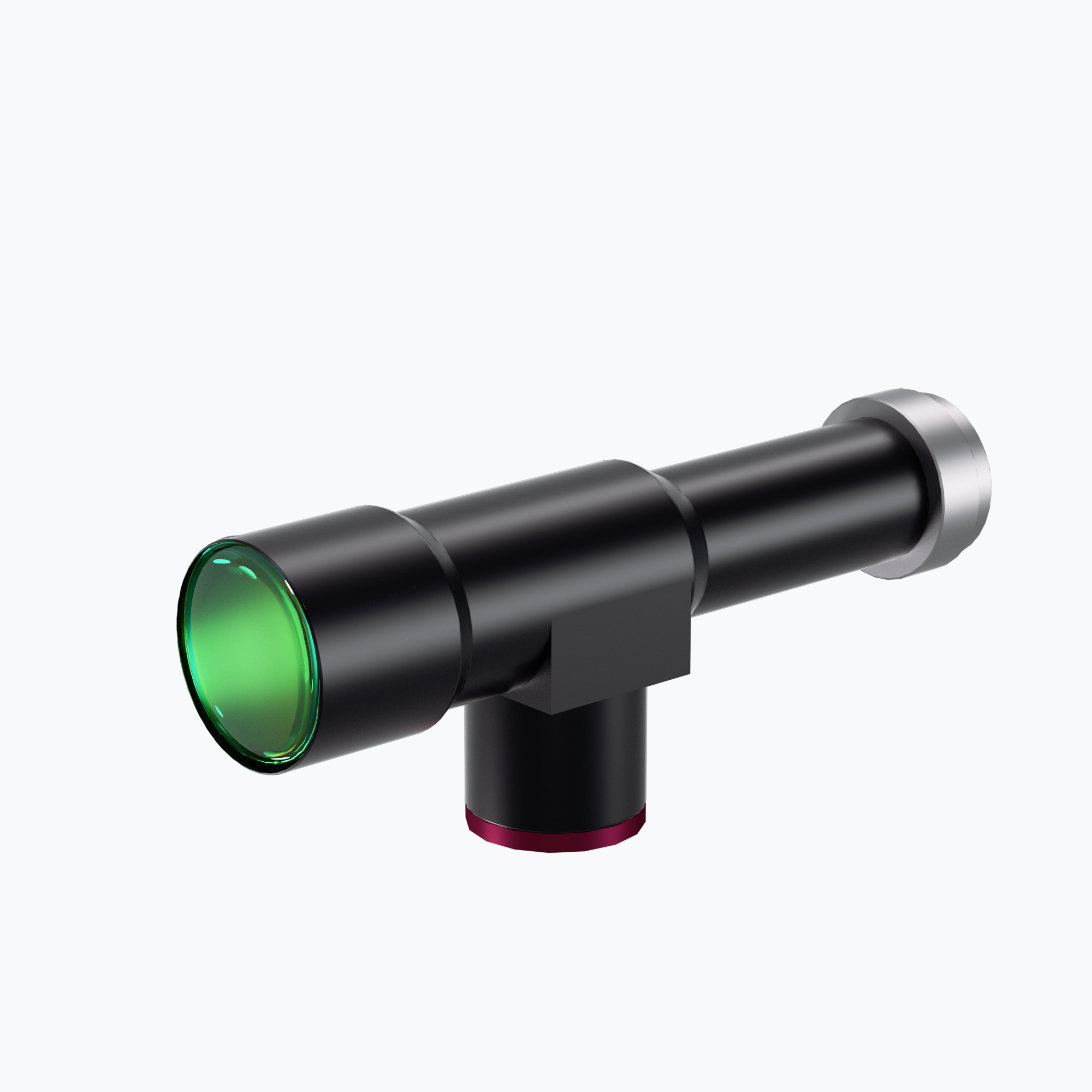

2/3" 1.5X Telecentric Lenses | WWH15-108CTLV3 COOLENS®
$429.00 USD
-
Return & Refund Policy
-
Fast Delivery
-
One-on-one service
-
Reliable Manufacturer
-
Worldwide shipping
-
Multiple payment methods
| Model NO. | WWH15-108CTLV3 | Image Circle Diameter (Φmm) | 11(2/3") | ||||
| Magnification(x) | 1.500 | Working Distance(mm) | 108±2 | ||||
| NA | 0.0854 | Type | Telecentric | ||||
| Mount | C | Best Aperture(f/#) | 7.3 | ||||
| MTF30 (lp/mm) | 102 | Object Resolution(μm) | 3.9 | ||||
| Depth of Field(mm) | 0.3 | Distortion Typical(% max) | 0.04 | ||||
| Telecentricity Typical (°max) | 0.02 | Length (mm) | 126.1 | ||||
| With Coaxial Illumination Port | Yes | Measured Depth of Field (mm) | 0.3 | ||||
| Filter Screw Size | M30x0.5 | ||||||
| Field of View (mm x mm) | |||||||
| 1/2”（6.4x4.8） | 4.3x3.2 | ||||||
| 1/1.8”（7.13x5.37） | 4.8x3.6 | ||||||
| 2/3”（8.45x7.1） | 5.6x4.7 | ||||||
Dimensions
Naming Rule
