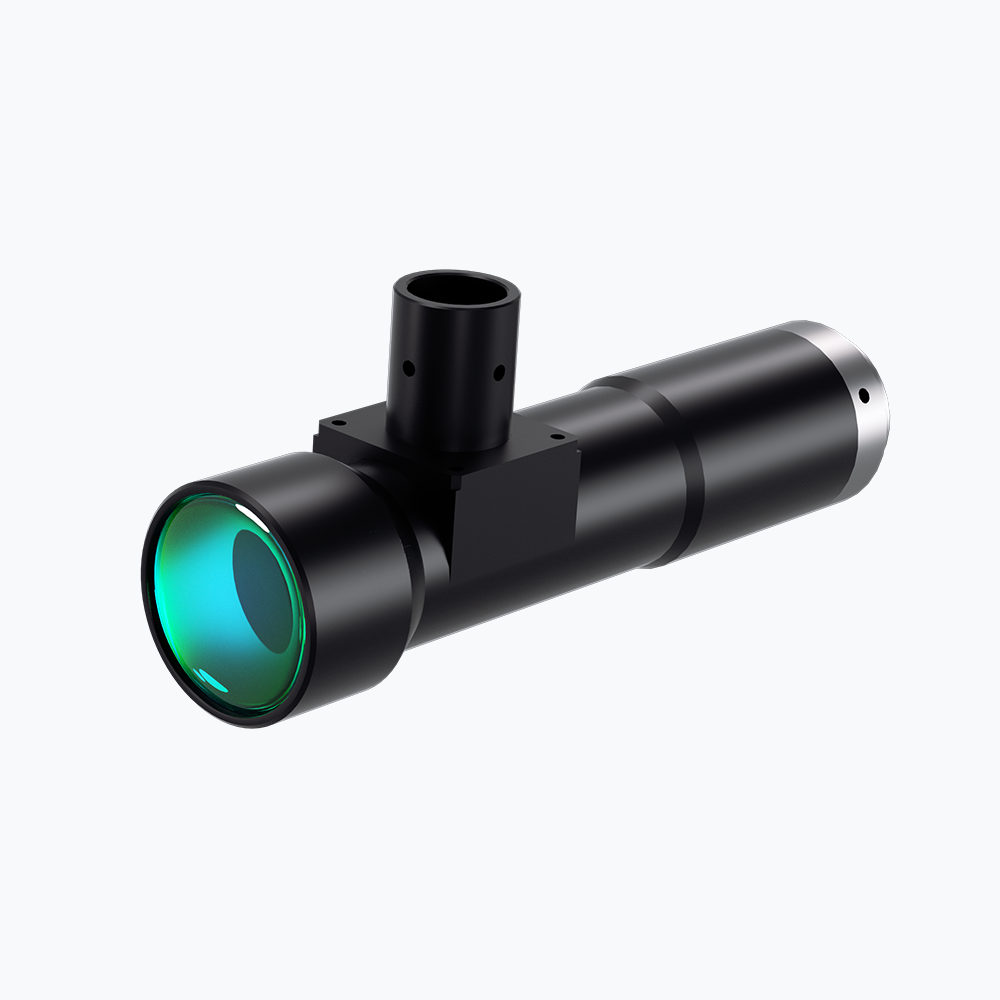

| Model NO. | WWK15-110C-111 | Image Circle Diameter (Φmm) | 18(1.1") | ||||
| Magnification(x) | 1.500 | Working Distance(mm) | 110±2 | ||||
| NA | 0.0747 | Type | Telecentric | ||||
| Mount | C | Best Aperture(f/#) | 10 | ||||
| MTF30 (lp/mm) | >78 | Object Resolution(μm) | 4.5 | ||||
| Depth of Field(mm) | ±0.18@F10 | Distortion Typical(% max) | <0.1 | ||||
| Telecentricity Typical (°max) | <0.1 | Length (mm) | 128.8 | ||||
| With Coaxial Illumination Port | Yes | Measured Depth of Field (mm) | 0.2 | ||||
| Filter Screw Size | M32.0x0.5 | ||||||
| Field of View (mm x mm) | |||||||
| 1" IMX183 (13.13x8.76) | 8.8x5.8 | ||||||
| 1" IMX183 (13.13x8.76) | 9.5x6.9 | ||||||
