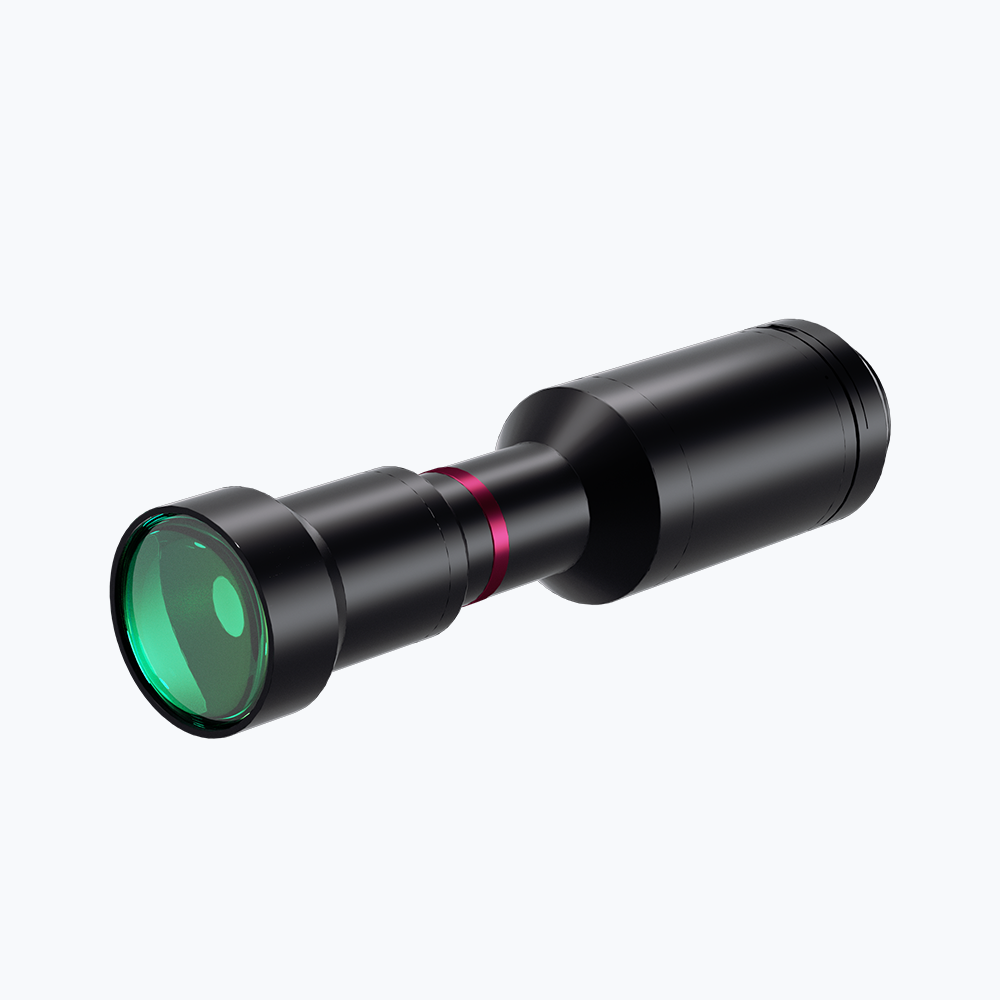

23K 1.3X Bi-Telecentric Lenses | DTCA23K-63-M95-AL COOLENS®
$3,896.00 USD
-
Return & Refund Policy
-
Fast Delivery
-
One-on-one service
-
Reliable Manufacturer
-
Worldwide shipping
-
Multiple payment methods
| Model NO. | DTCA23K-63-M95-AL | Image Circle Diameter (Φmm) | 82(23K) | ||||
| Magnification(x) | 1.3 | Working Distance(mm) | 146 | ||||
| NA | 0.0460 | Type | Bi-Telecentric | ||||
| Mount | M95 | Object Field of View(Φmm) | 63 | ||||
| Best Aperture(f/#) | 7.5 | MTF30 (lp/mm) | >124 | ||||
| Object Resolution(μm) | 3.9 | Depth of Field(mm) | 0.4 | ||||
| Distortion Typical(% max) | 0.03 | Telecentricity Typical (°max) | 0.04 | ||||
| Length of I/O(mm) | 672 | Length (mm) | 513.5 | ||||
| Weight(kg) | 5.5 | Iris Adjustable | No | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 0.05 | ||||
| Filter Screw Size | M90x1.0 | ||||||
| Field of View (mm × mm) |
DALSA 86M (64.32X37.2) | 49.5x37.2 | |||||
| Linescan-16K 5um (23.04X23.04) | 63 | ||||||
Dimensions
Naming Rule
