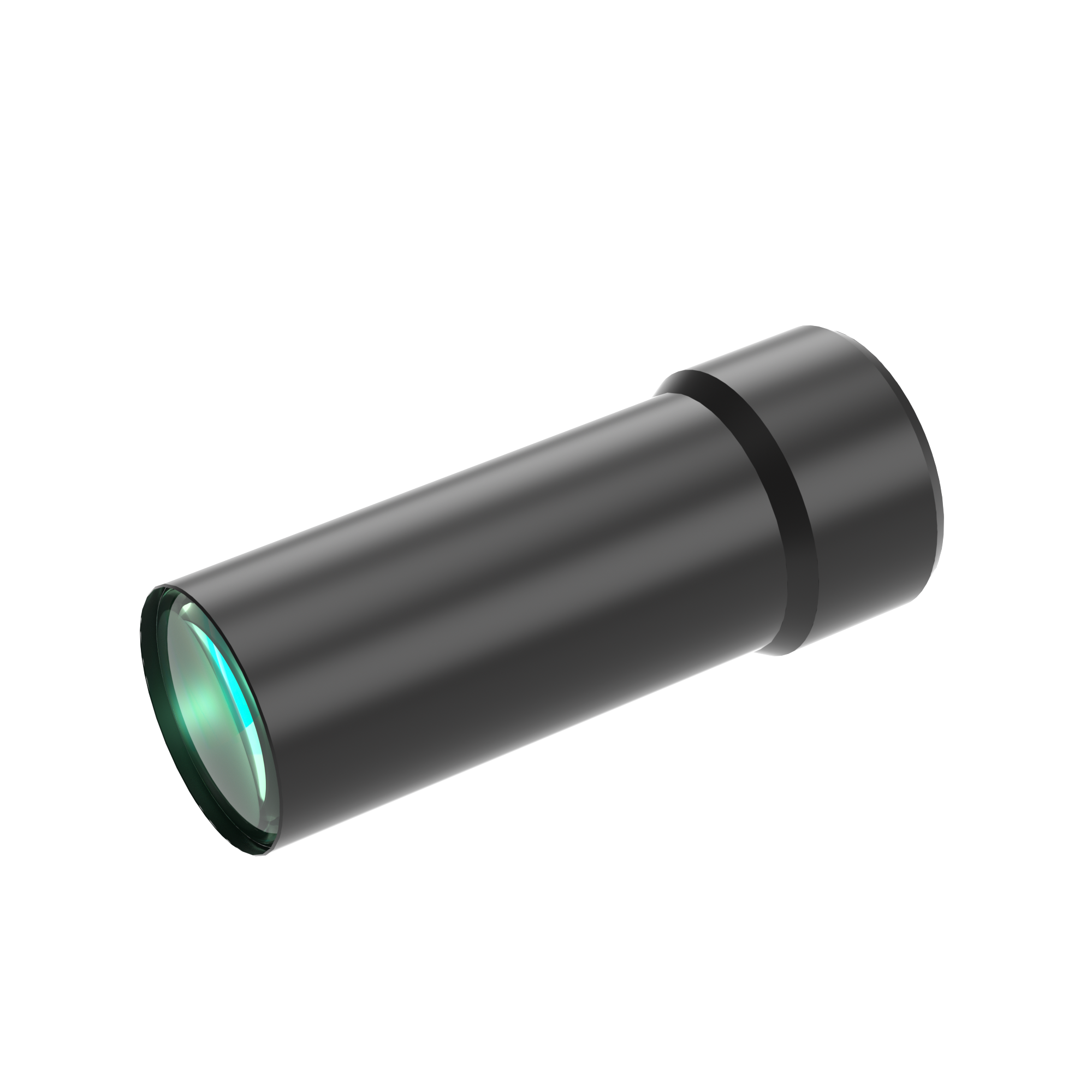

| Model NO. | WWT121-10-86 | Image Circle Diameter (Φmm) | 19.2(1.2") | ||||
| Focal Length(mm) | 81.57 | Magnification(x) | 1 | ||||
| Working Distance(mm) | 86 | MTF30 (lp/mm) | 54 | ||||
| Type | Fixed Magnification Focal Length | Mount | C | ||||
| NA | 0.0624 | Best Aperture(f/#) | 8 | ||||
| Object Resolution(μm) | 5.4 | Depth of Field(mm) | 0.6 | ||||
| TV Distortion | 0.5 | Length (mm) | 99.5 | ||||
| Measured Depth of Field (mm) | 0.3 | Filter Screw Size | M30x0.5 | ||||
| Field of View (mm x mm) | |||||||
| 1.2" IMX530/540 (14.6X12.6) | 14.6x12.6 | ||||||
