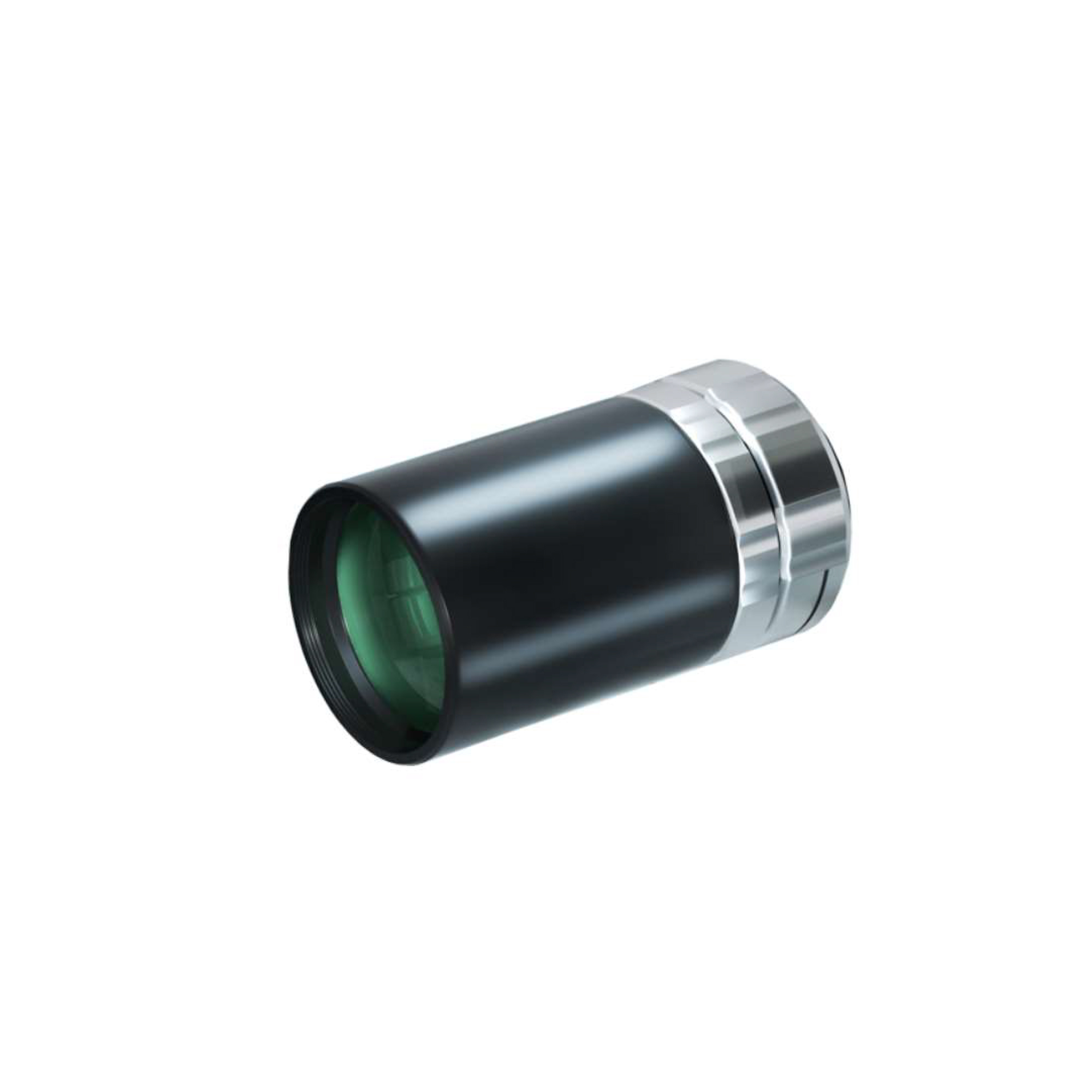

| Model NO. | WWT121-085-94 | Image Circle Diameter (Φmm) | 20.0(1.2") | ||||
| Focal Length(mm) | 73.66 | Magnification(x) | 0.85 | ||||
| Working Distance(mm) | 94 | MTF30 (lp/mm) | 73 | ||||
| Type | Fixed Magnification Focal Length | Mount | C | ||||
| NA | 0.0532 | Best Aperture(f/#) | 8 | ||||
| Object Resolution(μm) | 6.3 | Depth of Field(mm) | 0.9 | ||||
| TV Distortion | 0.45 | Length (mm) | 91.7 | ||||
| Measured Depth of Field (mm) | / | Filter Screw Size | M30x0.5 | ||||
| Field of View (mm x mm) | |||||||
| 1/2” IMX530/540（14.6x12.6） | 17.2x14.8 | ||||||
