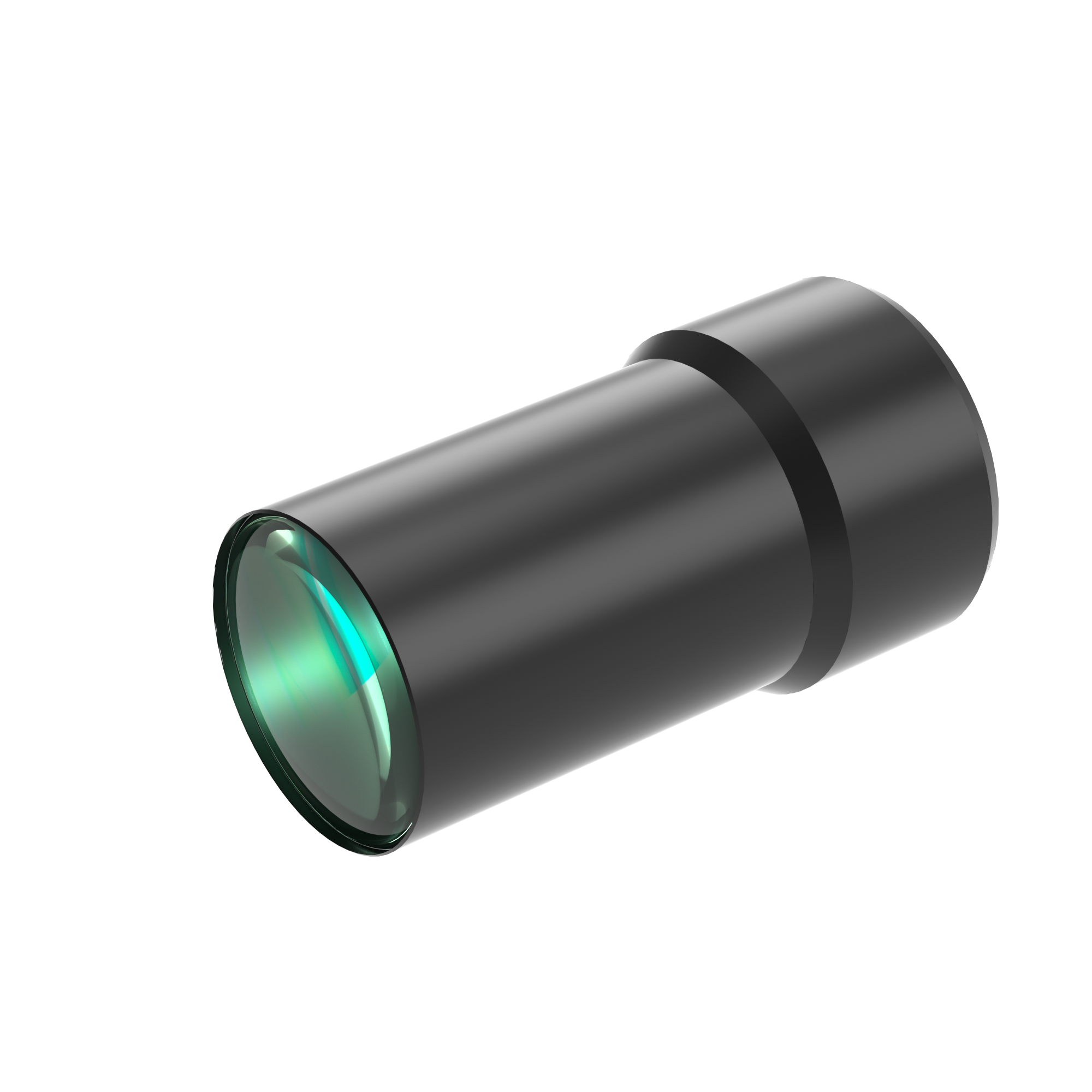

| Model NO. | WWT121-05-133 | Image Circle Diameter (Φmm) | 19.2(1.2") | ||||
| Focal Length(mm) | 60.23 | Magnification(x) | 0.5 | ||||
| Working Distance(mm) | 133 | MTF30 (lp/mm) | 130 | ||||
| Type | Fixed Magnification Focal Length | Mount | C | ||||
| NA | 0.0417 | Best Aperture(f/#) | 6 | ||||
| Object Resolution(μm) | 8.1 | Depth of Field(mm) | 1.9 | ||||
| TV Distortion | 0.2 | Length (mm) | 73.1 | ||||
| Measured Depth of Field (mm) | 0.6 | Filter Screw Size | M30x0.5 | ||||
| Field of View (mm x mm) | |||||||
| 1.2"(14.6x12.6) | 29.2x25.2 | ||||||
