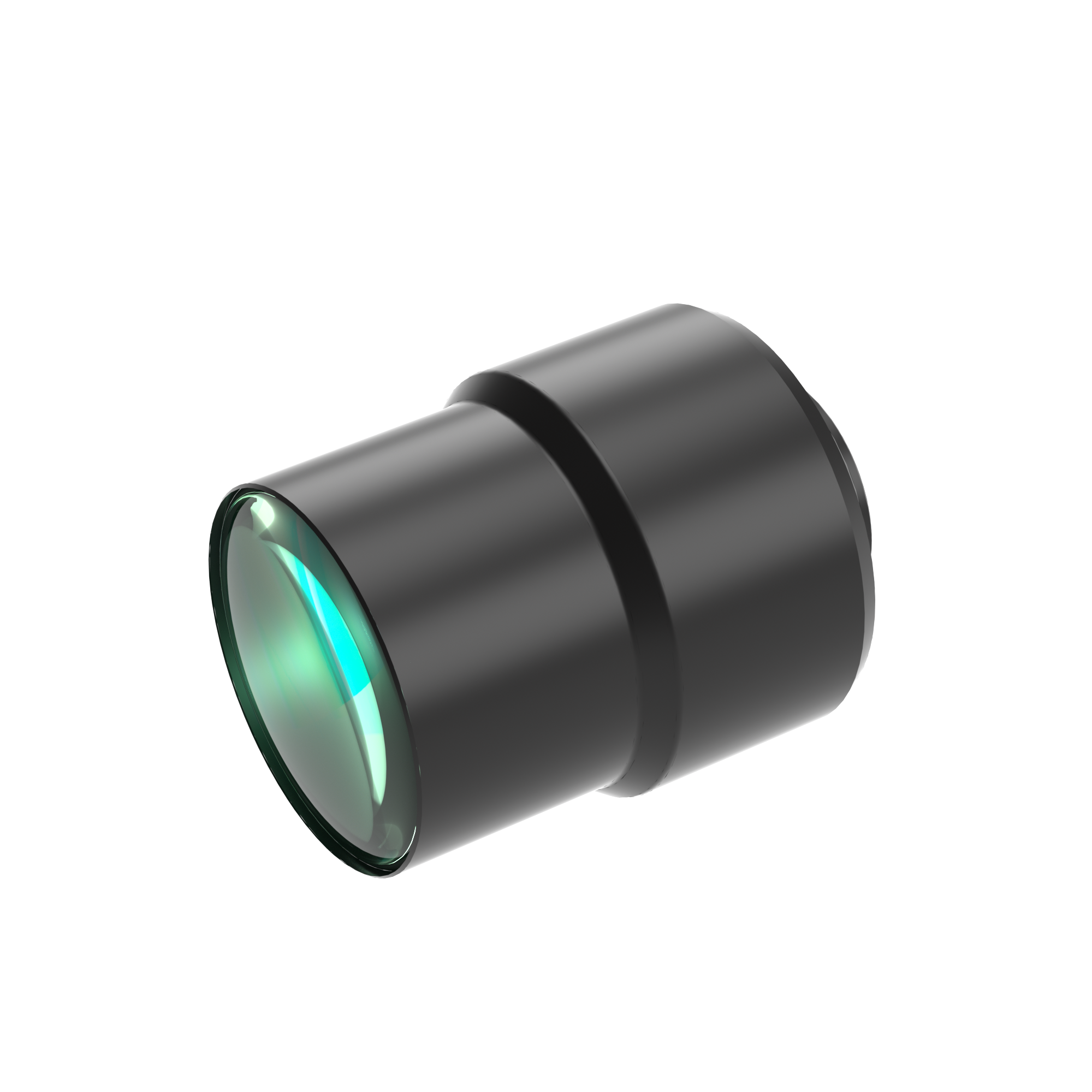

1.2" 36.04mm Fixed Magnification Focal Length Lens | WWT121-015-239 COOLENS®
$254.00 USD
-
Return & Refund Policy
-
Fast Delivery
-
One-on-one service
-
Reliable Manufacturer
-
Worldwide shipping
-
Multiple payment methods
| Model NO. | WWT121-015-239 | Image Circle Diameter (Φmm) | 19.2(1.2") | ||||
| Focal Length(mm) | 36.04 | Magnification(x) | 0.15 | ||||
| Working Distance(mm) | 239 | MTF30 (lp/mm) | 158 | ||||
| Type | Fixed Magnification Focal Length | Mount | C | ||||
| NA | 0.0125 | Best Aperture(f/#) | 6 | ||||
| Object Resolution(μm) | 26.8 | Depth of Field(mm) | 21.3 | ||||
| TV Distortion | 0.01 | Length (mm) | 46.1 | ||||
| Measured Depth of Field (mm) | 6.2 | Filter Screw Size | M30x0.5 | ||||
| Field of View (mm x mm) | |||||||
| 1/2” IMX530/540（14.6x12.6） | 97.3x84 | ||||||
Dimensions
Naming Rule
