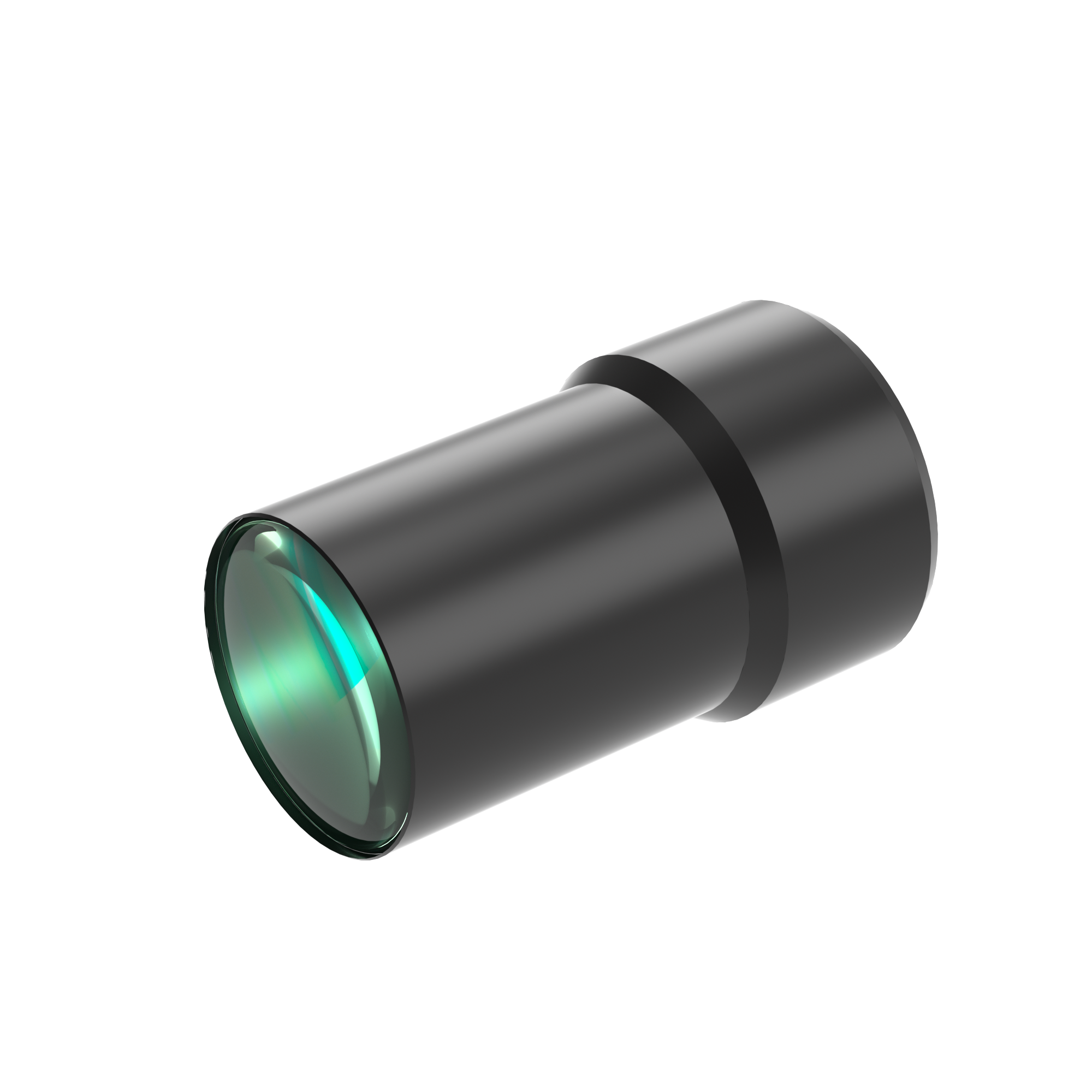

| Model NO. | WWT121-05-37 | Image Circle Diameter (Φmm) | 19.2(1.2") | ||||
| Focal Length(mm) | 24.8 | Magnification(x) | 0.5 | ||||
| Working Distance(mm) | 37 | MTF30 (lp/mm) | 70 | ||||
| Type | Fixed Magnification Focal Length | Mount | C | ||||
| NA | 0.0313 | Best Aperture(f/#) | 8 | ||||
| Object Resolution(μm) | 10.7 | Depth of Field(mm) | 2.6 | ||||
| TV Distortion | 0.42 | Length (mm) | 65.7 | ||||
| Measured Depth of Field (mm) | 1.2 | Filter Screw Size | M30x0.5 | ||||
| Field of View (mm x mm) | |||||||
| 1/2” IMX530/540（14.6x12.6） | 29.2x25.2 | ||||||
