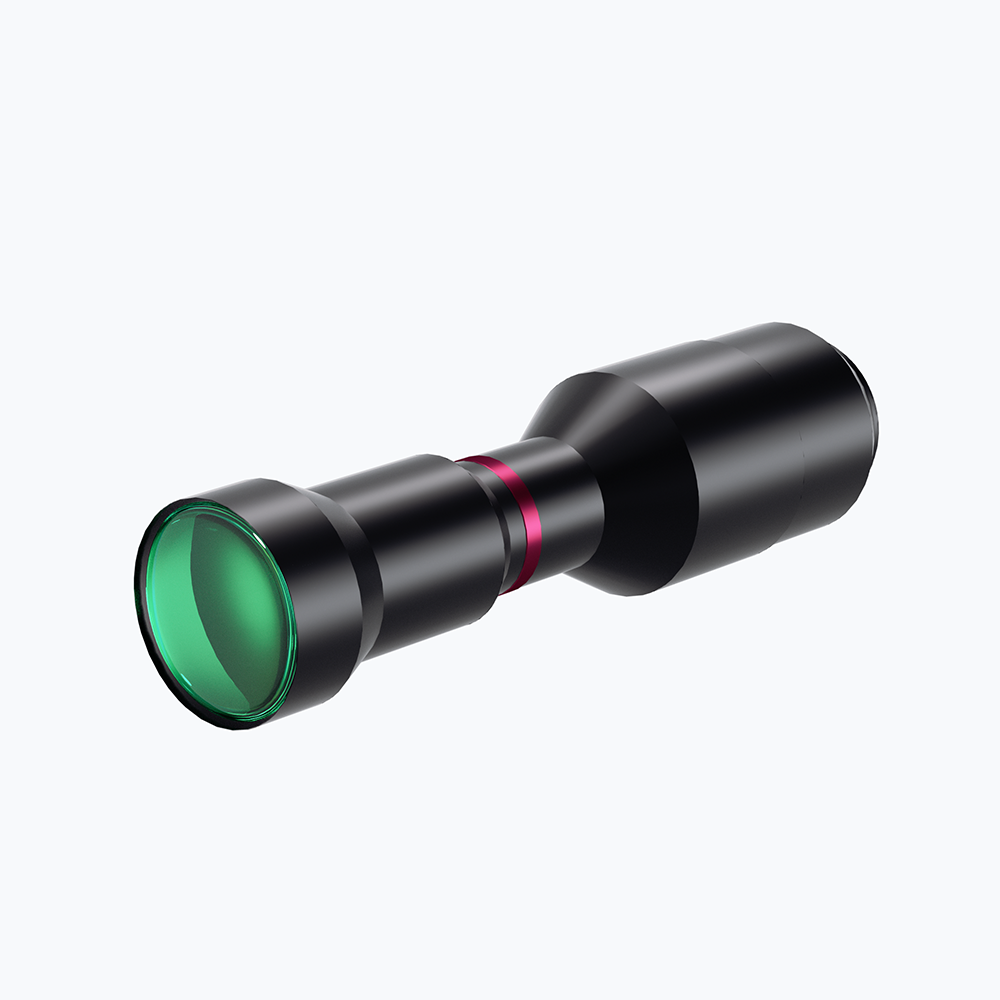

| Model NO. | DTCA24K-79-M95-AL | Image Circle Diameter (Φmm) | 88(24K) | ||||
| Magnification(x) | 1.11 | Working Distance(mm) | 150 | ||||
| NA | 0.0790 | Type | Bi-Telecentric | ||||
| Mount | M95 | Object Field of View(Φmm) | 79.2 | ||||
| Best Aperture(f/#) | 7 | MTF30 (lp/mm) | >100 | ||||
| Object Resolution(μm) | 4.2 | Depth of Field(mm) | ±0.2@F7.0 | ||||
| Distortion Typical(% max) | <0.01 | Telecentricity Typical (°max) | <0.2 | ||||
| Length of I/O(mm) | 641 | Length (mm) | 478.5 | ||||
| Weight(kg) | 5.6 | Iris Adjustable | No | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 0.3 | ||||
| Filter Screw Size | M95x1.0 | ||||||
| Field of View (mm × mm) |
64.32x48.38 with DALSA 86M | 57.9×43.6 | |||||
| 81.9mm with Linescan-16K 5μm | 73.8mm | ||||||
| 86.0mm with Linescan-24K 3.5μm | 77.5mm | ||||||
