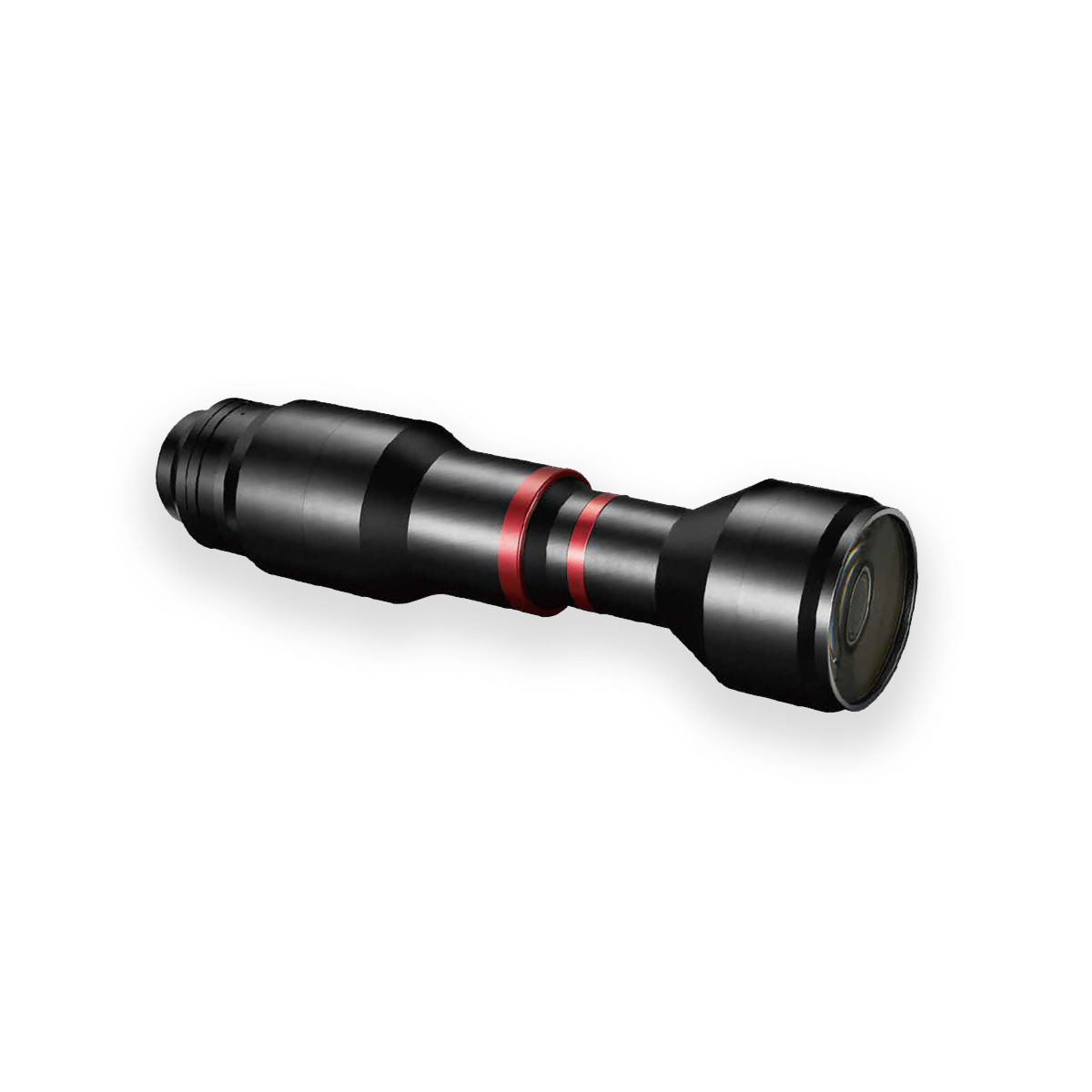

1.11X, 24K M90 Bi-Telecentric Lenses BFL Adjustable | DTCA24K COOLENS®
$3,910.00 USD
-
Return & Refund Policy
-
Fast Delivery
-
One-on-one service
-
Reliable Manufacturer
-
Worldwide shipping
-
Multiple payment methods
| Model NO. | DTCA24K-79-M90-AL | Magnification(x) | 1.11 | ||||
| Object Field of View (Φmm) | 75 | Working Distance (mm) | 150±3 | ||||
| Max Sensor Size (Φmm) | 88 | Best Aperture (F/#) | 7.0 | ||||
| Telecentricity typical (max) (deg) | <0.1 | Distortion typical (max) (%) | <0.1 | ||||
| MTF30 (lp/mm) | >90 | Depth of Field (mm) | ±0.2@F7.0 | ||||
| Length of I/O (mm) | 641±3 | Mount | M90 | ||||
| Length (mm) | 478.5 | Weight (kg) | 5.6 | ||||
| Coaxial Illumination Port Option | NO | Iris Adjustable | NO | ||||
| Back Focal Length Adjustable | YES | ||||||
| Field of View (mm × mm) |
64.32x48.38 with DALSA 86M | 57.9×43.6 | |||||
| 81.9mm with Linescan-16K 5μm | 73.8mm | ||||||
| 86.0mm with Linescan-24K 3.5μm | 77.5mm | ||||||
Dimensions
