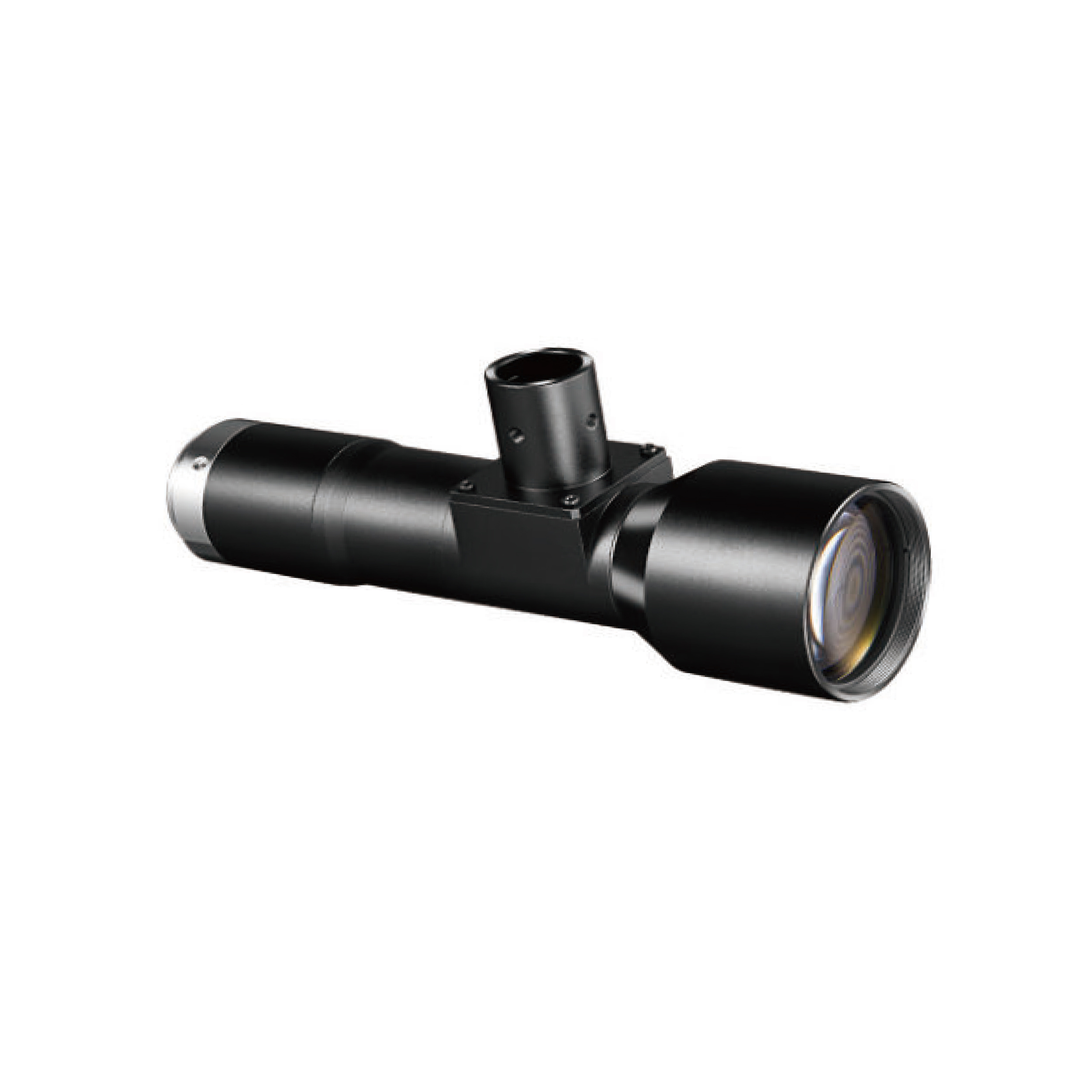

| Model NO. | WWK10-110C-111 | Image Circle Diameter (Φmm) | 18(1.1") | ||||
| Magnification(x) | 1.000 | Working Distance(mm) | 110±2 | ||||
| NA | 0.0715 | Type | Telecentric | ||||
| Mount | C | Best Aperture(f/#) | 7 | ||||
| MTF30 (lp/mm) | >128 | Object Resolution(μm) | 4.7 | ||||
| Depth of Field(mm) | ±0.3@F7 | Distortion Typical(% max) | <0.13 | ||||
| Telecentricity Typical (°max) | <0.18 | Length (mm) | 133.3 | ||||
| With Coaxial Illumination Port | Yes | Measured Depth of Field (mm) | 0.3 | ||||
| Filter Screw Size | M37.0x0.5 | ||||||
| Field of View (mm x mm) | |||||||
| 1" IMX183 (13.13x8.76) | 13.1×8.8 | ||||||
| 1" IMX253 (14.19x10.4) | 14.2×10.4 | ||||||
