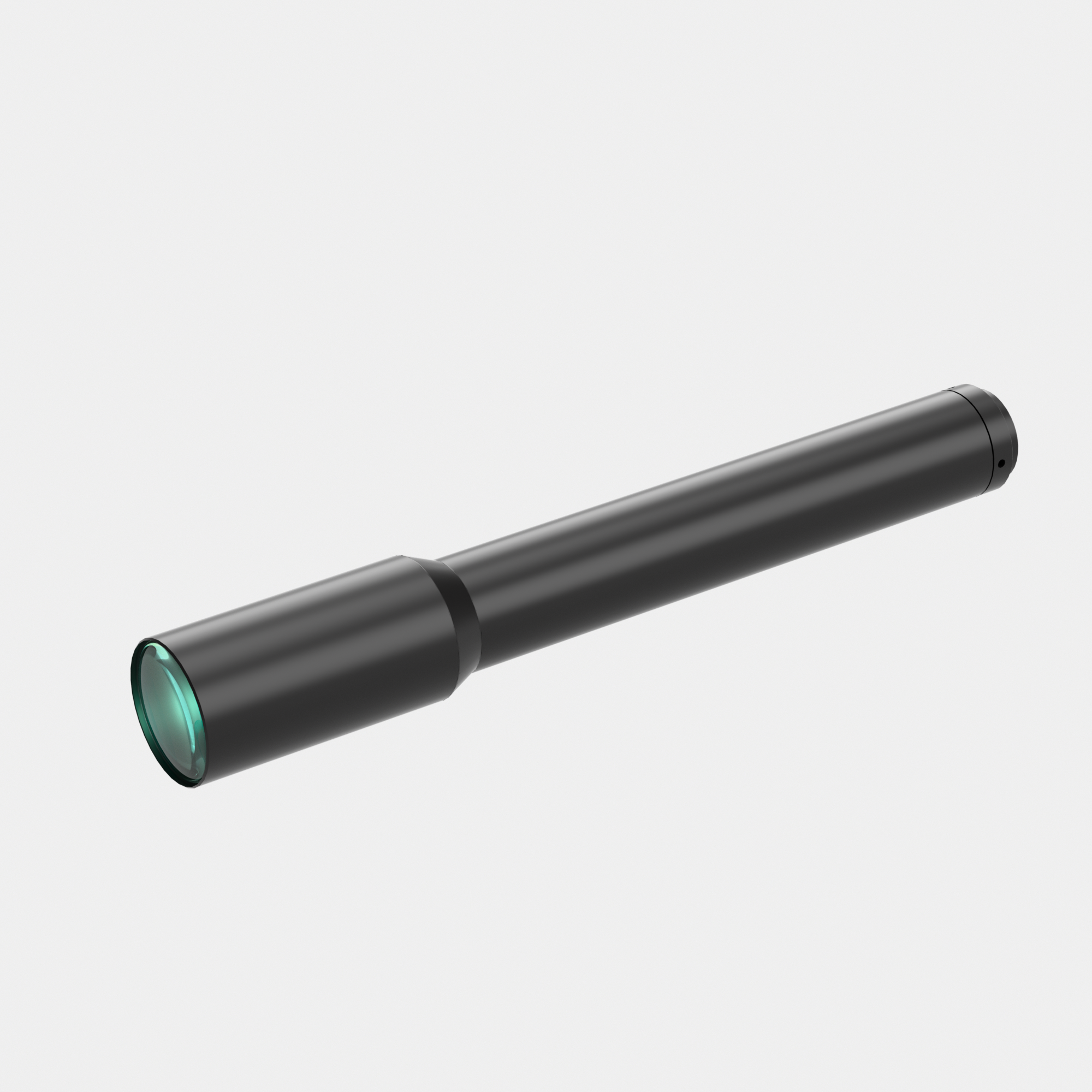

1.1" 0.35X Industrial Lenses | WH035-560A-111 COOLENS®
$471.00 USD
-
Return & Refund Policy
-
Fast Delivery
-
One-on-one service
-
Reliable Manufacturer
-
Worldwide shipping
-
Multiple payment methods
| Model NO. | WH035-560A-111 | Image Circle Diameter (Φmm) | 18(1.1") | ||||
| Magnification(x) | 0.35 | Working Distance(mm) | 560 | ||||
| NA | 0.0140 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 12.5 | ||||
| MTF30 (lp/mm) | 75 | Object Resolution(μm) | 24 | ||||
| Depth of Field(mm) | 8.2 | Distortion Typical(% max) | 0.02 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 249.6 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 5.2 | ||||
| Filter Screw Size | M35x0.5 | ||||||
|
Field of View (mm x mm) |
|||||||
| 2/3"(8.8x6.6) | 25.1x18.9 | ||||||
| 1"(12.43x9.83) | 35.5x28.1 | ||||||
| 1.1"(14.19x10.38) | 40.5x29.7 | ||||||
Dimensions
Naming Rule
