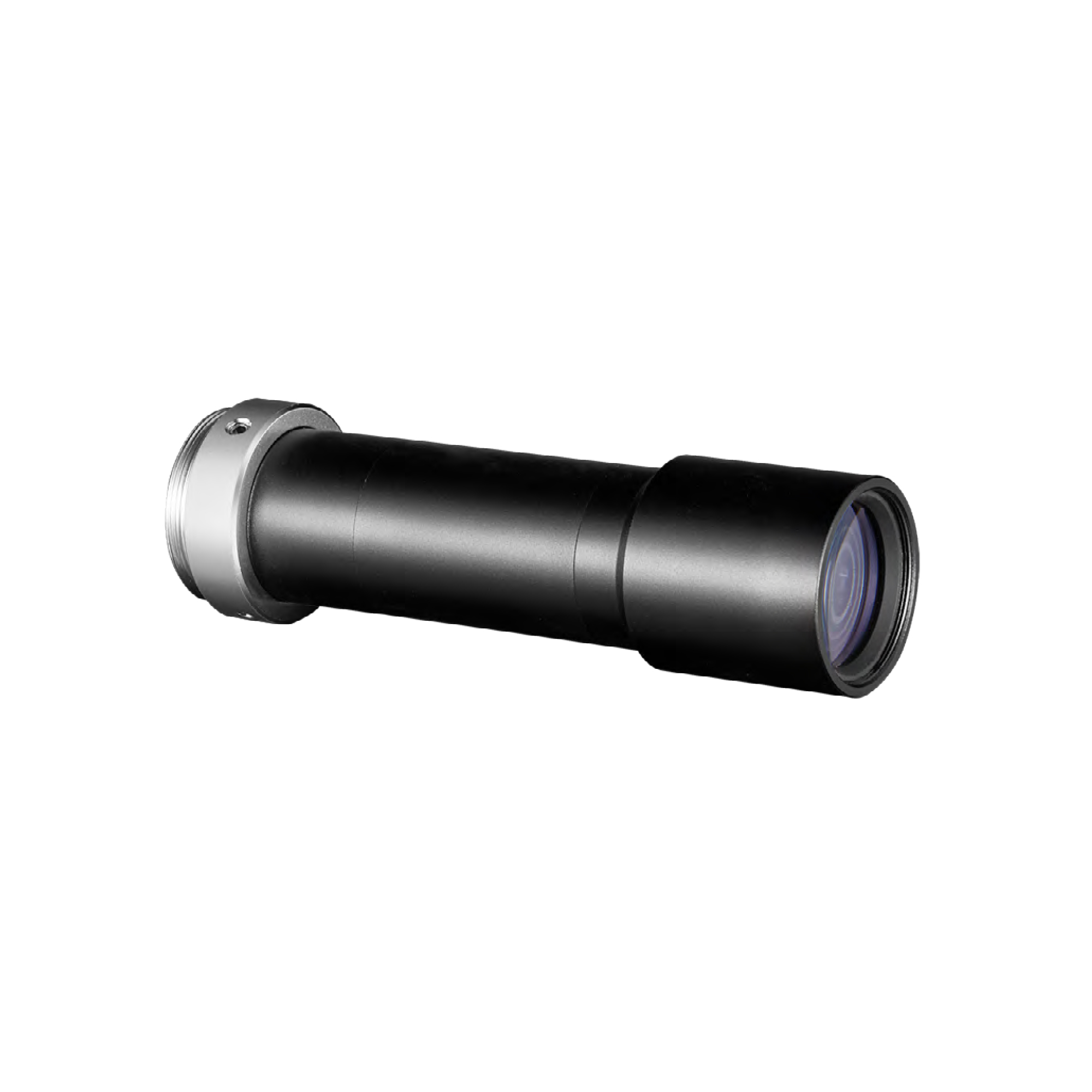

| Model NO. | WH013-1200A-121 | Image Circle Diameter (Φmm) | 18(1.1") | ||||
| Magnification(x) | 0.13 | Working Distance(mm) | 1200 | ||||
| NA | 0.0065 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 10 | ||||
| MTF30 (lp/mm) | 75 | Object Resolution(μm) | 51.6 | ||||
| Depth of Field(mm) | 47.3 | Distortion Typical(% max) | 0.05 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 199.9 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | / | ||||
| Filter Screw Size | / | ||||||
| Field of View (mm x mm) | |||||||
| 1/2"(6.4x4.8) | |||||||
| 1/1.8"(7.13x5.37) | |||||||
| 1/1.7"(7.44x4.62) | |||||||
