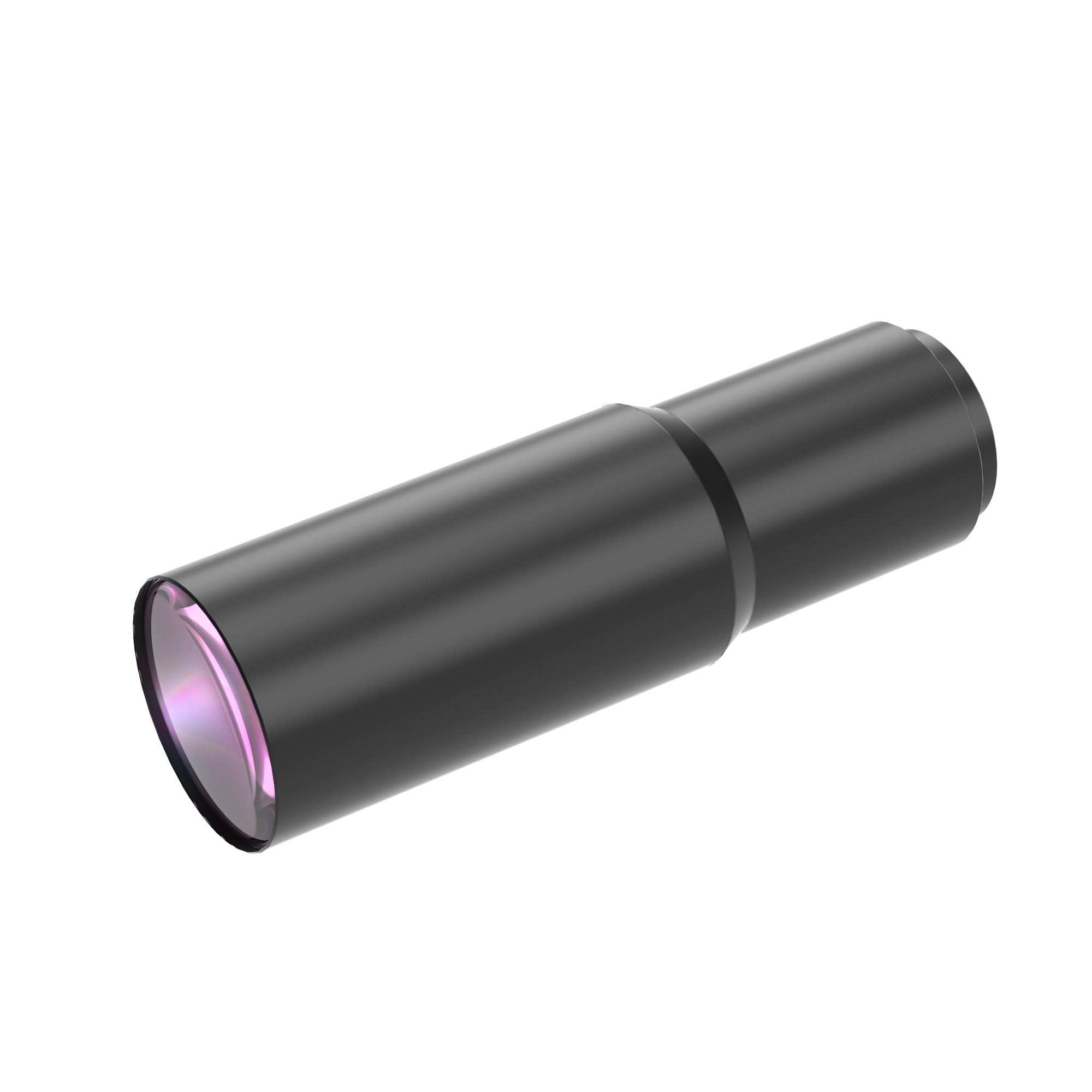

1.1" 0.11X Industrial Lenses | WH011-1030A-111 COOLENS®
$0.00 USD
-
Return & Refund Policy
-
Fast Delivery
-
One-on-one service
-
Reliable Manufacturer
-
Worldwide shipping
-
Multiple payment methods
| Model NO. | WH011-1030A-111 | Image Circle Diameter (Φmm) | 18(1.1") | ||||
| Magnification(x) | 0.11 | Working Distance(mm) | 1030 | ||||
| NA | 0.0091 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 6 | ||||
| MTF30 (lp/mm) | 122 | Object Resolution(μm) | 36.7 | ||||
| Depth of Field(mm) | 39.7 | Distortion Typical(% max) | 0.15 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 100.9 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 25 | ||||
| Filter Screw Size | M32x0.5 | ||||||
| Field of View (mm x mm) | |||||||
| 1"(13.13×8.76) | 119.4×79.6 | ||||||
| 1.1"(14.19×10.38) | 129×94.4 | ||||||
Dimensions
Naming Rule
