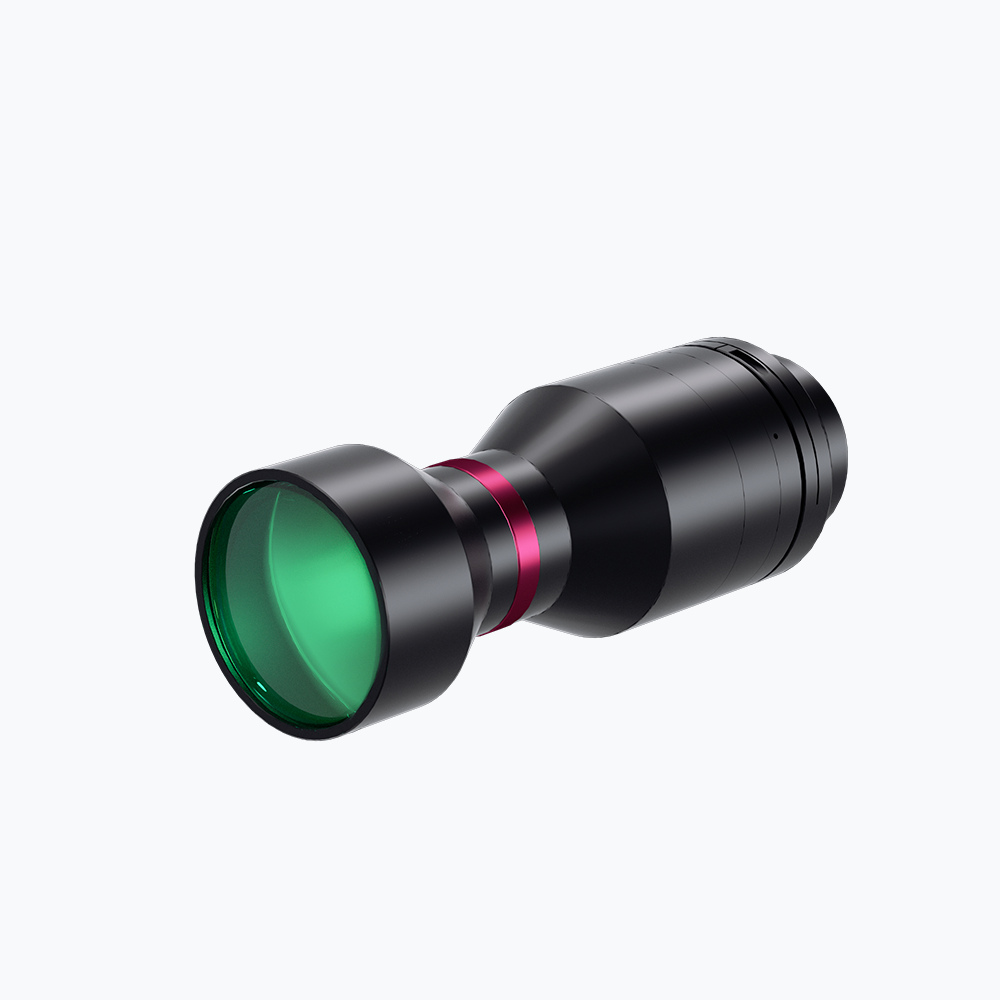

16K 1X Bi-Telecentric Lenses | DTCA16K-62-AL COOLENS®
$3,351.00 USD
-
Return & Refund Policy
-
Fast Delivery
-
One-on-one service
-
Reliable Manufacturer
-
Worldwide shipping
-
Multiple payment methods
| Model NO. | DTCA16K-62-AL | Image Circle Diameter (Φmm) | 62(16K) | ||||
| Magnification(x) | 1 | Working Distance(mm) | 102 | ||||
| NA | 0.0713 | Type | Bi-Telecentric | ||||
| Mount | M72 | Object Field of View(Φmm) | 62 | ||||
| Best Aperture(f/#) | 7 | MTF30 (lp/mm) | >110 | ||||
| Object Resolution(μm) | 4.7 | Depth of Field(mm) | ±0.3@F7.0 | ||||
| Distortion Typical(% max) | <0.1 | Telecentricity Typical (°max) | <0.62 | ||||
| Length of I/O(mm) | 400 | Length (mm) | 285.9 | ||||
| Weight(kg) | 3.1 | Iris Adjustable | No | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 0.6 | ||||
| Filter Screw Size | M96x0.75 | ||||||
| Field of View (mm × mm) |
KAI-47051(48.7x29.0) | 48.7x29.0 | |||||
| Linescan-12K 5um(61.44mm) | 61.4mm | ||||||
| Linescan-16K 3.5/3.53um(57.4mm) | 57.4mm | ||||||
Dimensions
Naming Rule
