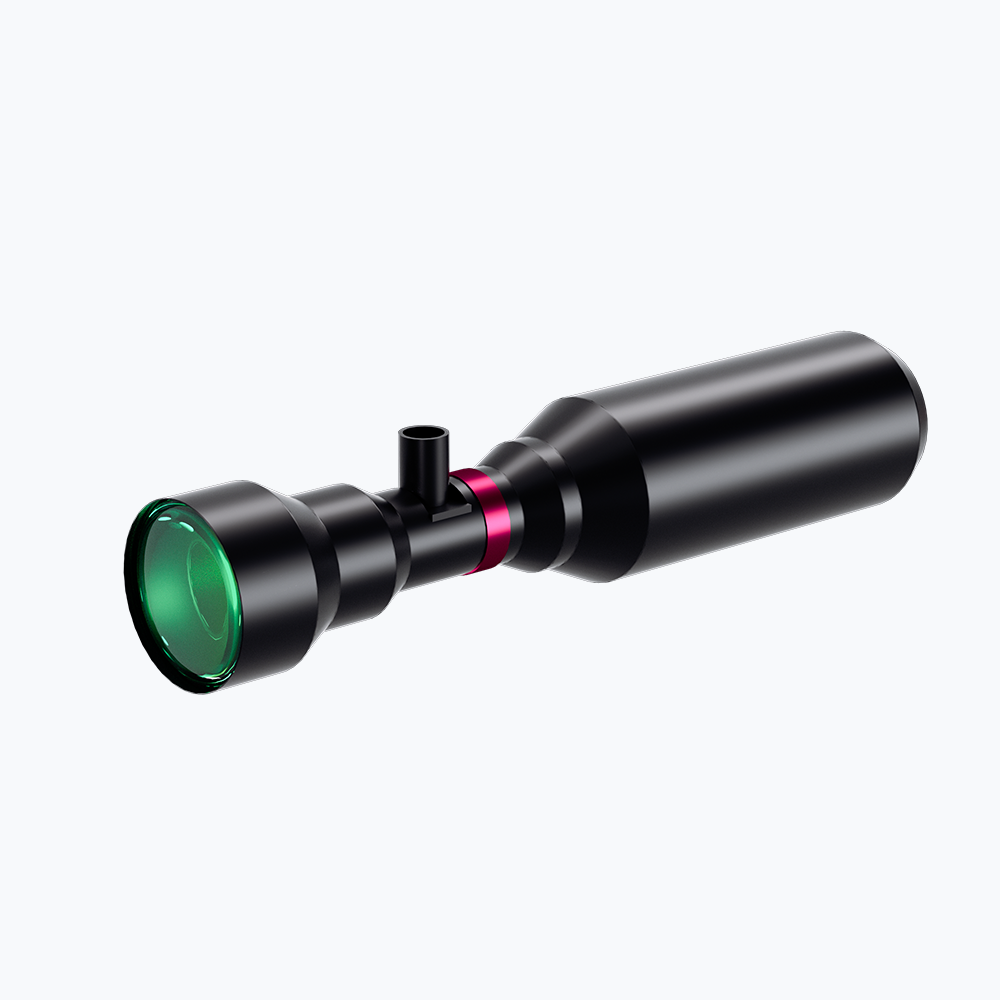

| Model NO. | DTCA175-28.2C-128-M42-AL | Image Circle Diameter (Φmm) | 28.2(1.75") | ||||
| Magnification(x) | 1 | Working Distance(mm) | 128 | ||||
| NA | 0.0454 | Type | Bi-Telecentric | ||||
| Mount | M42 | Object Field of View(Φmm) | 28.2 | ||||
| Best Aperture(f/#) | 11 | MTF30 (lp/mm) | 76 | ||||
| Object Resolution(μm) | 7.4 | Depth of Field(mm) | 0.9 | ||||
| Distortion Typical(% max) | 0.02 | Telecentricity Typical (°max) | ＜0.1 | ||||
| Length of I/O(mm) | 458 | Length (mm) | 317.9 | ||||
| Weight(kg) | 1 | Iris Adjustable | No | ||||
| With Coaxial Illumination Port | Yes | Measured Depth of Field (mm) | 1.2 | ||||
| Filter Screw Size | M60x0.5 | ||||||
| Field of View (mm × mm) |
1.75" IMX342 (22.3X16.7) | 22.3x16.7 | |||||
