1" 12mm Fixed Focal Length Lens | MFA110-H12 COOLENS®
$251.00 USD
-
Return & Refund Policy
-
Fast Delivery
-
One-on-one service
-
Reliable Manufacturer
-
Worldwide shipping
-
Multiple payment methods
| Model No. | MFA110-H12 | Image Circle Diameter (Φmm) | 1" | ||||
| Focal Length(mm) | 12 | Magnification(x) | Adjustable | ||||
| Working Distance(mm) | Min.100 | MTF30 (lp/mm) | 120 | ||||
| Type | Fixed Focal Length | Support Cameras | 20M | ||||
| Mount | C | Back Focal Length | 11.5mm in Air | ||||
| F NO. | F2.8 - F16 | Filter Size | / | ||||
| Max. Image Format | 1" (φ17.6mm) | Distortion | ＜0.1% | ||||
| Angle of View | D | 1.1'' | 70.5° | 1" | 65.7° | 2/3" | 48.3° |
| H | 59.8° | 53.5° | 37.8° | ||||
| V | 46.2° | 43.3° | 32.1° | ||||
| M.o.D | 0.1m | Object Dimension at M.o.D | 1.1" | 145.95mm x 105.37mm | |||
| Weight | 169.0g | 1" | 127.71mm x 99.90mm | ||||
| Flange Back Length | 17.526mm in Air | 2/3" | 85.49mm x 71.25mm | ||||
| Structure | 10 Groups, 12 Elements | Operating Temperature | -10°C — 50°C | ||||
| Operation of Iris | Range | F2.8 - F16 | Operation of Focus | Range | F2.8 - F16 | ||
| Angle | 55.5° | Angle | 150.55° | ||||
| Spectral Transmission | AT 436nm-656nmT≥85% | ||||||
Dimensions

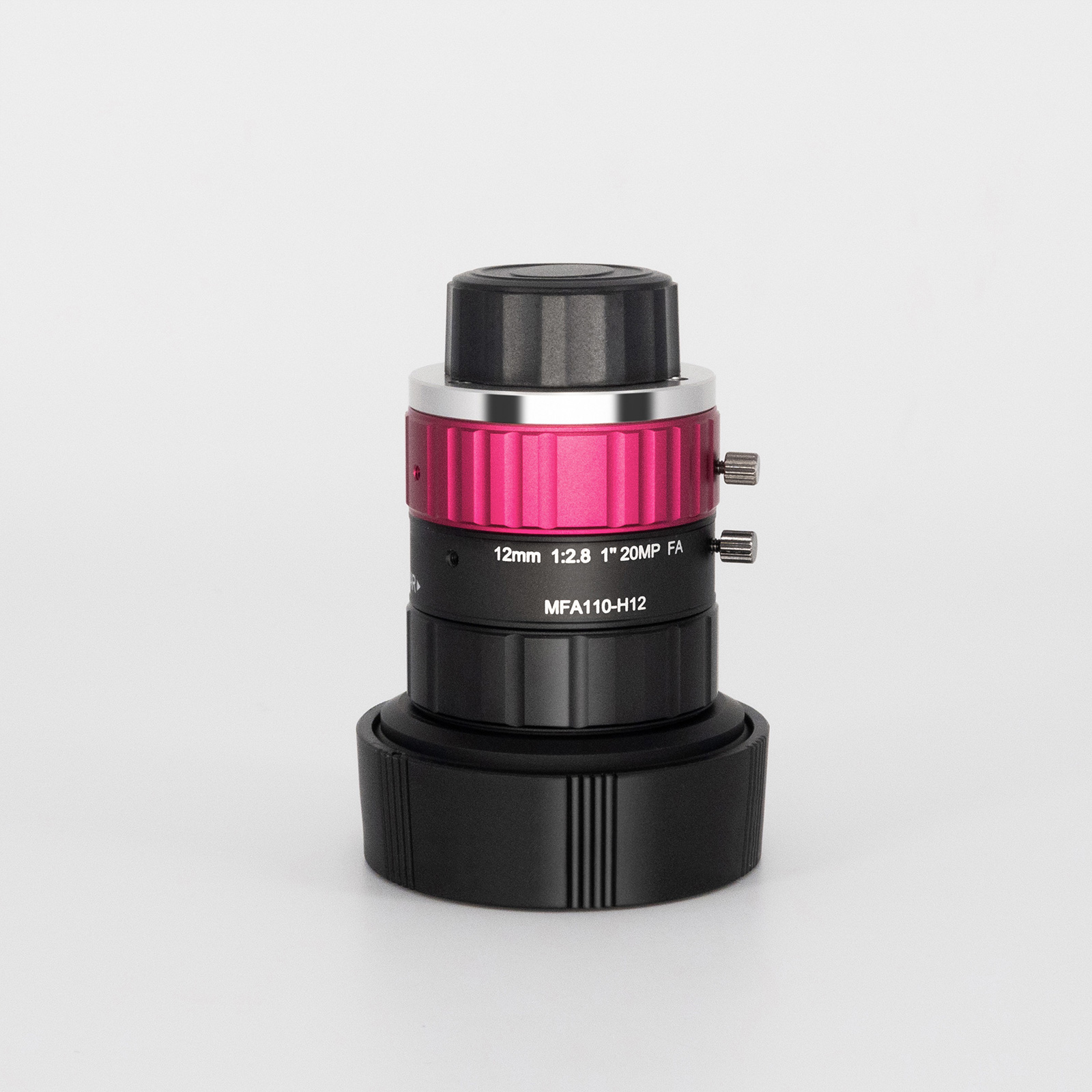

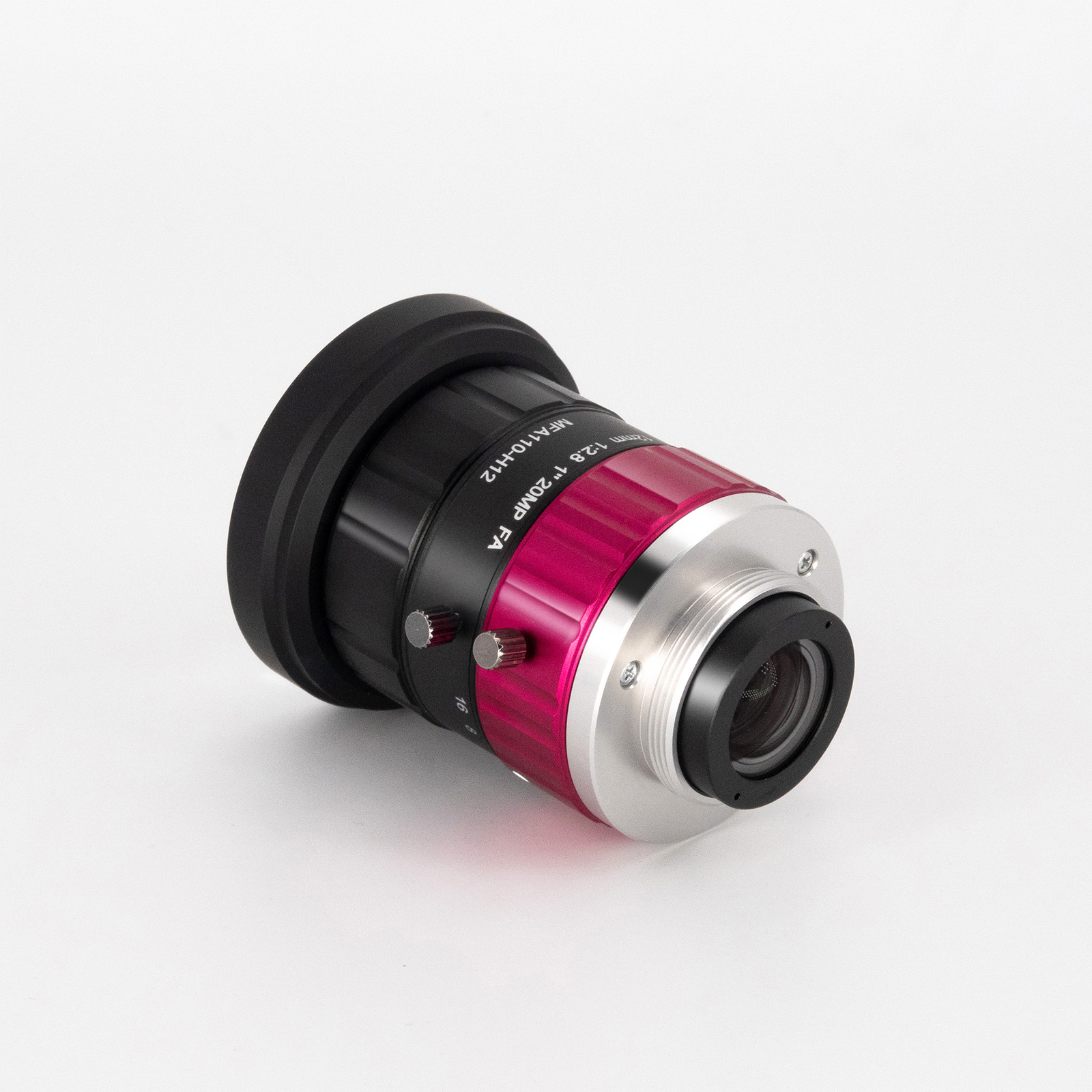

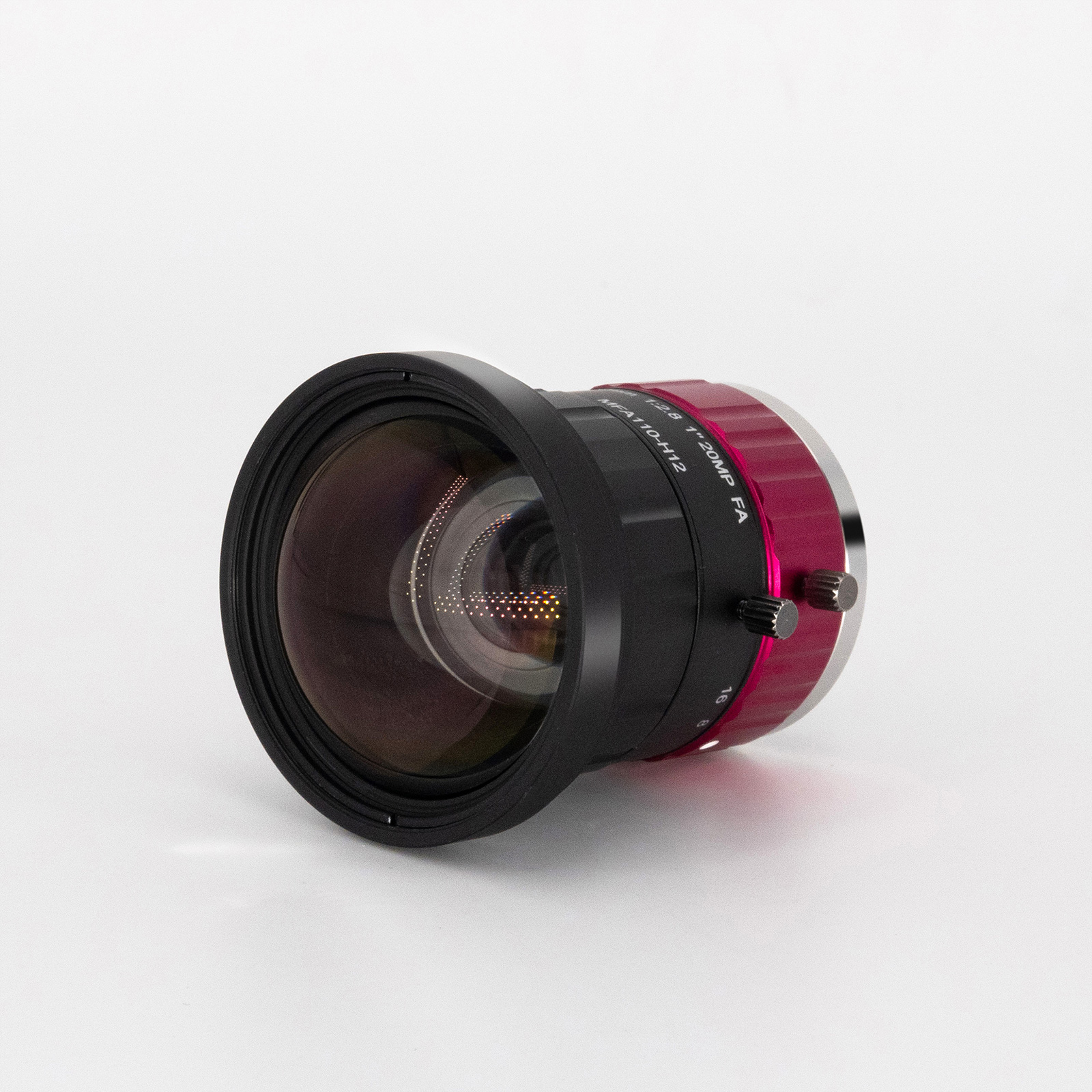

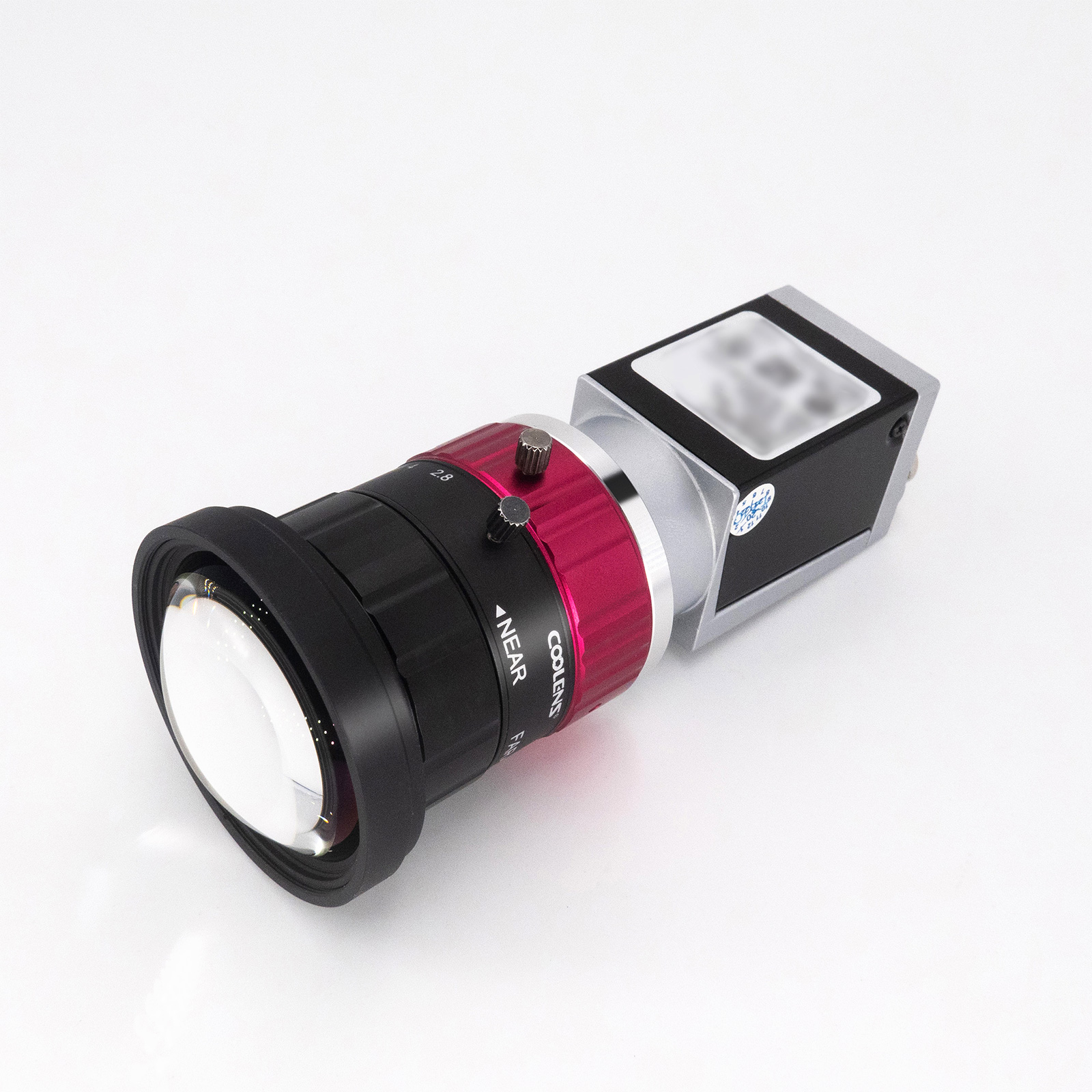

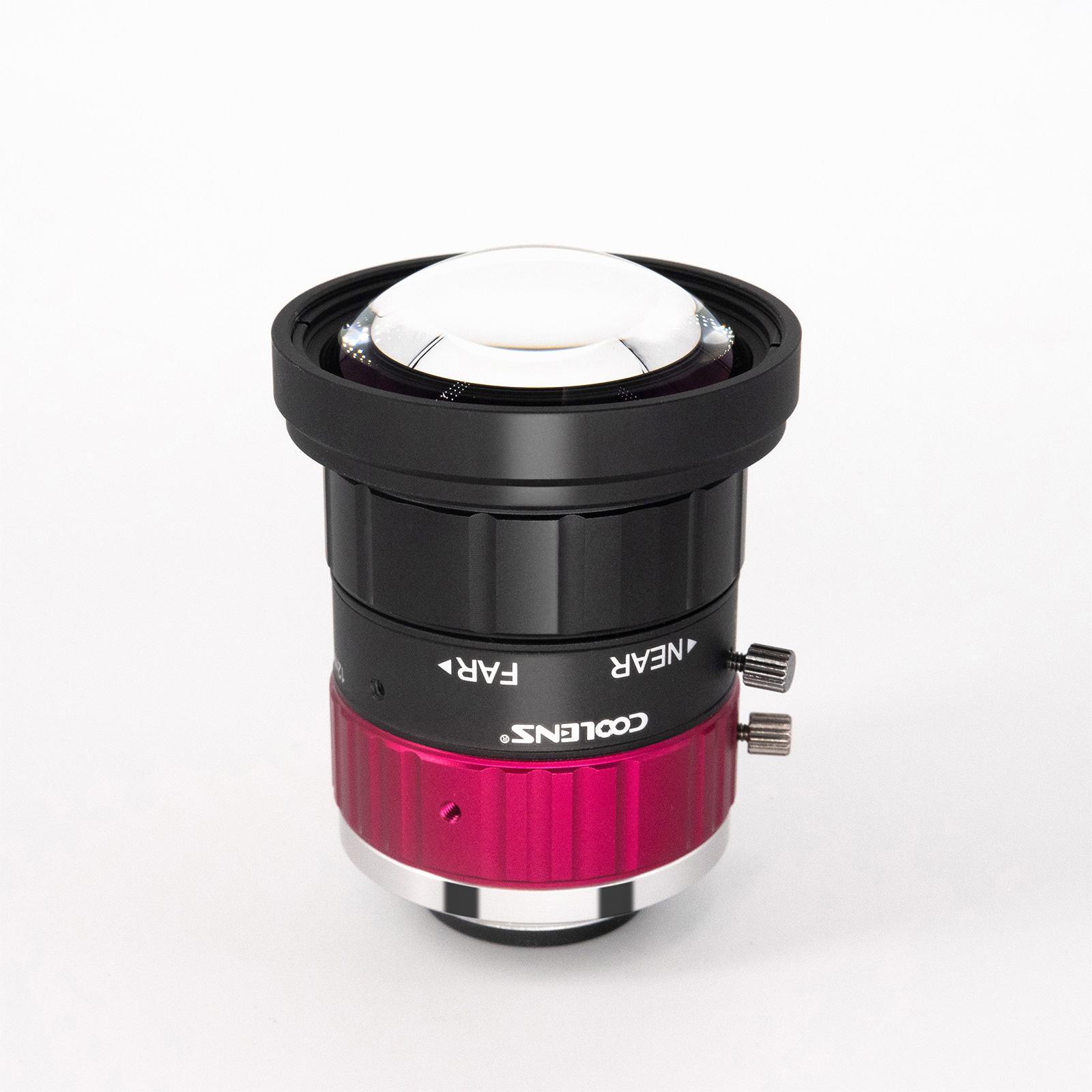

Product Photograph
