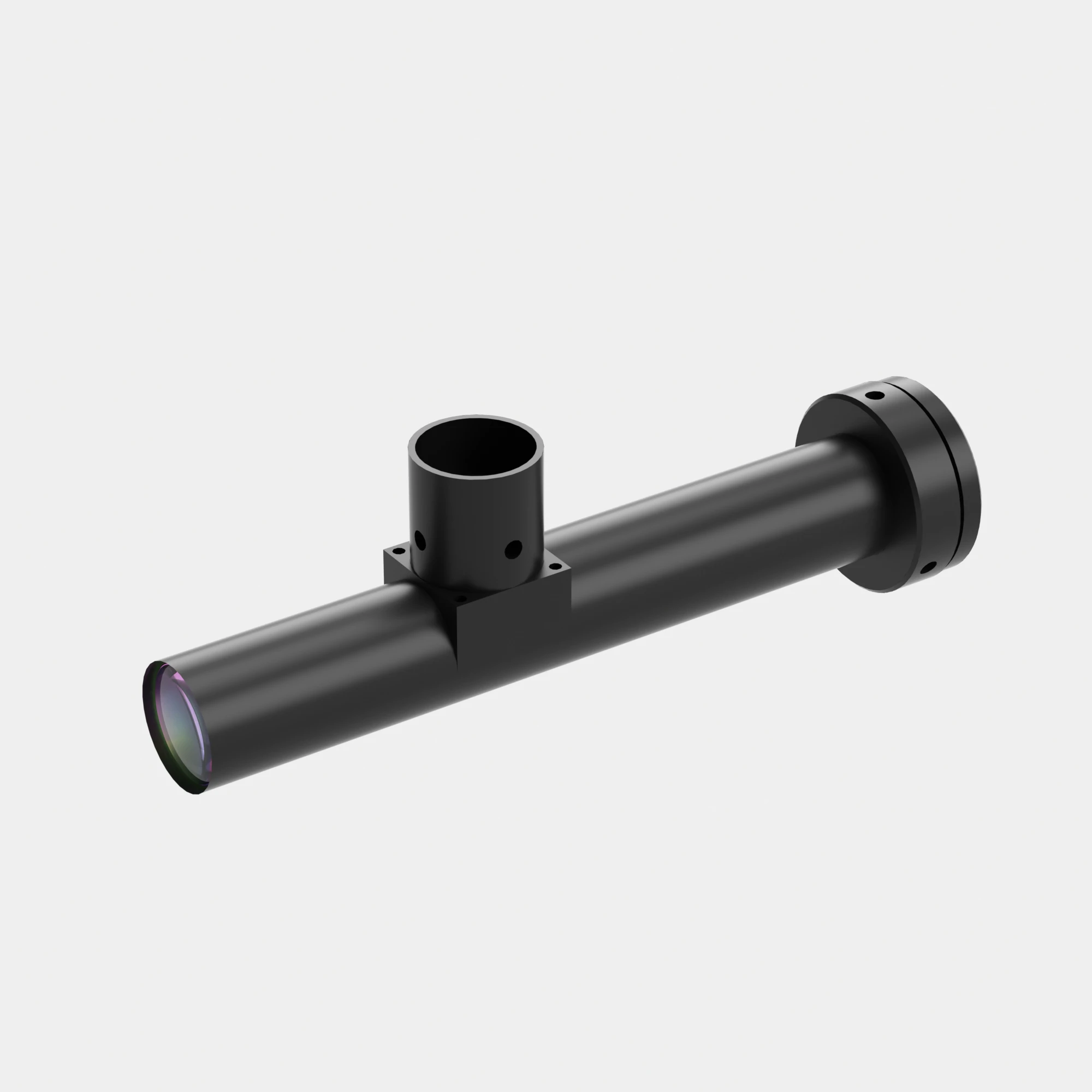

1/3" 4X Telecentric Lenses | WWL40-65C COOLENS®
$236.00 USD
-
Return & Refund Policy
-
Fast Delivery
-
One-on-one service
-
Reliable Manufacturer
-
Worldwide shipping
-
Multiple payment methods
| Model NO. | WWL40-65C | Image Circle Diameter (Φmm) | 6(1/3") | ||||
| Magnification(x) | 4.0 | Working Distance(mm) | 65 | ||||
| NA | 0.0562 | Type | Telecentric | ||||
| Mount | C | Best Aperture(f/#) | 34.9 | ||||
| MTF30 (lp/mm) | 27 | Object Resolution(μm) | 6 | ||||
| Depth of Field(mm) | 0.2 | Distortion Typical(% max) | 0.03 | ||||
| Telecentricity Typical (°max) | 0.5 | Length (mm) | 103.8 | ||||
| With Coaxial Illumination Port | Yes | Measured Depth of Field (mm) | 0.2 | ||||
| Filter Screw Size | / | ||||||
| Field of View (mm x mm) | |||||||
| 1/4" (3.2x2.4) | 0.8x0.6 | ||||||
|
1/3" (4.8x3.6)
|
1.2x0.9 | ||||||
Dimensions
Naming Rule
