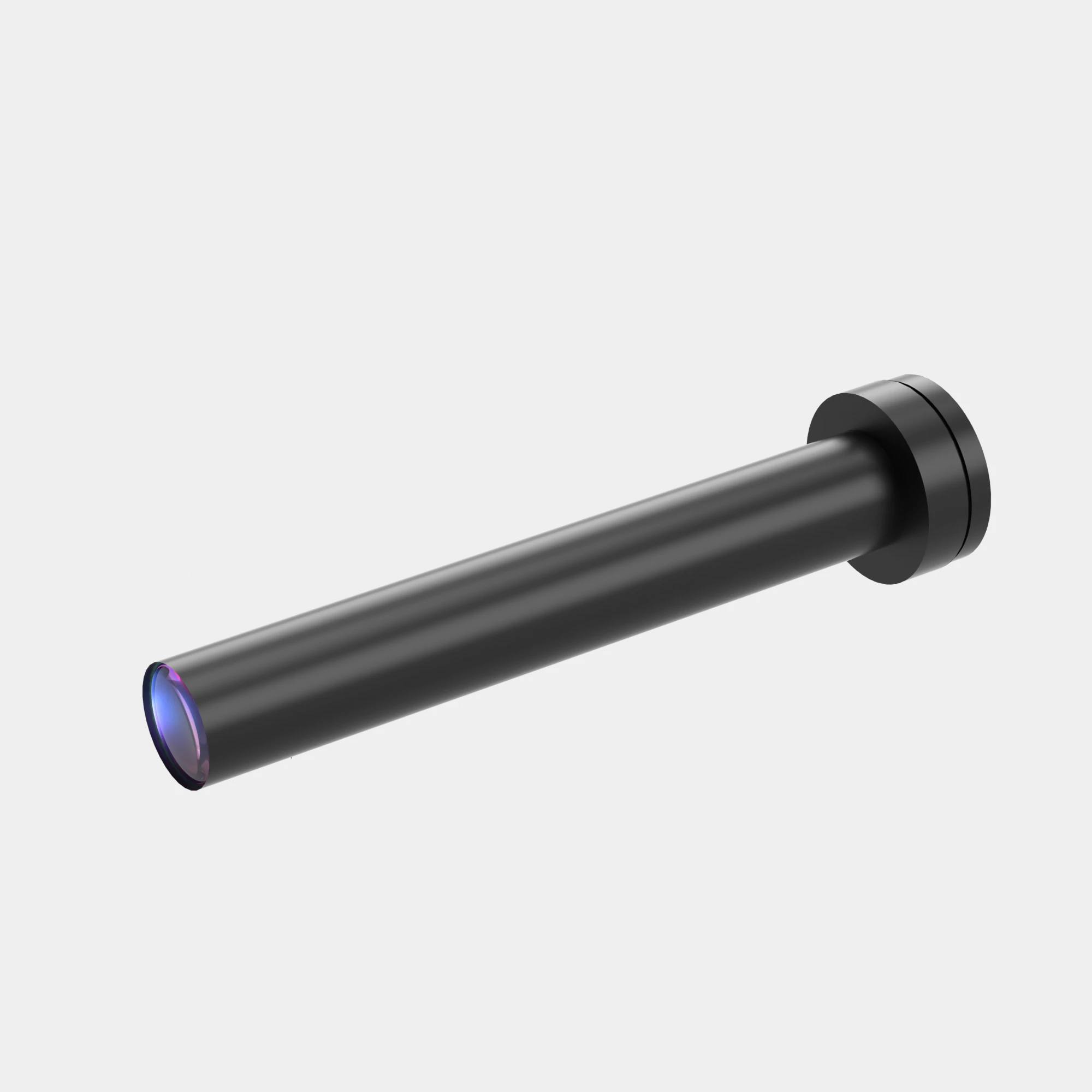

1/3" 2.5X Telecentric Lenses | WWL25-110A COOLENS®
$176.00 USD
-
Return & Refund Policy
-
Fast Delivery
-
One-on-one service
-
Reliable Manufacturer
-
Worldwide shipping
-
Multiple payment methods
| Model NO. | WWL25-110A | Image Circle Diameter (Φmm) | 6(1/3") | ||||
| Magnification(x) | 2.5 | Working Distance(mm) | 110 | ||||
| NA | 0.0461 | Type | Telecentric | ||||
| Mount | C | Best Aperture(f/#) | 26.7 | ||||
| MTF30 (lp/mm) | 35 | Object Resolution(μm) | 7.3 | ||||
| Depth of Field(mm) | 0.3 | Distortion Typical(% max) | 0.1 | ||||
| Telecentricity Typical (°max) | 0.001 | Length (mm) | 109.7 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 0.4 | ||||
| Filter Screw Size | / | ||||||
| Field of View (mm x mm) | |||||||
| 1/4" (3.2x2.4) | 1.3x1.0 | ||||||
|
1/3" (4.8x3.6)
|
1.9x1.4 | ||||||
