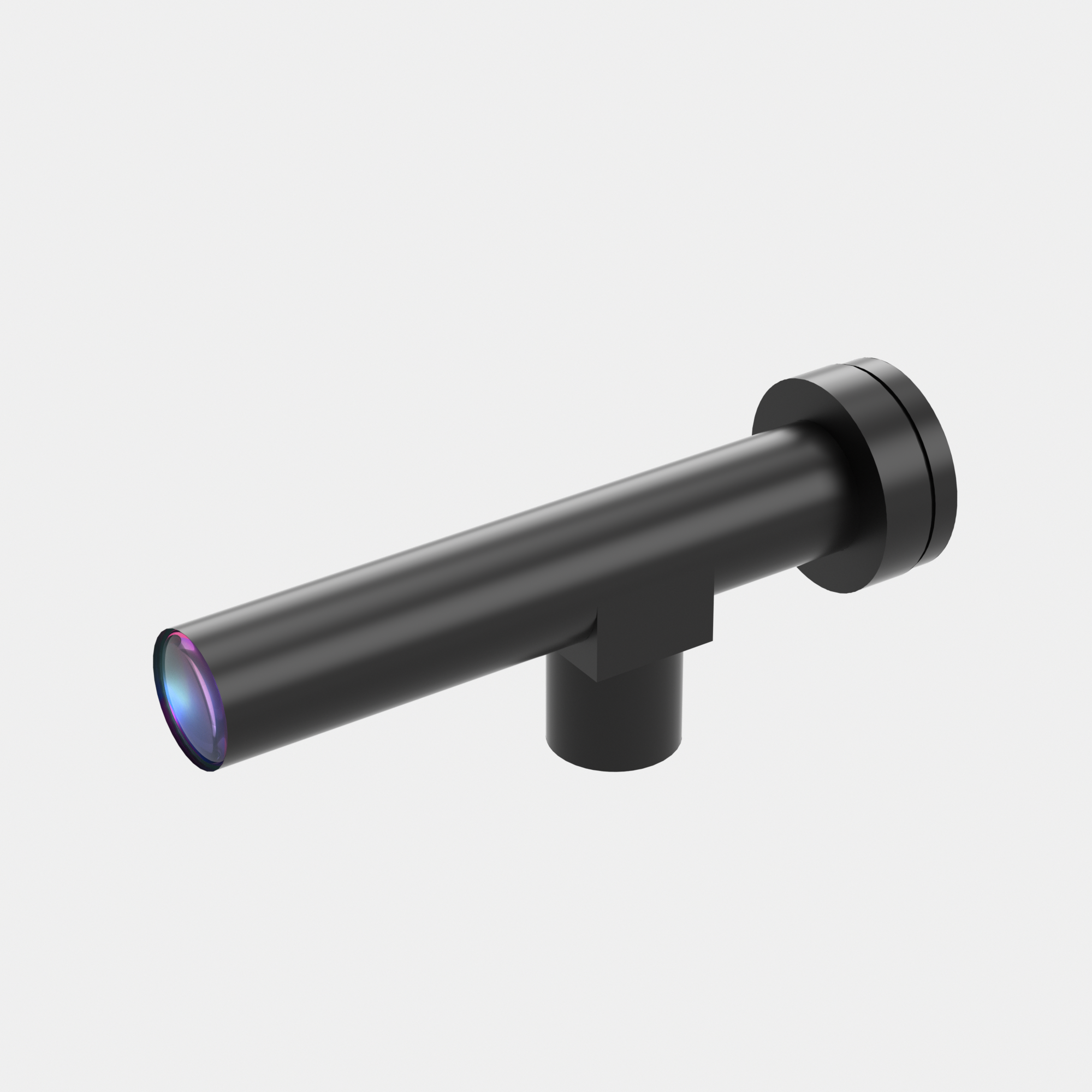

| Model NO. | WWL15-150CT | Image Circle Diameter (Φmm) | 6(1/3") | ||||
| Magnification(x) | 1.5 | Working Distance(mm) | 150 | ||||
| NA | 0.0278 | Type | Telecentric | ||||
| Mount | C | Best Aperture(f/#) | 27.1 | ||||
| MTF30 (lp/mm) | 35 | Object Resolution(μm) | 12.1 | ||||
| Depth of Field(mm) | 1 | Distortion Typical(% max) | 0.25 | ||||
| Telecentricity Typical (°max) | 0.01 | Length (mm) | 90.2 | ||||
| With Coaxial Illumination Port | Yes | Measured Depth of Field (mm) | 1 | ||||
| Filter Screw Size | / | ||||||
| Field of View (mm x mm) | |||||||
| 1/4" (3.2x2.4) | 2.1x1.6 | ||||||
|
1/3" (4.8x3.6)
|
3.2x2.4 | ||||||
