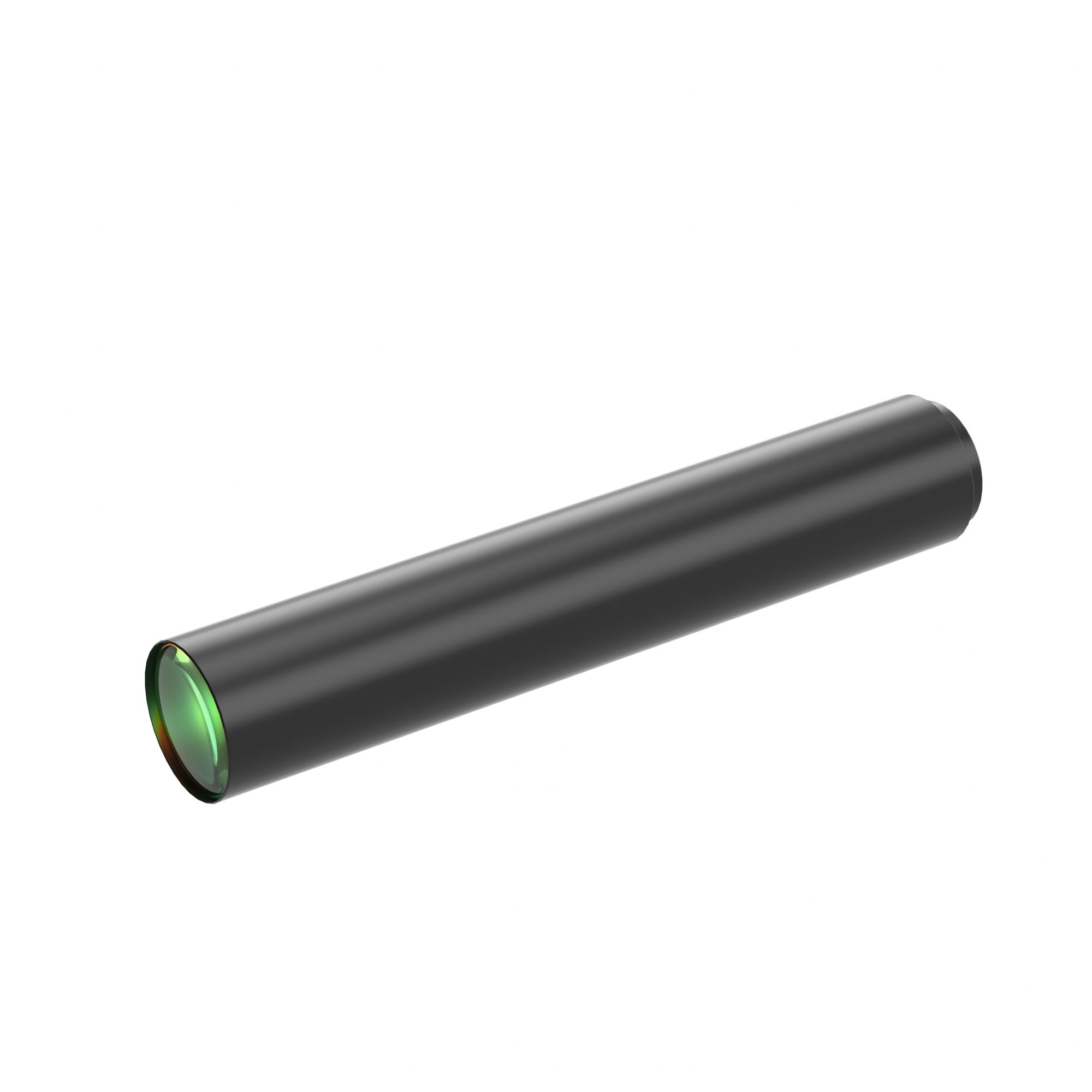

| Model NO. | WH05-550A-130 | Image Circle Diameter (Φmm) | 6(1/3") | ||||
| Magnification(x) | 0.5 | Working Distance(mm) | 550 | ||||
| NA | 0.0173 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 14.3 | ||||
| MTF30 (lp/mm) | 60 | Object Resolution(μm) | 19.4 | ||||
| Depth of Field(mm) | 4.6 | Distortion Typical(% max) | 0.3 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 164.2 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 2.6 | ||||
| Filter Screw Size | M25x0.5 | ||||||
|
Field of View (mm x mm) |
|||||||
| 1/3"(4.8x3.6) | 9.6x7.2 | ||||||
