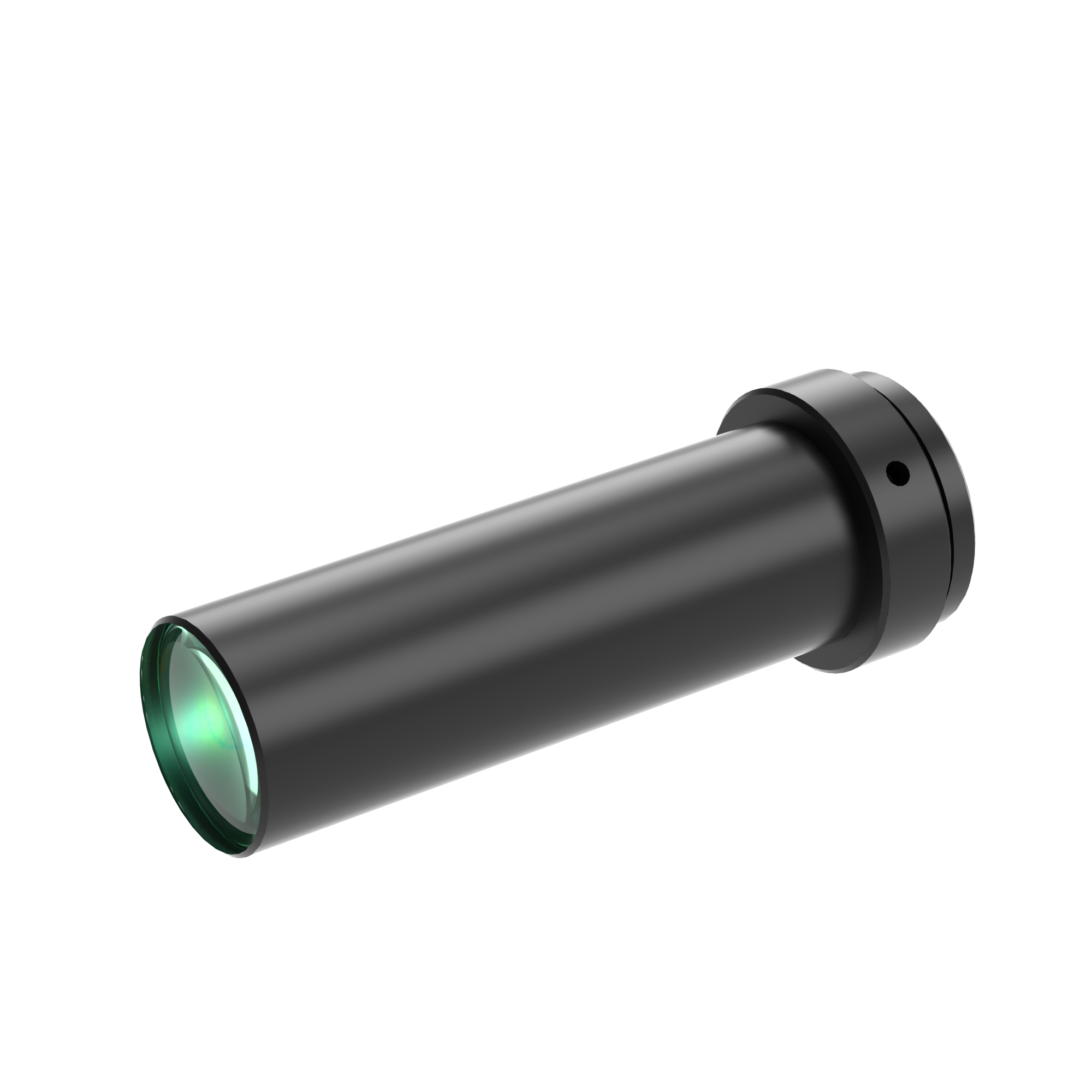

| Model NO. | WH046-65A-130 | Image Circle Diameter (Φmm) | 6(1/3") | ||||
| Magnification(x) | 0.46 | Working Distance(mm) | 65 | ||||
| NA | 0.0231 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 10 | ||||
| MTF30 (lp/mm) | 100 | Object Resolution(μm) | 14.5 | ||||
| Depth of Field(mm) | 3.8 | Distortion Typical(% max) | 0.1 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 72.3 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 1.9 | ||||
| Filter Screw Size | / | ||||||
|
Field of View (mm x mm) |
|||||||
| 1/4"(3.2x2.4) | 7.0x5.2 | ||||||
| 1/3"(4.8x3.6) | 10.4x7.8 | ||||||
