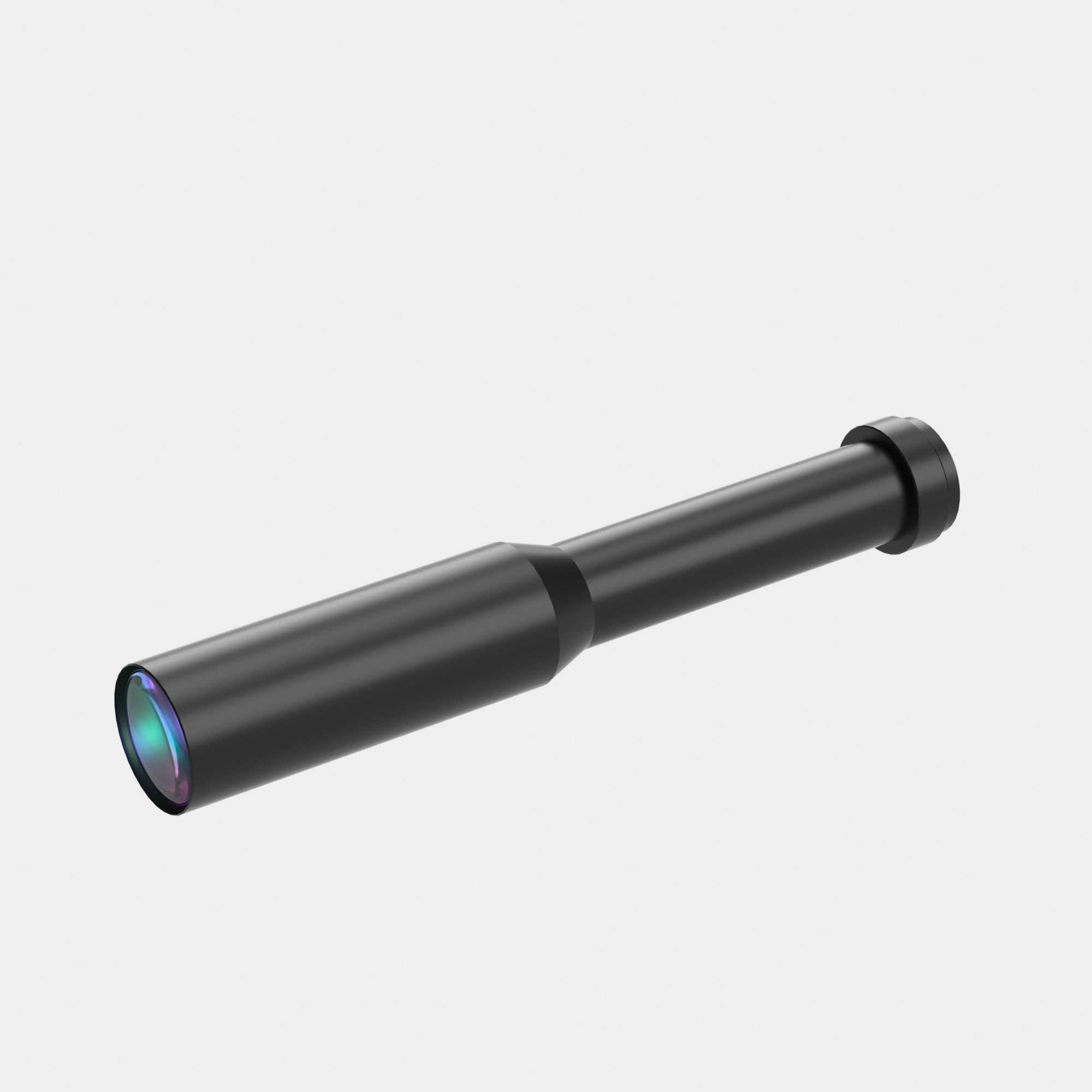

| Model NO. | WH08-570A-125 | Image Circle Diameter (Φmm) | 7.2(1/2.5") | ||||
| Magnification(x) | 0.8 | Working Distance(mm) | 570 | ||||
| NA | 0.0167 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 23.9 | ||||
| MTF30 (lp/mm) | 40 | Object Resolution(μm) | 20 | ||||
| Depth of Field(mm) | 3 | Distortion Typical(% max) | 0.3 | ||||
| Telecentricity Typical (°max) | 0.1 | Length (mm) | 179.7 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 2.6 | ||||
| Filter Screw Size | M25x0.5 | ||||||
|
Field of View (mm x mm) |
|||||||
| 1/2.5"(5.7x4.3) | 7.1x5.4 | ||||||
