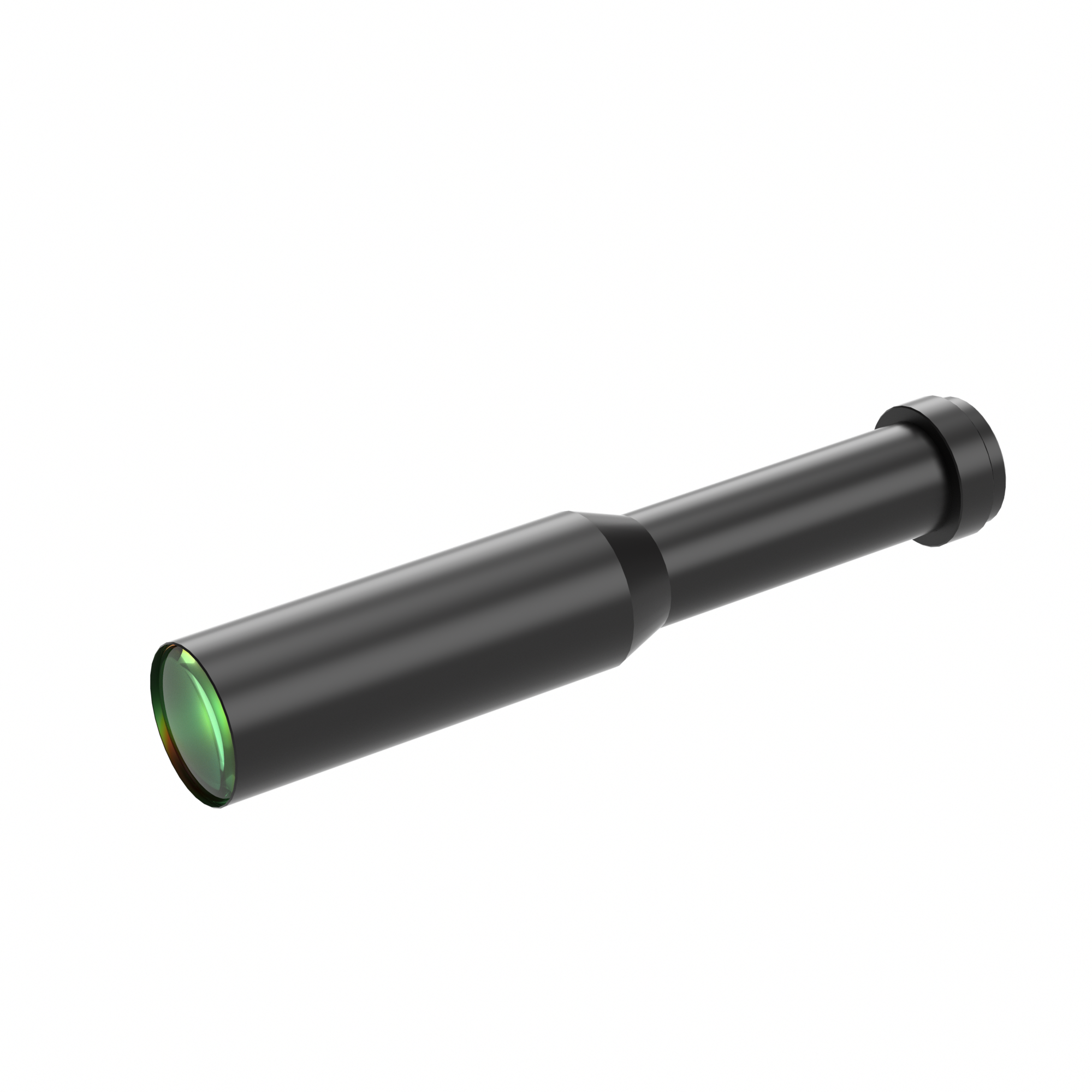

| Model NO. | WH05-820A-125 | Image Circle Diameter (Φmm) | 7.2(1/2.5") | ||||
| Magnification(x) | 0.5 | Working Distance(mm) | 820 | ||||
| NA | 0.0113 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 22.2 | ||||
| MTF30 (lp/mm) | 40 | Object Resolution(μm) | 29.7 | ||||
| Depth of Field(mm) | 7.1 | Distortion Typical(% max) | 0.3 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 165.8 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 6 | ||||
| Filter Screw Size | M25x0.5 | ||||||
|
Field of View (mm x mm) |
|||||||
| 1/2.5"(5.7x4.3) | 11.4x8.6 | ||||||
