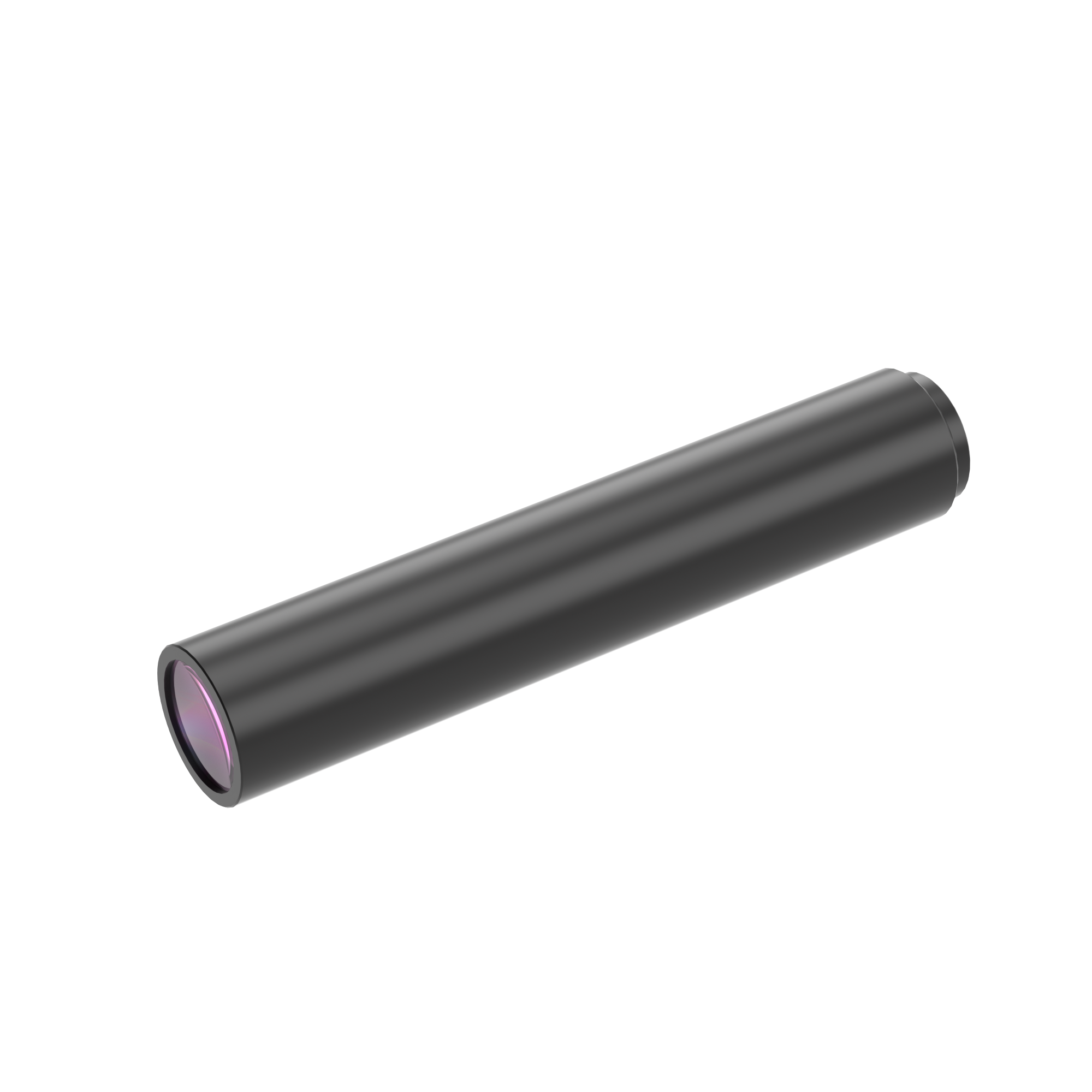

| Model NO. | WH035-330A-125 | Image Circle Diameter (Φmm) | 7.2(1/2.5") | ||||
| Magnification(x) | 0.35 | Working Distance(mm) | 330 | ||||
| NA | 0.0175 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 10 | ||||
| MTF30 (lp/mm) | 100 | Object Resolution(μm) | 19.2 | ||||
| Depth of Field(mm) | 6.5 | Distortion Typical(% max) | 0.003 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 152.3 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | / | ||||
| Filter Screw Size | M25x0.5 | ||||||
|
Field of View (mm x mm) |
|||||||
| 1/2.5"(5.7×4.27) | 16.29×12.2 | ||||||
