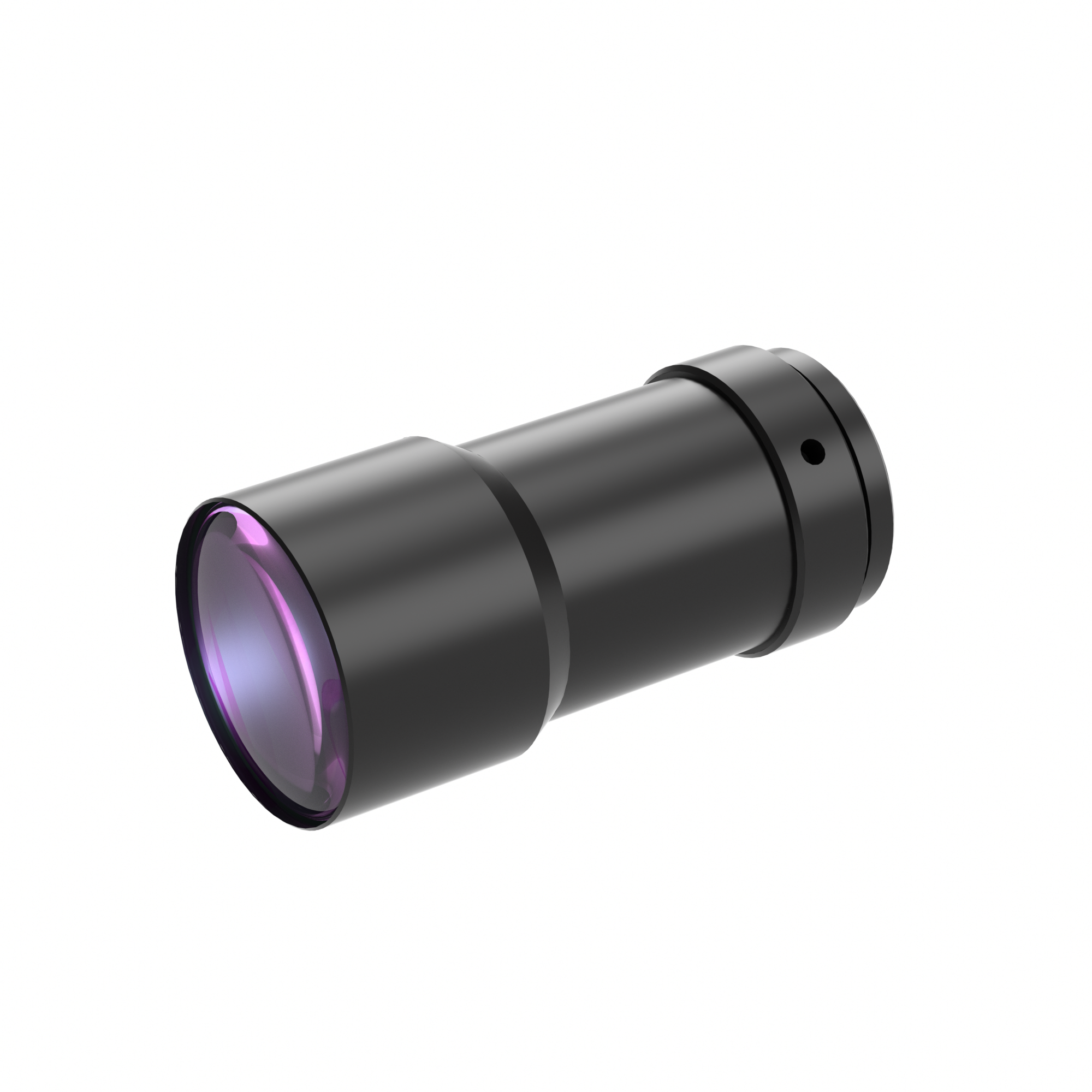

| Model NO. | WH026-110A-125 | Image Circle Diameter (Φmm) | 7.2(1/2.5") | ||||
| Magnification(x) | 0.26 | Working Distance(mm) | 110 | ||||
| NA | 0.0122 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 8.1 | ||||
| MTF30 (lp/mm) | 90 | Object Resolution(μm) | 27.5 | ||||
| Depth of Field(mm) | 9.6 | Distortion Typical(% max) | 0.6 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 55.7 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 13 | ||||
| Filter Screw Size | M27x0.5 | ||||||
| Field of View (mm x mm) | |||||||
| 1/2.5"(5.7x4.3) | 21.9x16.5 | ||||||
