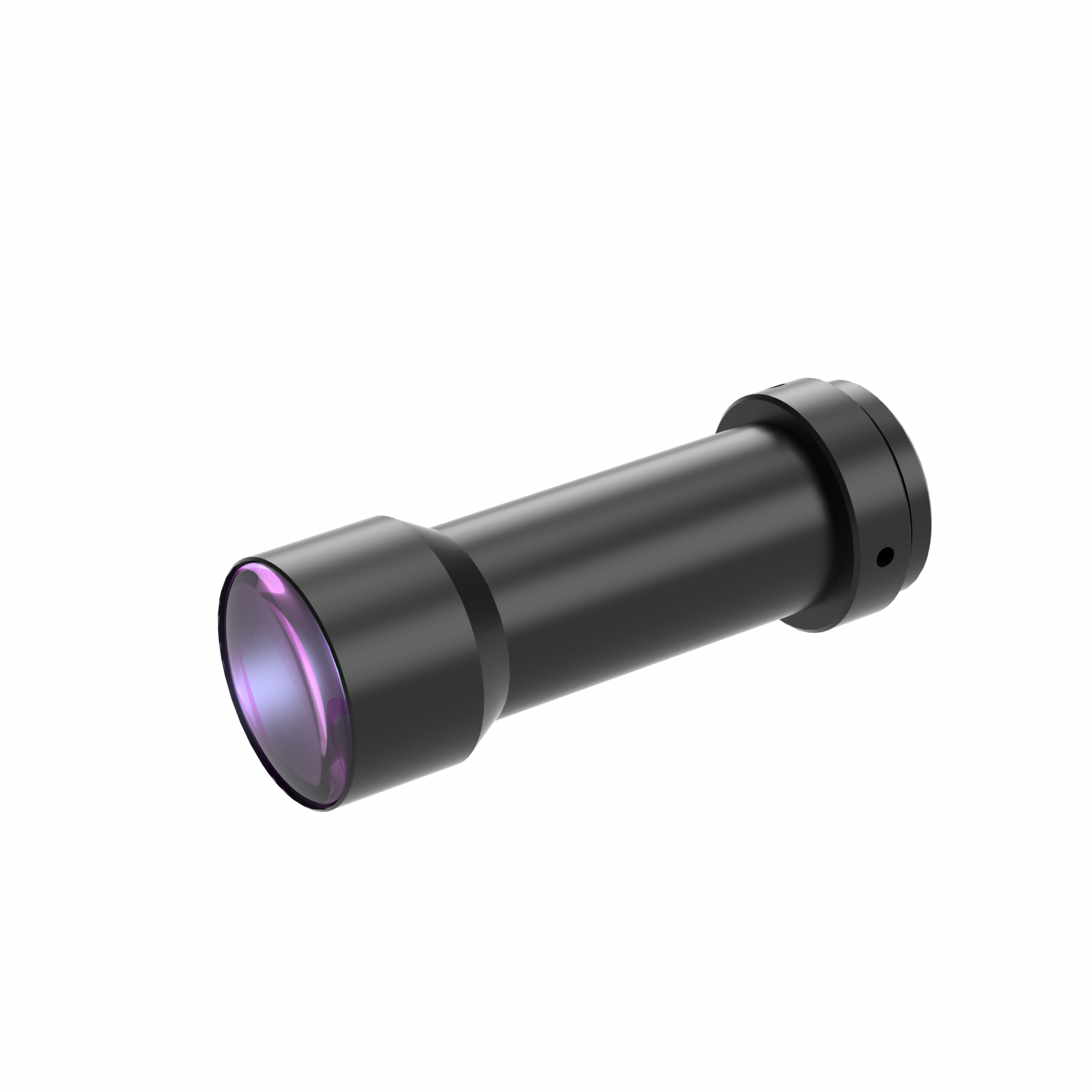

| Model NO. | WH022-280A-125 | Image Circle Diameter (Φmm) | 7.2(1/2.5") | ||||
| Magnification(x) | 0.22 | Working Distance(mm) | 280 | ||||
| NA | 0.0082 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 13.3 | ||||
| MTF30 (lp/mm) | 70 | Object Resolution(μm) | 40.9 | ||||
| Depth of Field(mm) | 22 | Distortion Typical(% max) | 0.35 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 73 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 9 | ||||
| Filter Screw Size | M25x0.5 | ||||||
| Field of View (mm x mm) | |||||||
| 1/2.5"(5.7x4.3) | 25.9x19.5 | ||||||
