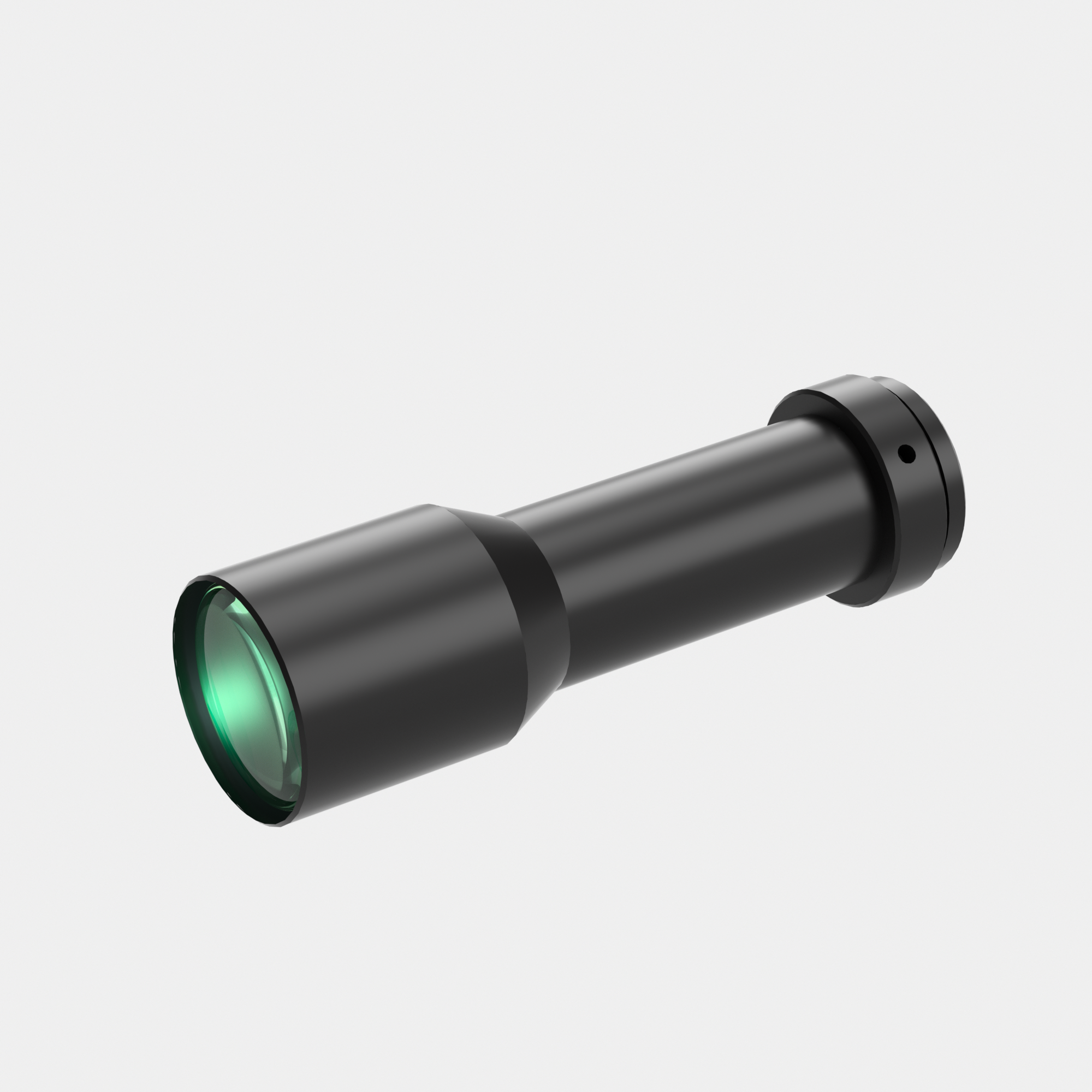

| Model NO. | WH019-345A-125 | Image Circle Diameter (Φmm) | 7.2(1/2.5") | ||||
| Magnification(x) | 0.19 | Working Distance(mm) | 345 | ||||
| NA | 0.0115 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 8.3 | ||||
| MTF30 (lp/mm) | 110 | Object Resolution(μm) | 29.2 | ||||
| Depth of Field(mm) | 18.4 | Distortion Typical(% max) | 0.1 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 92.2 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 6 | ||||
| Filter Screw Size | M25x0.5 | ||||||
| Field of View (mm x mm) | |||||||
| 1/4"(3.2x2.4) | 16.8x12.6 | ||||||
| 1/3"(4.8x3.6) | 25.3x18.9 | ||||||
| 1/2.5"(5.7x4.3) | 30.0x22.6 | ||||||
