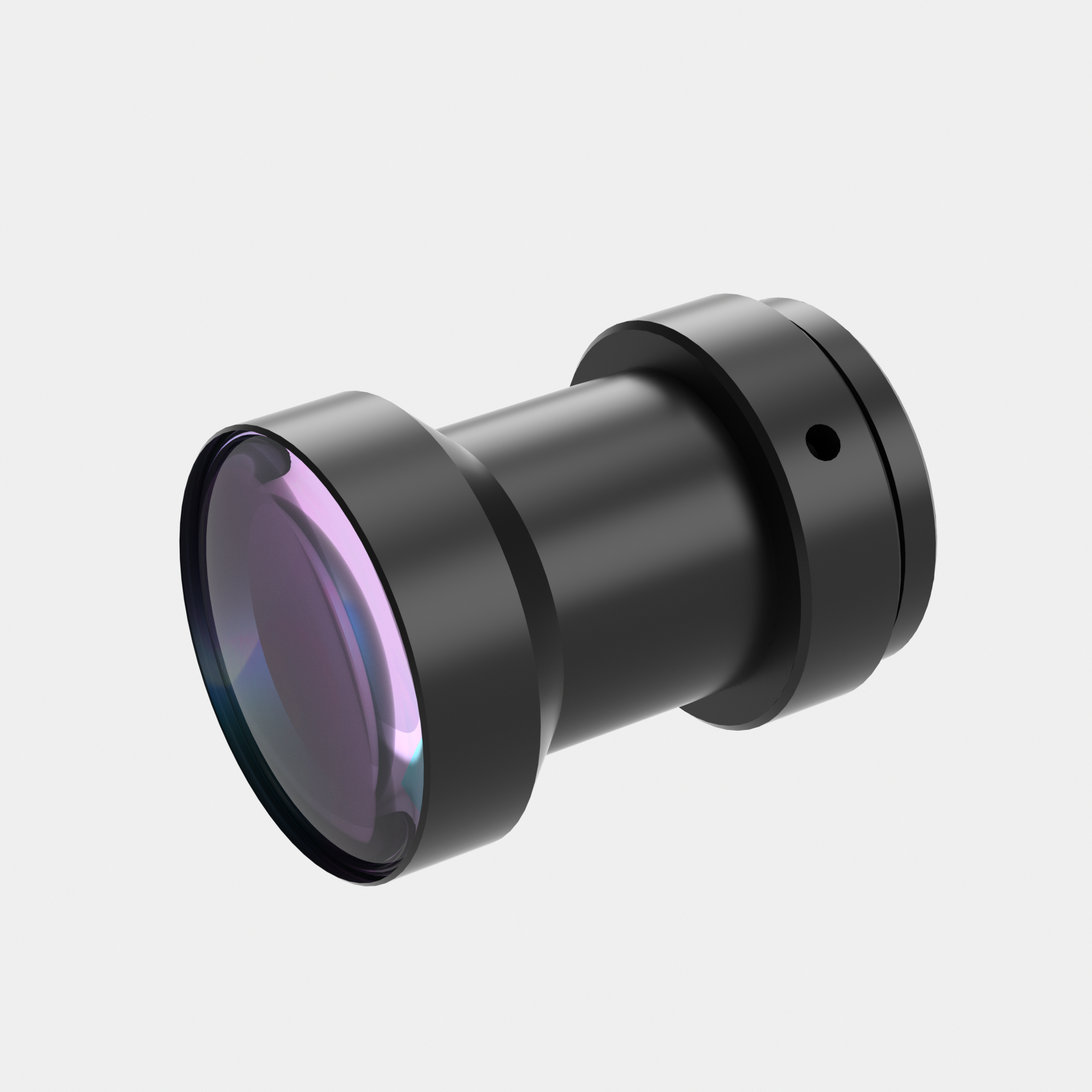

| Model NO. | WH018-160A-125 | Image Circle Diameter (Φmm) | 7.2(1/2.5") | ||||
| Magnification(x) | 0.18 | Working Distance(mm) | 160 | ||||
| NA | 0.0102 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 9 | ||||
| MTF30 (lp/mm) | 90 | Object Resolution(μm) | 33 | ||||
| Depth of Field(mm) | 22.2 | Distortion Typical(% max) | 0.3 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 37 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | / | ||||
| Filter Screw Size | / | ||||||
| Field of View (mm x mm) | |||||||
| 1/2.5" (5.7×4.28) | 31.7×23.8 | ||||||
