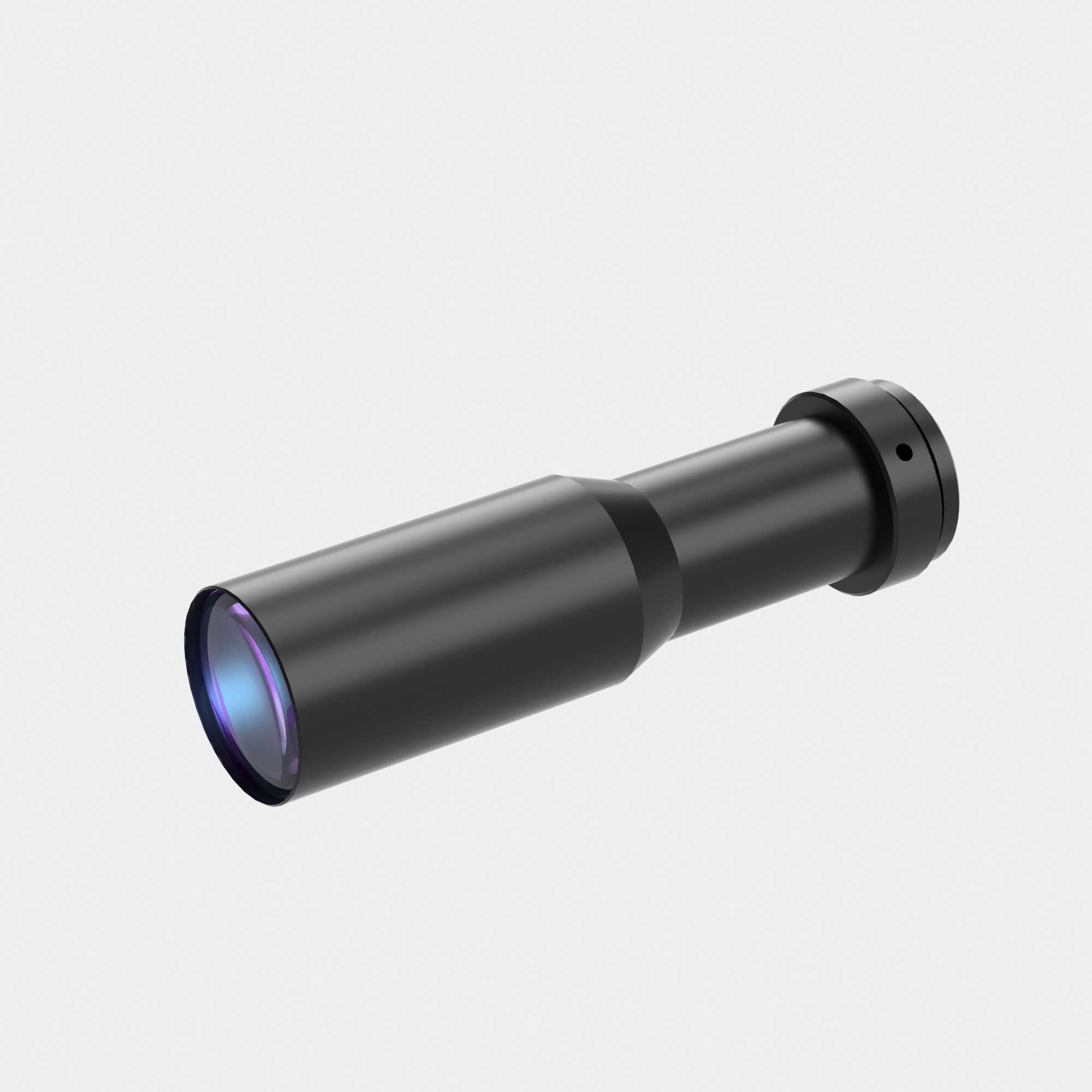

| Model NO. | WH014-300A | Image Circle Diameter (Φmm) | 7.2(1/2.5") | ||||
| Magnification(x) | 0.14 | Working Distance(mm) | 300 | ||||
| NA | 0.007 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 10 | ||||
| MTF30 (lp/mm) | 90 | Object Resolution(μm) | 47.9 | ||||
| Depth of Field(mm) | 40.8 | Distortion Typical(% max) | 0.1 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 97.6 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 13 | ||||
| Filter Screw Size | M25x0.5 | ||||||
| Field of View (mm x mm) | |||||||
| 1/2.5"(5.7x4.3) | 40.7x30.7 | ||||||
