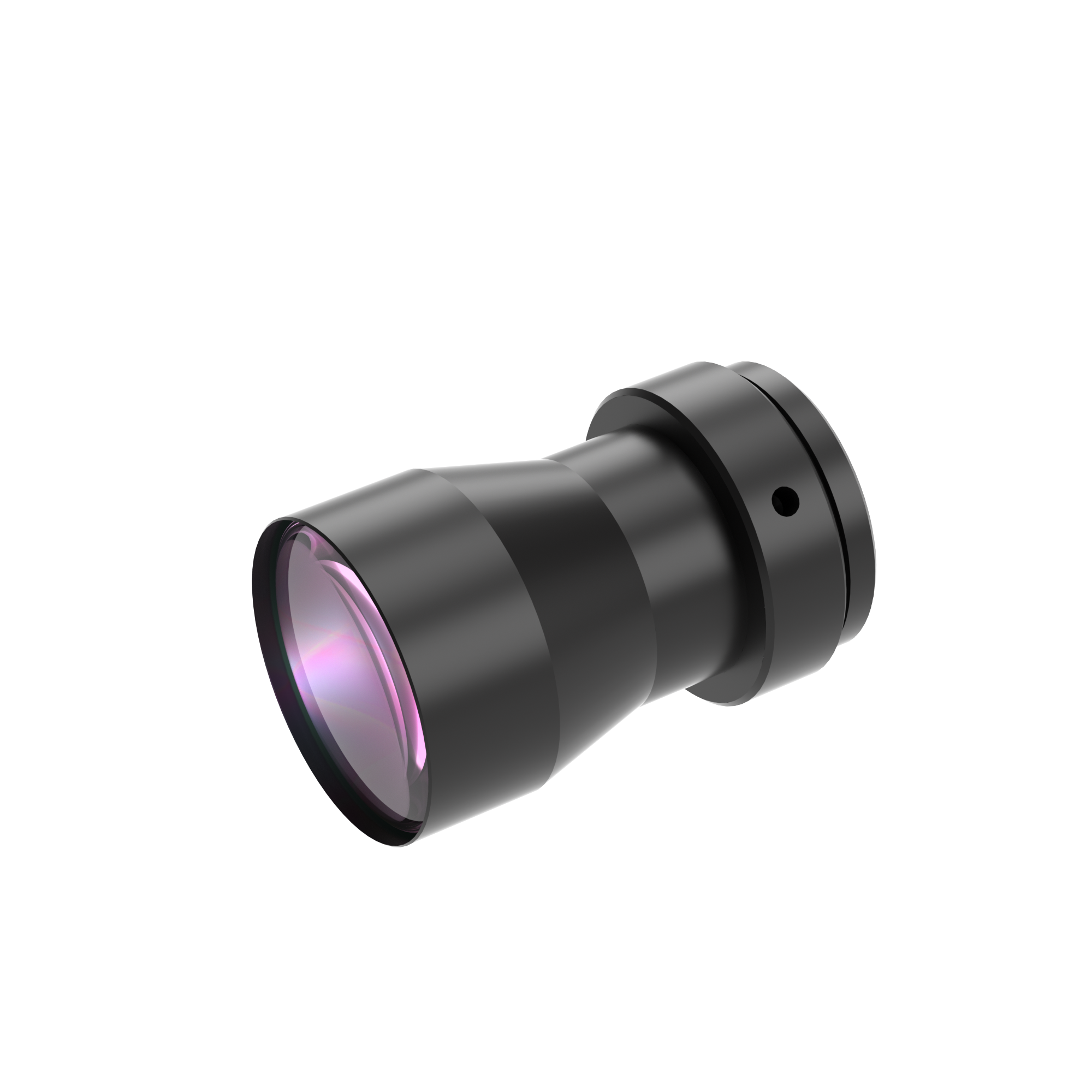

| Model NO. | WH0092-330A-125 | Image Circle Diameter (Φmm) | 7.2(1/2.5") | ||||
| Magnification(x) | 0.092 | Working Distance(mm) | 330 | ||||
| NA | 0.0038 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 12.2 | ||||
| MTF30 (lp/mm) | 65 | Object Resolution(μm) | 89.2 | ||||
| Depth of Field(mm) | 115.3 | Distortion Typical(% max) | 1 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 40.1 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 30 | ||||
| Filter Screw Size | M25x0.5 | ||||||
| Field of View (mm x mm) | |||||||
| 1/4"(3.2x2.4) | 34.8x26.1 | ||||||
| 1/3"(4.8x3.6) | 52.2x39.1 | ||||||
| 1/2.5"(5.7x4.3) | 61.9x46.7 | ||||||
