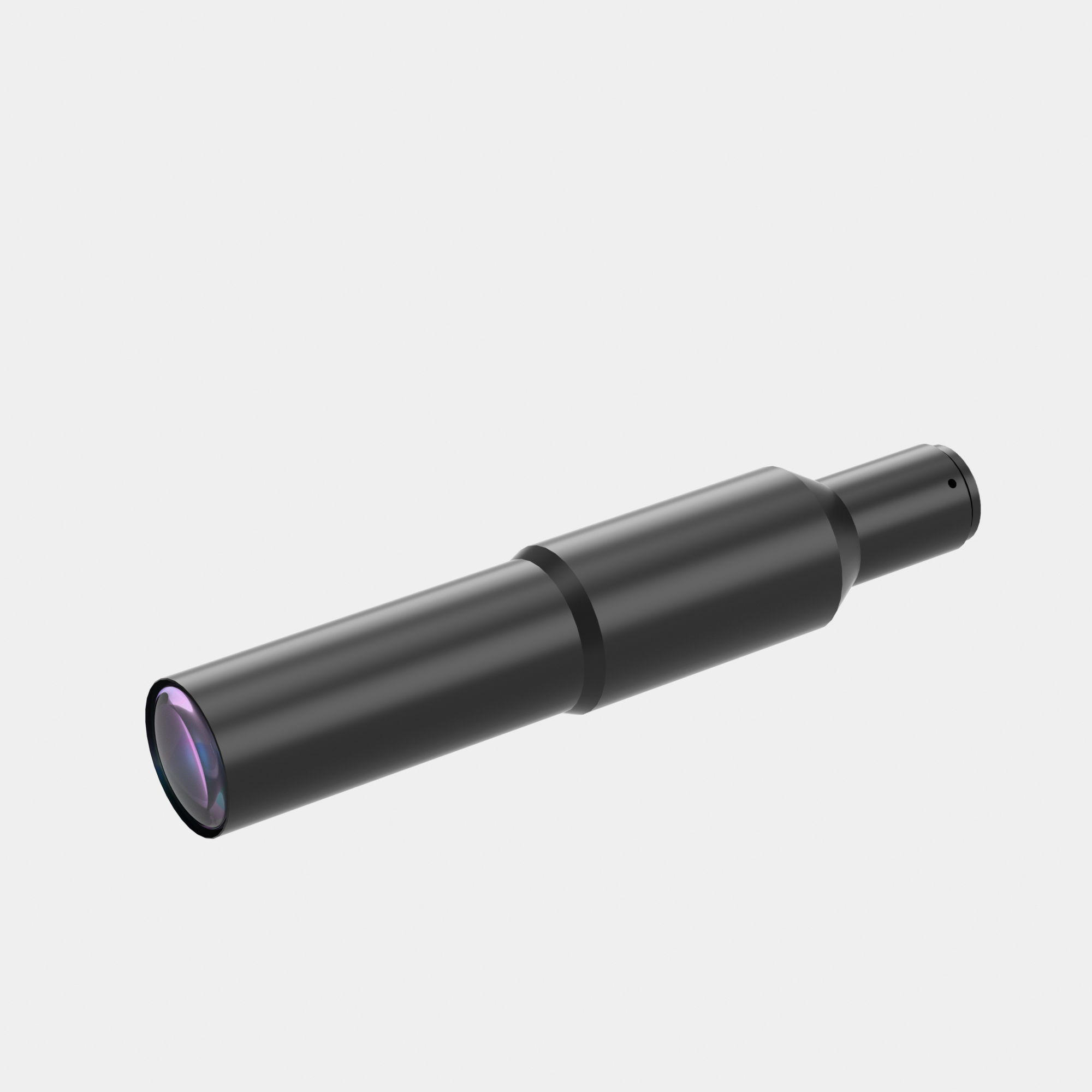

| Model NO. | WH03-530-123 | Image Circle Diameter (Φmm) | 8(1/2") | ||||
| Magnification(x) | 0.3 | Working Distance(mm) | 530 | ||||
| NA | 0.0188 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 8 | ||||
| MTF30 (lp/mm) | 100 | Object Resolution(μm) | 17.9 | ||||
| Depth of Field(mm) | 7.1 | Distortion Typical(% max) | 0.01 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 215.6 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | / | ||||
| Filter Screw Size | M35x0.5 | ||||||
|
Field of View (mm x mm) |
|||||||
| 1/2.3" 9J003 (6.44x4.62) | 21.5×15.4 | ||||||
