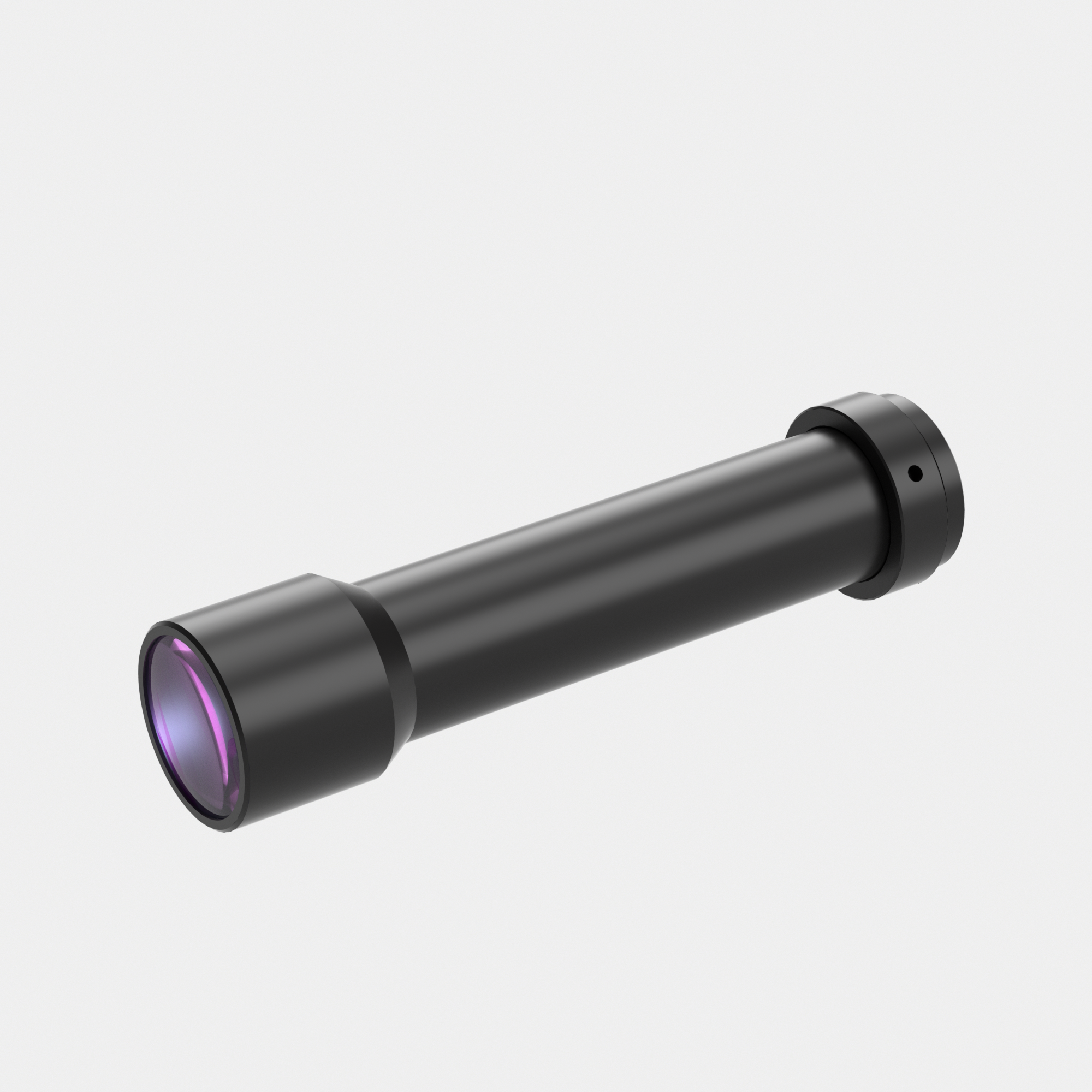

| Model NO. | WH03-240A-120 | Image Circle Diameter (Φmm) | 8(1/2") | ||||
| Magnification(x) | 0.3 | Working Distance(mm) | 240 | ||||
| NA | 0.0167 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 9 | ||||
| MTF30 (lp/mm) | 110 | Object Resolution(μm) | 20.1 | ||||
| Depth of Field(mm) | 8 | Distortion Typical(% max) | 0.03 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 111.1 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 3 | ||||
| Filter Screw Size | M25x0.5 | ||||||
|
Field of View (mm x mm) |
|||||||
| 1/2"(6.4x4.8) | 21.3x16.0 | ||||||
