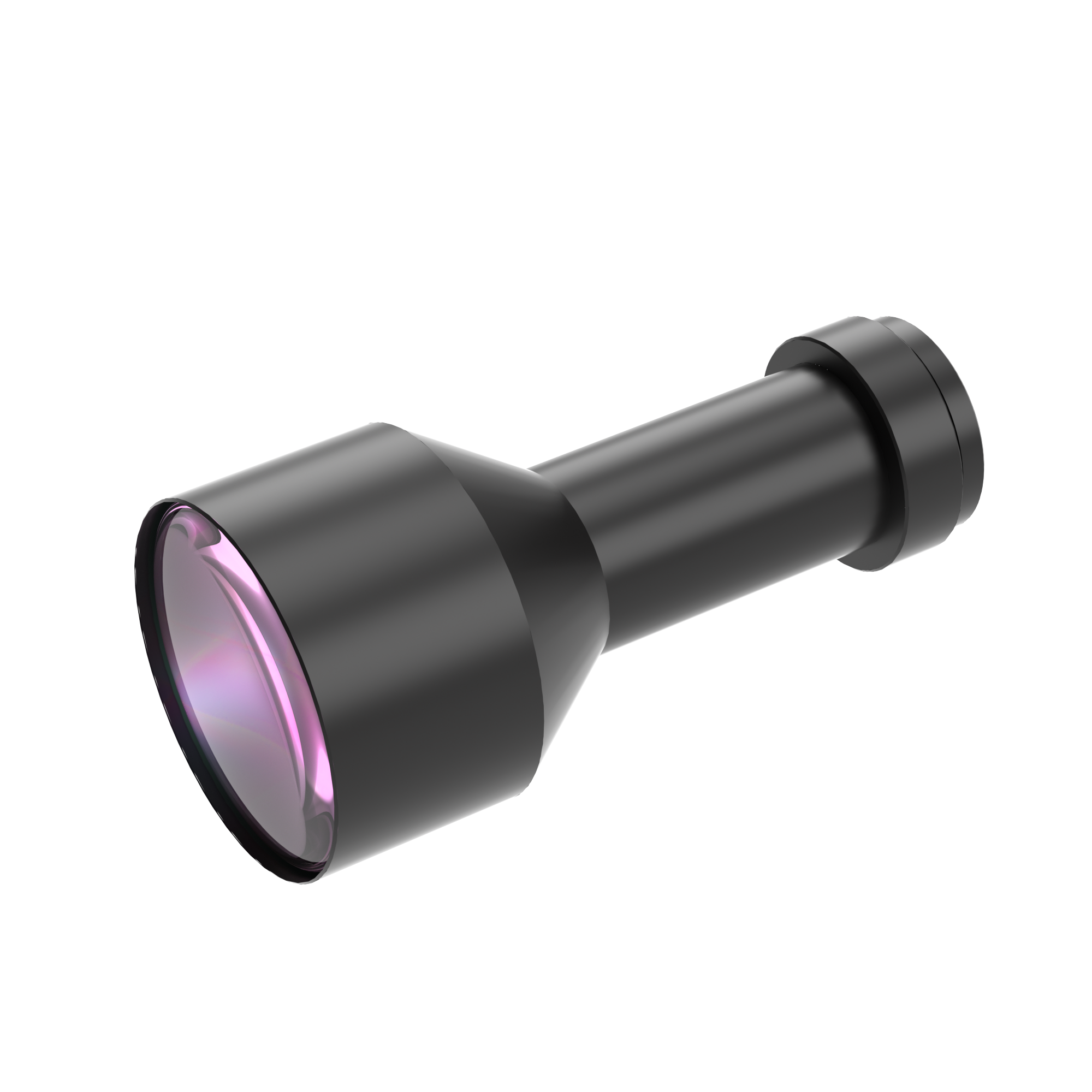

| Model NO. | WH02-180A-120 | Image Circle Diameter (Φmm) | 8(1/2") | ||||
| Magnification(x) | 0.2 | Working Distance(mm) | 180 | ||||
| NA | 0.0095 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 10.6 | ||||
| MTF30 (lp/mm) | 148 | Object Resolution(μm) | 35.2 | ||||
| Depth of Field(mm) | 6 | Distortion Typical(% max) | 0.08 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 85.3 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 7 | ||||
| Filter Screw Size | M38x0.5 | ||||||
| Field of View (mm x mm) | |||||||
| 1/4"(3.2x2.4) | 16.0x12.0 | ||||||
| 1/3"(4.8x3.6) | 24.0x18.0 | ||||||
| 1/2"(6.4x4.8) | 32.0x24.0 | ||||||
