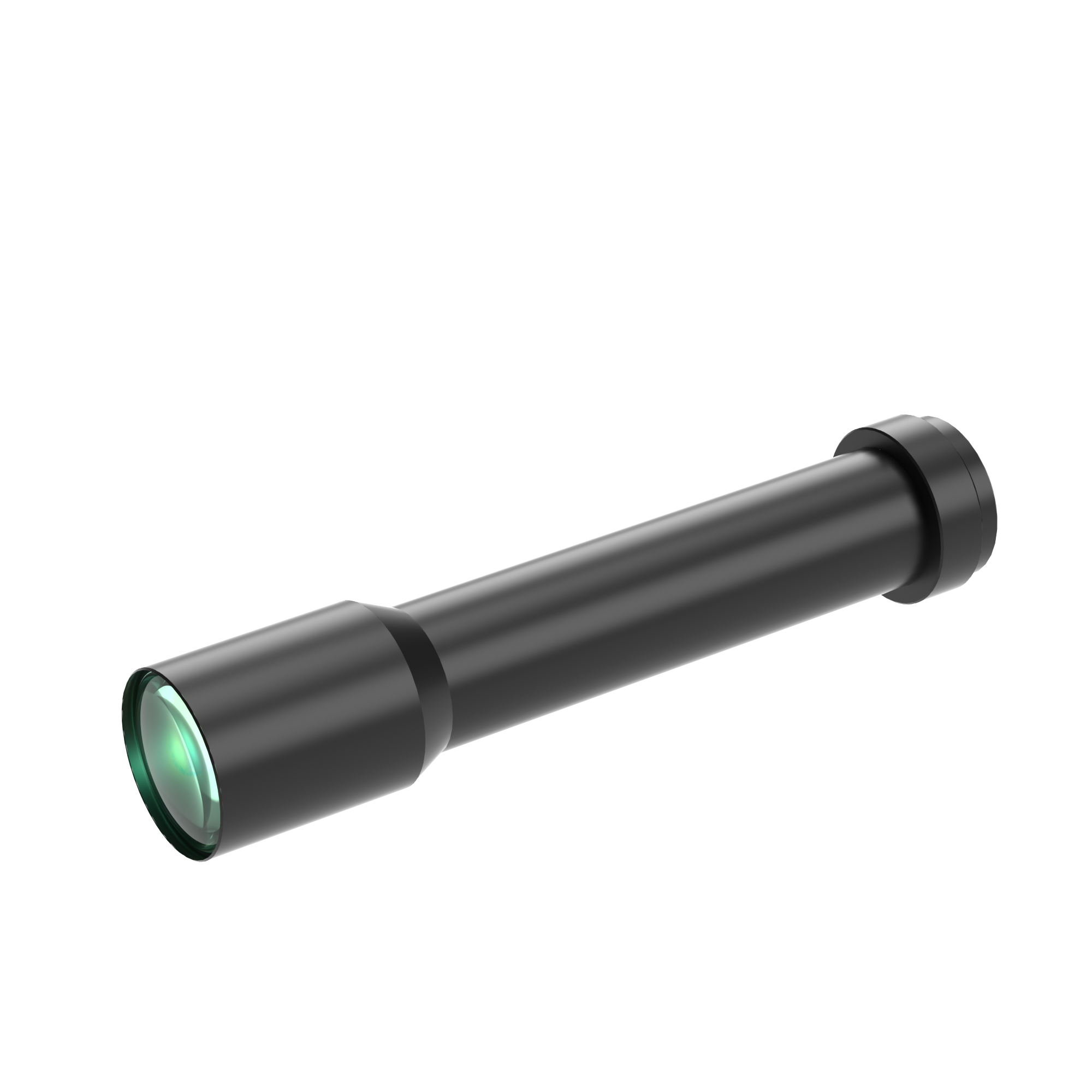

| Model NO. | WH025-340A-120 | Image Circle Diameter (Φmm) | 8(1/2") | ||||
| Magnification(x) | 0.25 | Working Distance(mm) | 340 | ||||
| NA | 0.0138 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 9 | ||||
| MTF30 (lp/mm) | 100 | Object Resolution(μm) | 24.3 | ||||
| Depth of Field(mm) | 11.5 | Distortion Typical(% max) | 0.02 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 131.9 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 5 | ||||
| Filter Screw Size | M25x0.5 | ||||||
| Field of View (mm x mm) | |||||||
| 1/3"(4.8x3.6) | 19.2x14.4 | ||||||
| 1/2"(6.4x4.8) | 25.6x19.2 | ||||||
