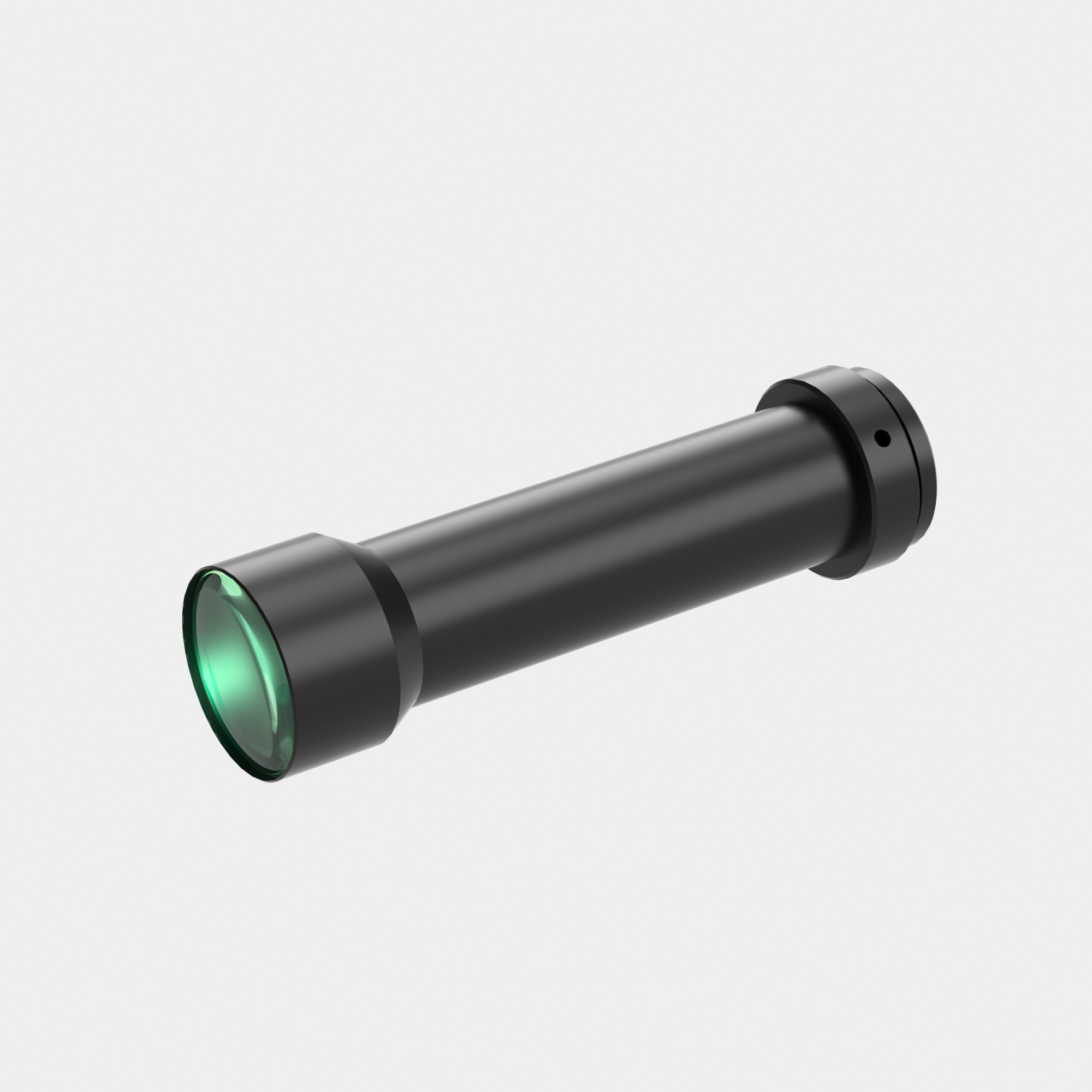

| Model NO. | WH016-525A-120 | Image Circle Diameter (Φmm) | 8(1/2") | ||||
| Magnification(x) | 0.16 | Working Distance(mm) | 525 | ||||
| NA | 0.0044 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 18.3 | ||||
| MTF30 (lp/mm) | 58 | Object Resolution(μm) | 76.8 | ||||
| Depth of Field(mm) | 57.2 | Distortion Typical(% max) | <0.1 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 96.5 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 12 | ||||
| Filter Screw Size | M25x0.5 | ||||||
| Field of View (mm x mm) | |||||||
| 1/4"(3.2x2.4) | 20.0x15.0 | ||||||
| 1/3"(4.8x3.6) | 30.0x22.5 | ||||||
| 1/2"(6.4x4.8) | 40.0x30.0 | ||||||
