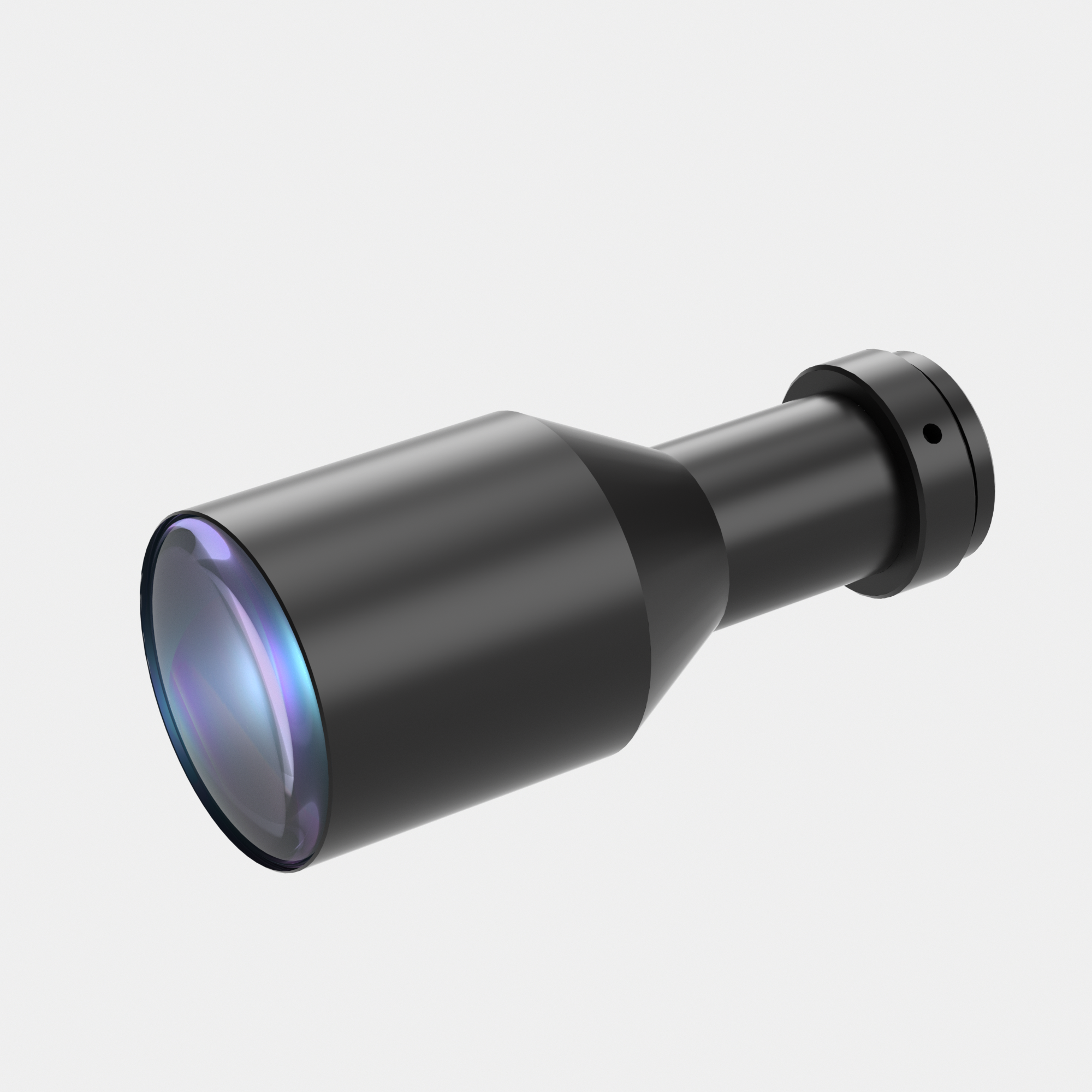

1/2" 0.12X Industrial Lenses | WH012-340A COOLENS®
$600.00 USD
-
Return & Refund Policy
-
Fast Delivery
-
One-on-one service
-
Reliable Manufacturer
-
Worldwide shipping
-
Multiple payment methods
| Model NO. | WH012-340A | Image Circle Diameter (Φmm) | 8(1/2") | ||||
| Magnification(x) | 0.12 | Working Distance(mm) | 340 | ||||
| NA | 0.0060 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 10 | ||||
| MTF30 (lp/mm) | 93 | Object Resolution(μm) | 55.9 | ||||
| Depth of Field(mm) | 55.6 | Distortion Typical(% max) | 0.17 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 89.6 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 20 | ||||
| Filter Screw Size | M35x0.5 | ||||||
| Field of View (mm x mm) | |||||||
| 1/4"(3.2x2.4) | 26.7x20.0 | ||||||
| 1/3"(4.8x3.6) | 40.0x30.0 | ||||||
| 1/2"(6.4x4.8) | 53.0x40.0 | ||||||
Dimensions
Naming Rule
