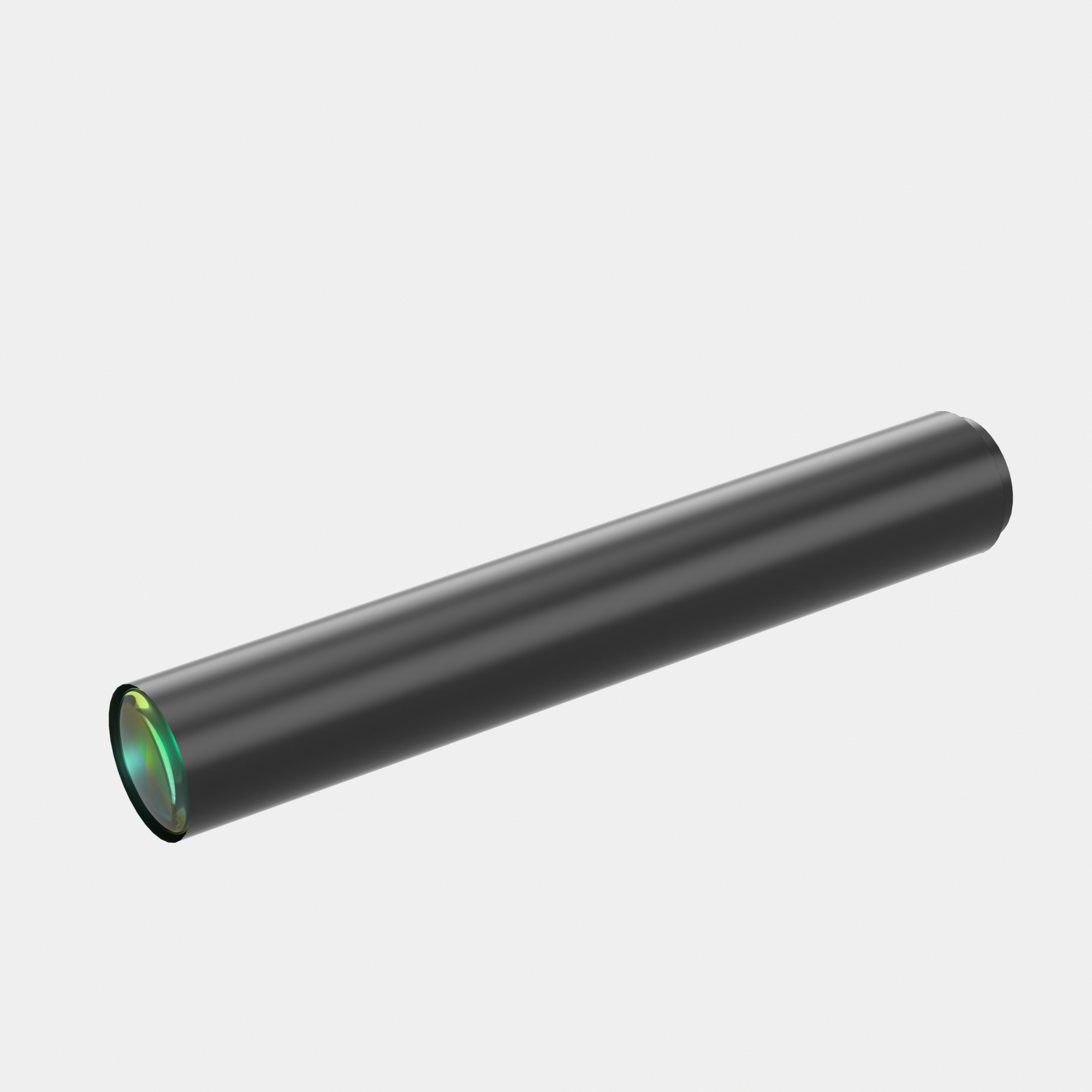

| Model NO. | WH10-620A-110 | Image Circle Diameter (Φmm) | 16(1") | ||||
| Magnification(x) | 1 | Working Distance(mm) | 620 | ||||
| NA | 0.0132 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 38.7 | ||||
| MTF30 (lp/mm) | 23 | Object Resolution(μm) | 25.4 | ||||
| Depth of Field(mm) | 3.1 | Distortion Typical(% max) | 0.3 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 185.7 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 3 | ||||
| Filter Screw Size | / | ||||||
|
Field of View (mm x mm) |
|||||||
| 1/1.8"(7.13x5.37) | 7.13x5.37 | ||||||
| 2/3"(8.45x7.1) | 8.45x7.1 | ||||||
| 1"(12.43x9.83) | 12.43x9.83 | ||||||
