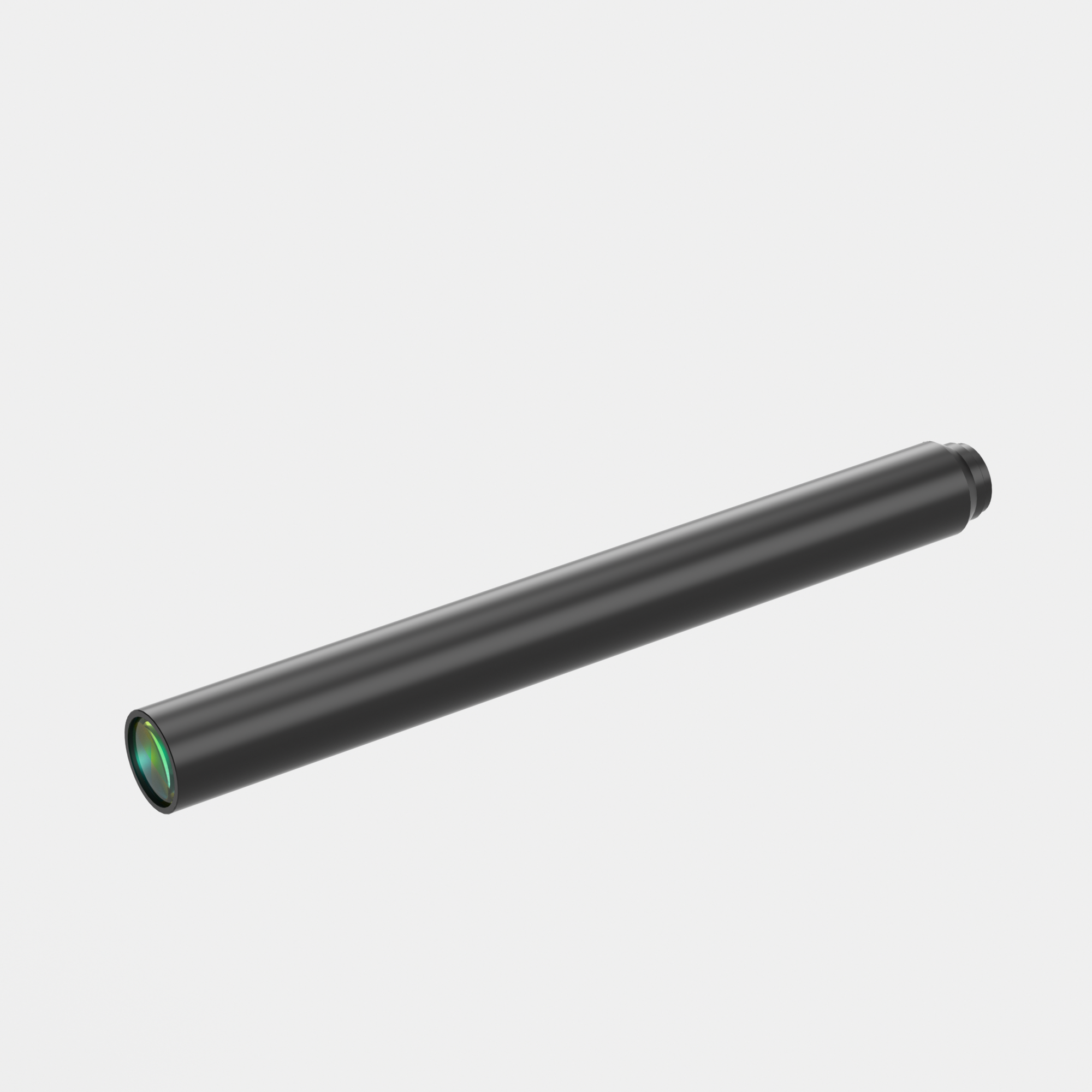

| Model NO. | WH10-270A-110D | Image Circle Diameter (Φmm) | 16(1") | ||||
| Magnification(x) | 1 | Working Distance(mm) | 270 | ||||
| NA | 0.0281 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 17.8 | ||||
| MTF30 (lp/mm) | 50 | Object Resolution(μm) | 11.9 | ||||
| Depth of Field(mm) | 1.4 | Distortion Typical(% max) | 0.1 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 319.6 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 1 | ||||
| Filter Screw Size | M30x0.5 | ||||||
|
Field of View (mm x mm) |
|||||||
| 1/1.8"(7.13x5.37) | 7.13x5.37 | ||||||
| 2/3"(8.8x6.6) | 8.8x6.6 | ||||||
| 1"(12.43x9.83) | 12.43x9.83 | ||||||
