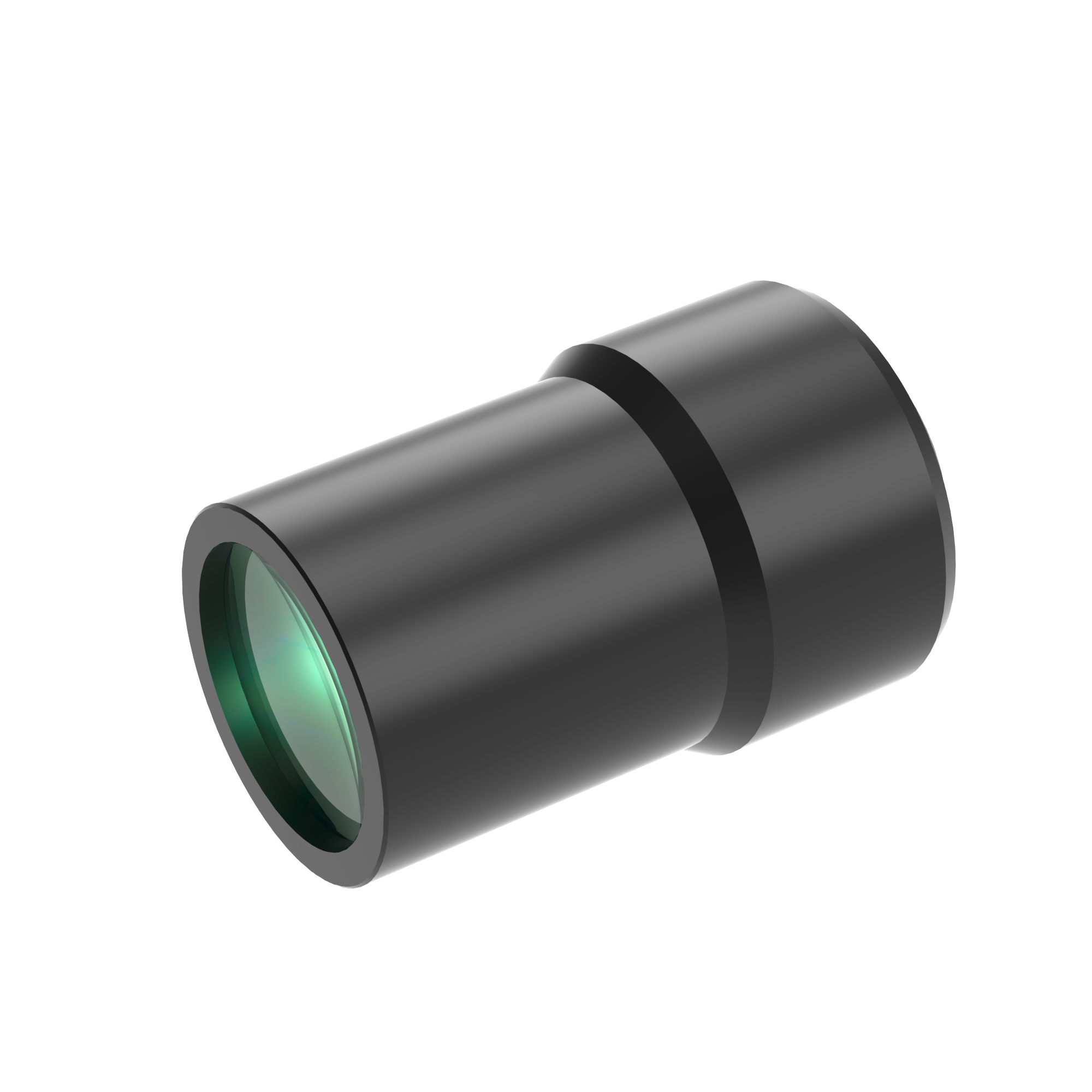

| Model NO. | WWT118-035-161 | Image Circle Diameter (Φmm) | 9(1/1.8") | ||||
| Focal Length(mm) | 46.07 | Magnification(x) | 0.35 | ||||
| Working Distance(mm) | 161 | MTF30 (lp/mm) | 106 | ||||
| Type | Fixed Magnification Focal Length | Mount | C | ||||
| NA | 0.0269 | Best Aperture(f/#) | 6.5 | ||||
| Object Resolution(μm) | 15.5 | Depth of Field(mm) | 6.8 | ||||
| TV Distortion | 0.02 | Length (mm) | 59.8 | ||||
| Measured Depth of Field (mm) | 1.4 | Filter Screw Size | M30x0.5 | ||||
| Field of View (mm x mm) | |||||||
| 1/1.8”（7.37x4.92） | 21.1x14.1 | ||||||
