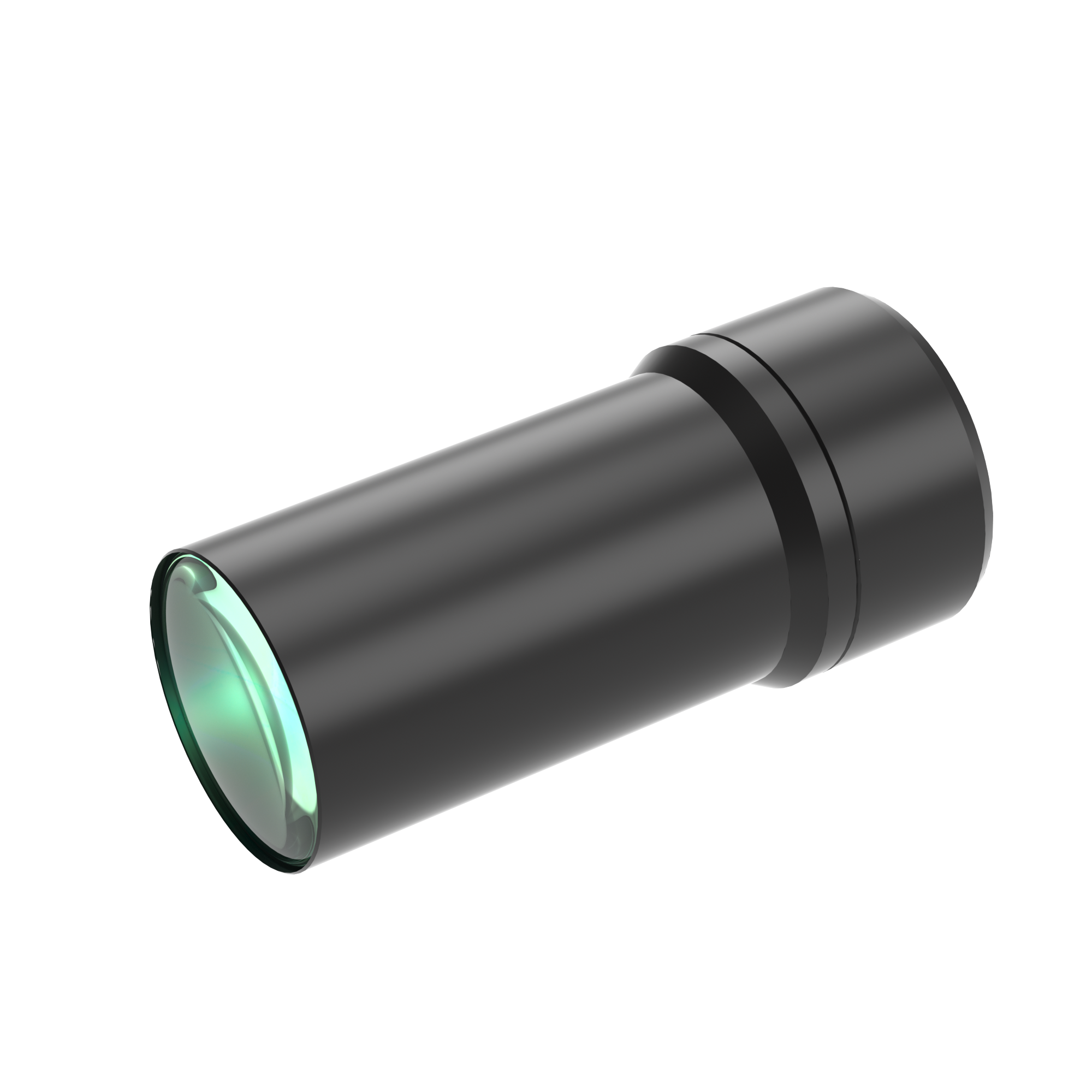

| Model NO. | WWT118-09-81 | Image Circle Diameter (Φmm) | 9(1/1.8") | ||||
| Focal Length(mm) | 45.63 | Magnification(x) | 0.9 | ||||
| Working Distance(mm) | 81 | MTF30 (lp/mm) | 117 | ||||
| Type | Fixed Magnification Focal Length | Mount | C | ||||
| NA | 0.0561 | Best Aperture(f/#) | 8 | ||||
| Object Resolution(μm) | 6 | Depth of Field(mm) | 0.8 | ||||
| TV Distortion | 0.0271 | Length (mm) | 84.5 | ||||
| Measured Depth of Field (mm) | 0.4 | Filter Screw Size | M30x0.5 | ||||
| Field of View (mm x mm) | |||||||
| 1/1.8”（7.13x5.37） | 7.9x5.97 | ||||||
| 1/1.8”（7.43x4.9） | 8.3x5.4 | ||||||
