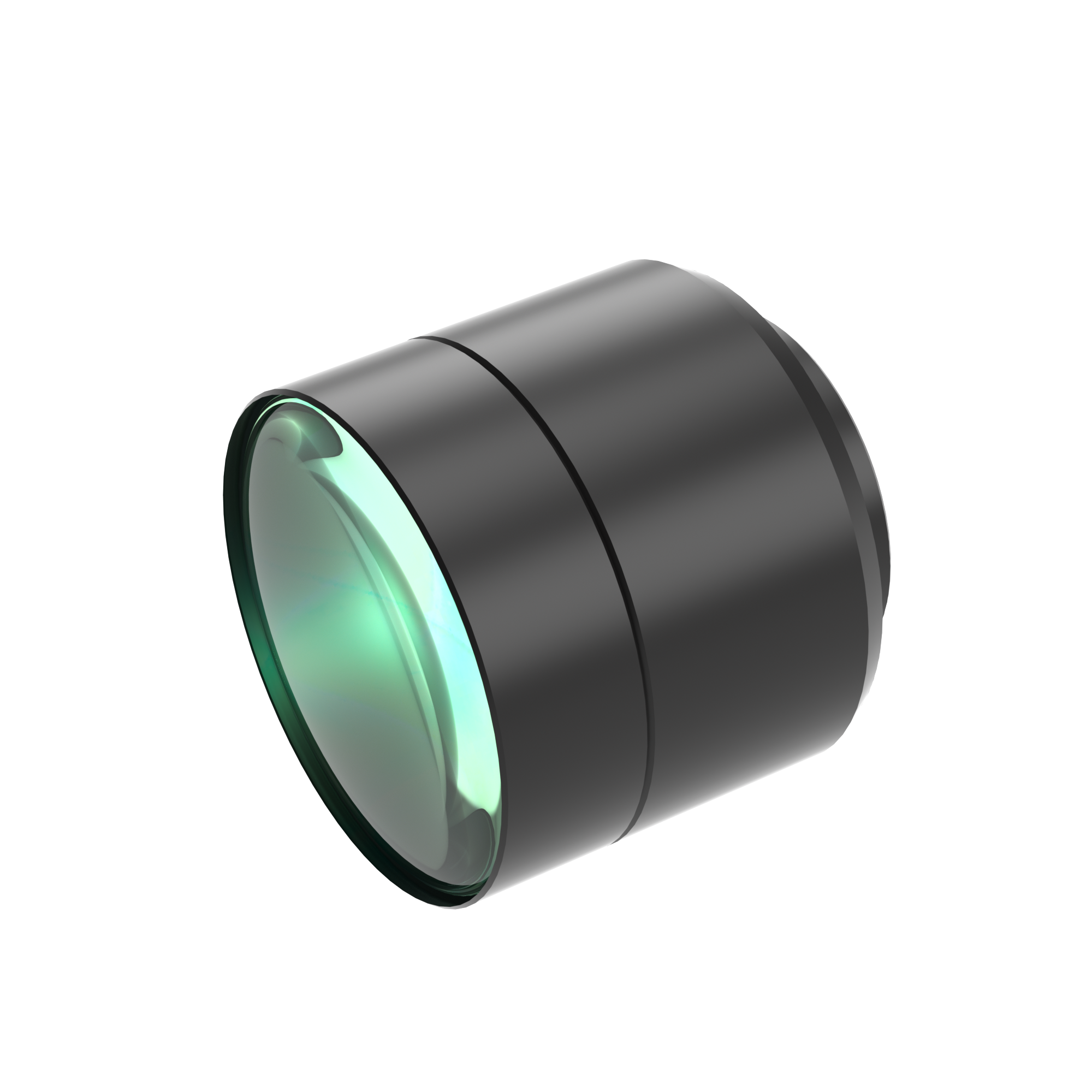

| Model NO. | WWT118-02-130 | Image Circle Diameter (Φmm) | 9(1/1.8") | ||||
| Focal Length(mm) | 24.99 | Magnification(x) | 0.2 | ||||
| Working Distance(mm) | 130 | MTF30 (lp/mm) | 152 | ||||
| Type | Fixed Magnification Focal Length | Mount | C | ||||
| NA | 0.0179 | Best Aperture(f/#) | 5.6 | ||||
| Object Resolution(μm) | 18.8 | Depth of Field(mm) | 11.2 | ||||
| TV Distortion | -0.037 | Length (mm) | 30 | ||||
| Measured Depth of Field (mm) | 4.8 | Filter Screw Size | M30x0.5 | ||||
| Field of View (mm x mm) | |||||||
| 1/1.8”（7.13x5.37） | 35.7x26.9 | ||||||
| 1/1.8”（7.43x4.9） | 37.2x24.5 | ||||||
