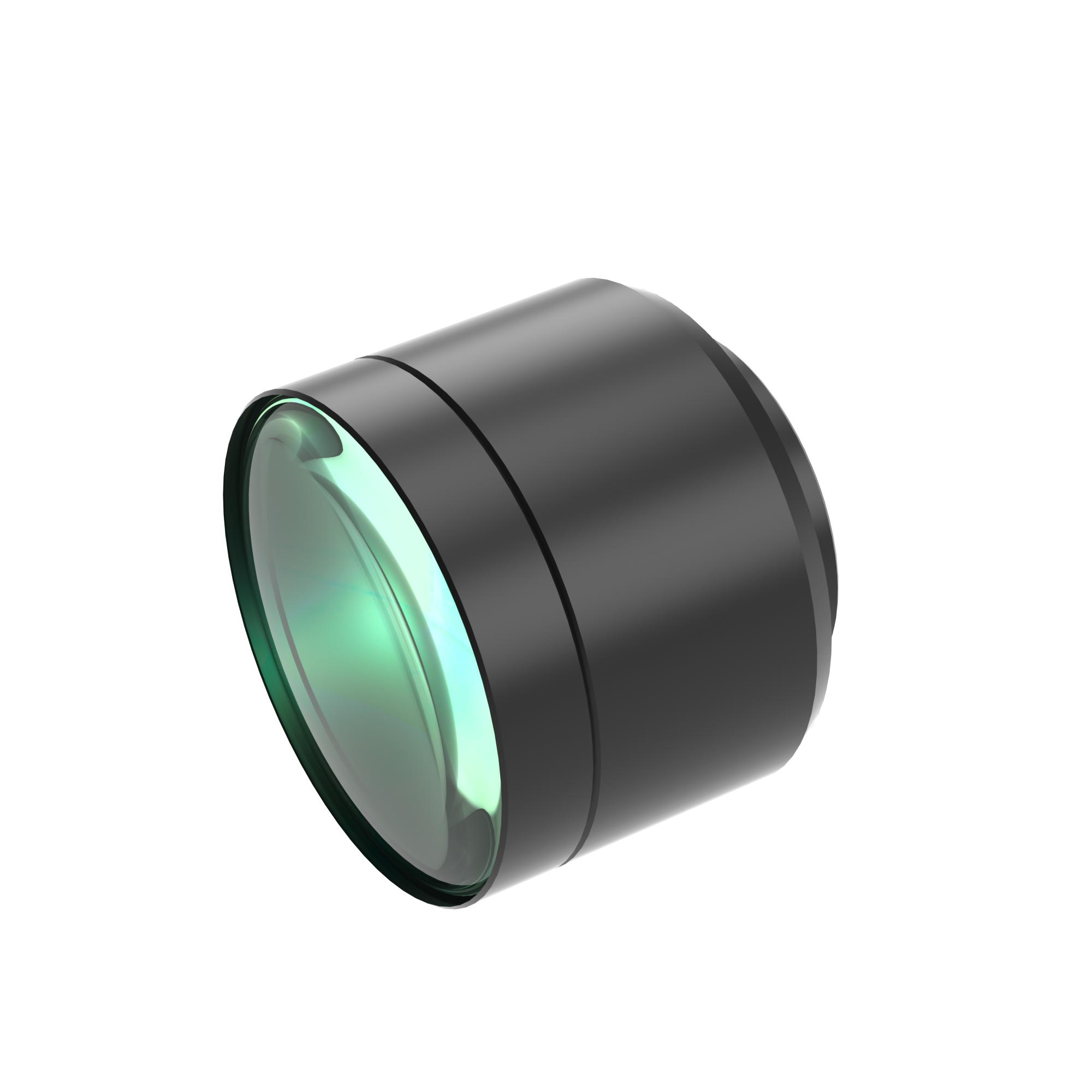

1/1.8" 15.89mm Fixed Magnification Focal Length Lens | WWT118-03-39 COOLENS®
$95.00 USD
-
Return & Refund Policy
-
Fast Delivery
-
One-on-one service
-
Reliable Manufacturer
-
Worldwide shipping
-
Multiple payment methods
| Model NO. | WWT118-03-39 | Image Circle Diameter (Φmm) | 9(1/1.8") | ||||
| Focal Length(mm) | 15.89 | Magnification(x) | 0.3 | ||||
| Working Distance(mm) | 39 | MTF30 (lp/mm) | 119.8 | ||||
| Type | Fixed Magnification Focal Length | Mount | C | ||||
| NA | 0.025 | Best Aperture(f/#) | 6 | ||||
| Object Resolution(μm) | 13.4 | Depth of Field(mm) | 5.3 | ||||
| TV Distortion | -0.2572 | Length (mm) | 25.9 | ||||
| Measured Depth of Field (mm) | 1.6 | Filter Screw Size | M30x0.5 | ||||
| Field of View (mm x mm) | |||||||
| 1/1.8”（7.13x5.37） | 23.8x17.9 | ||||||
| 1/1.8”（7.43x4.9） | 24.8x16.3 | ||||||
Dimensions
Naming Rule
