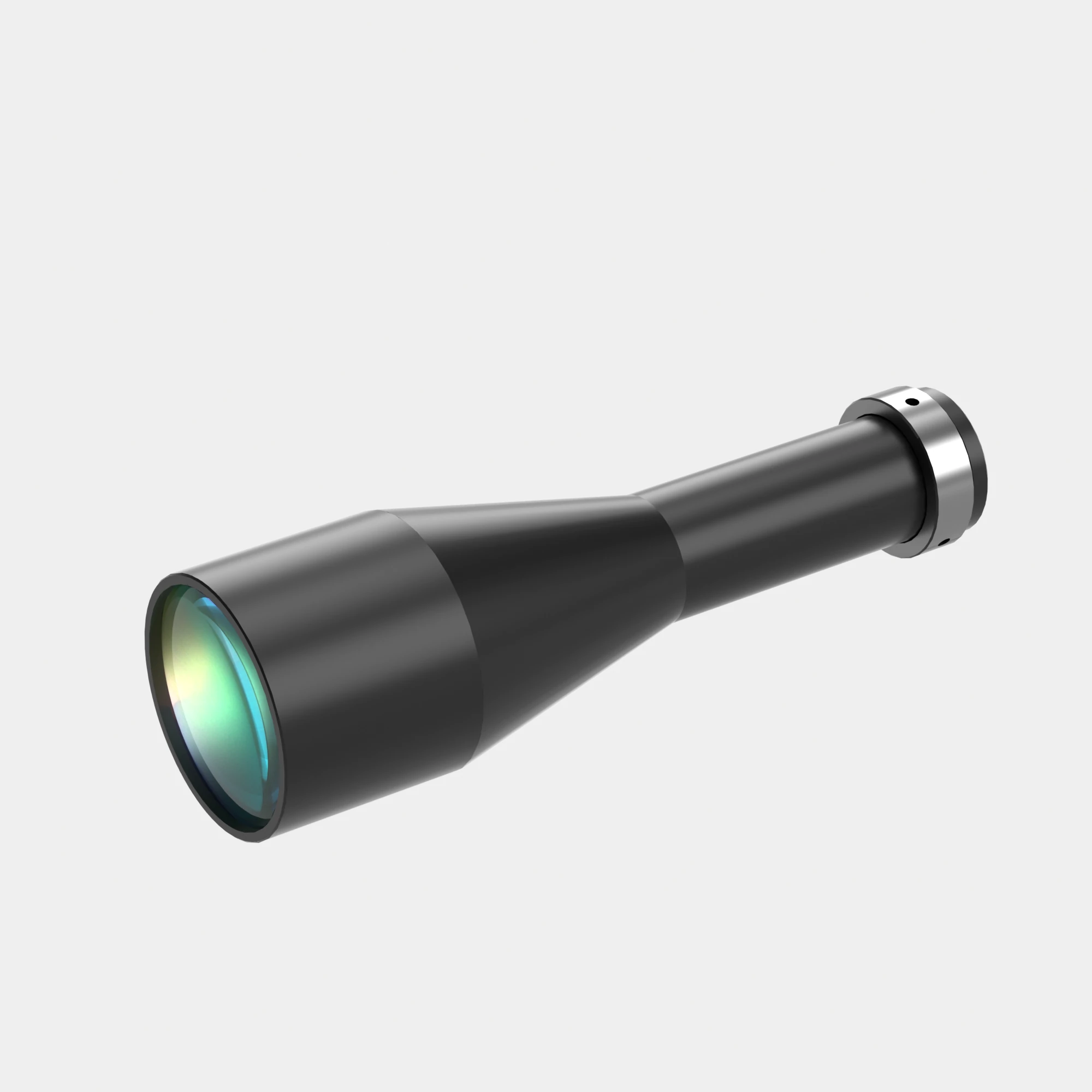

1/1.8" 0.3X Telecentric Lenses | WWH03-110AT COOLENS®
$494.00 USD
-
Return & Refund Policy
-
Fast Delivery
-
One-on-one service
-
Reliable Manufacturer
-
Worldwide shipping
-
Multiple payment methods
| Model NO. | WWH03-110AT | Image Circle Diameter (Φmm) | 9(1/1.8") | ||||
| Magnification(x) | 0.3 | Working Distance(mm) | 110 | ||||
| NA | 0.0167 | Type | Telecentric | ||||
| Mount | C | Best Aperture(f/#) | 9 | ||||
| MTF30 (lp/mm) | 100 | Object Resolution(μm) | 20.1 | ||||
| Depth of Field(mm) | 8 | Distortion Typical(% max) | <0.1 | ||||
| Telecentricity Typical (°max) | <0.1 | Length (mm) | 137.1 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 3 | ||||
| Filter Screw Size | M40x0.5 | ||||||
| Field of View (mm x mm) | |||||||
| 1/3"(4.8x3.6) | 16.0x12.0 | ||||||
| 1/2"(6.4x4.8) | 21.3x16.0 | ||||||
| 1/1.8"(7.13x5.37) | 23.8x17.9 | ||||||
Dimensions
Naming Rule
